What Makes F4BM PCBs the Best Choice for RF and Microwave Applications?
June 25, 2025
Introduction to F4BM High Frequency PCBs
Wangling's F4BM high frequency PCB materials are premium PTFE glass fiber cloth copper clad laminates, meticulously crafted by combining glass fiber cloth, PTFE resin, and PTFE film. These advanced laminates deliver superior electrical performance compared to standard F4B materials, making them ideal for high-frequency applications.
Key Advantages of F4BM PCBs:
Wider range of dielectric constants (DK): 2.17 to 3.0
Ultra-low dielectric loss (DF): 0.001 to 0.0018
Enhanced insulation resistance and stability
PIM-free performance with forward-rotating ED copper foil
Cost-effective replacement for imported high-frequency PCB materials
Features of F4BM High Frequency PCBs
1.Customizable Electrical Properties
Choose from a broad DK range (2.17–3.0) to match your design needs.
Low dissipation factor (0.001–0.0018) ensures minimal signal loss.
2.Versatile Thickness & Size Options
Thickness range: 0.8mm to 12.0mm (including 1.524mm, 1.575mm)
Panel sizes up to 400mm × 500mm for flexible design applications.
3. Cost-Effective for Mass Production
Optimized for commercial use and large-scale manufacturing.

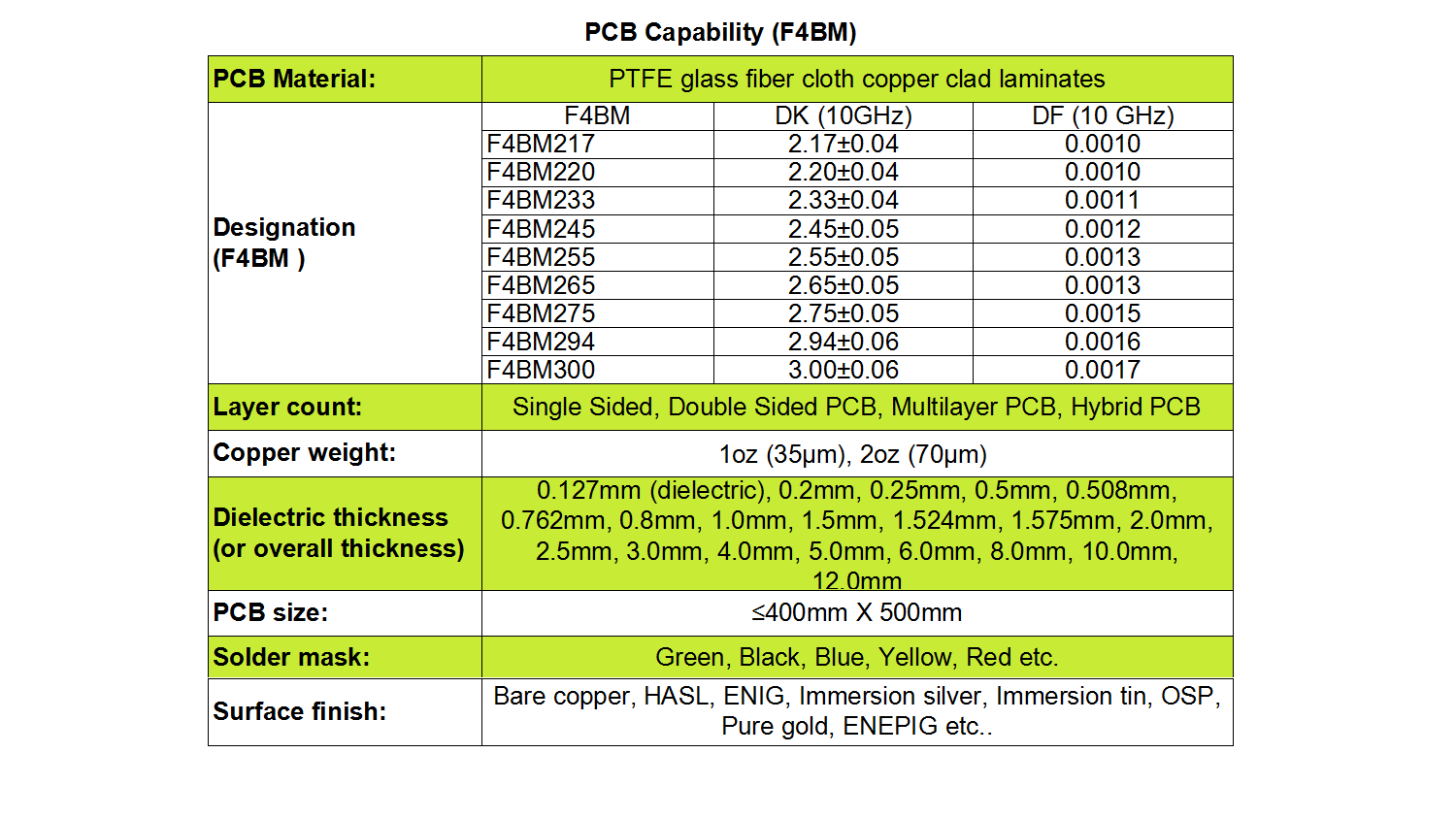

PCB Manufacturing Capabilities
Layer Configurations:
Single-sided, Double-sided, Multilayer, and Hybrid PCBs
Copper Weight Options:
1oz (35µm) and 2oz (70µm)
Surface Finishes:
HASL, ENIG, Immersion Silver, Immersion Tin, OSP, Pure Gold, ENEPIG, and more
Solder Mask Colors:
Green, Black, Blue, Yellow, Red, and other customizable options
Applications of F4BM High Frequency PCBs
F4BM PCBs are widely used in high-frequency and RF applications, including:
Power dividers, couplers, and combiners
Feed networks & phased array antennas
Satellite communications & base station antennas
Radar systems & military-grade electronics
Why Choose F4BM PCBs?
Superior high-frequency performance
Stable dielectric properties
Cost-effective alternative to imported materials
Customizable for diverse industry needs
For high-frequency PCB solutions, trust Wangling’s F4BM materials to deliver unmatched reliability and performance. Contact us today for your PCB requirements!
