8-Layer HDI Hybrid PCB RO4003C S1000-2M
Material:Rogers RO4003C + S1000-2M (FR-4 Tg 170°C) Hybrid
MOQ:1PCS
Packaging:Vacuum / Anti-static Packaging
Delivery Period:7-13 working days
Payment Method:T/T, Paypal

* PCBs are custom-made, picture & parameters for reference

Advanced 8-Layer HDI Hybrid PCBs Utilizing RO4003C and S1000-2M for High-Frequency Applications


(Custom PCBs are tailored products; the images and specifications provided are for reference only.)


Introduction of RO4003C

Rogers RO4003C materials are woven glass reinforced hydrocarbon/ceramics that provide the high-frequency performance of PTFE with the manufacturability of epoxy/glass. This low-loss material is suitable for RF microwave circuits and matching networks, allowing for competitive circuit fabrication.


RO4003C laminates are available in various configurations, using both 1080 and 1674 glass fabric styles, all meeting strict electrical performance specifications. The material is non-brominated and not UL 94 V-0 rated.


Features of RO4003C

Dielectric Constant: 3.38 ± 0.05 at 10 GHz
Dissipation Factor: 0.0027 at 10 GHz
Thermal Conductivity: 0.71 W/m/K
Thermal Coefficient of Dielectric Constant: +40 ppm/°C (range -50°C to 150°C)
CTE Matched to Copper: X-axis: 11 ppm/°C, Y-axis: 14 ppm/°C
Low Z-axis CTE: 46 ppm/°C
Glass Transition Temperature (Tg): > 280°C
Low Moisture Absorption: 0.06%


Features of S1000-2M

Low Z-axis CTE of 2.4 ppm/°C, excellent through-hole reliability
High Tg of 185°C, suitable for lead-free applications
Low moisture absorption of 0.08%, humidity resistance
T260: 60 minutes, T288: 30 minutes
UL 94-V0 flammability rating

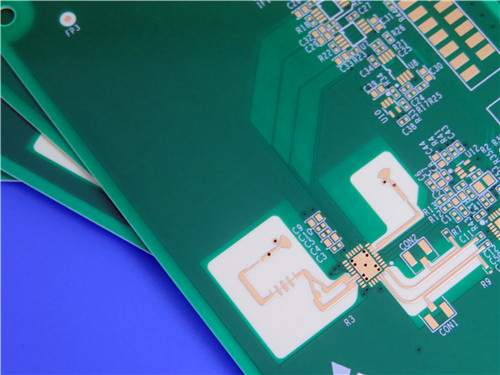

8-Layer HDI Hybrid PCB


Basic PCB Specifications

SpecificationDetails
Board Type8 layers
Material TypeRO4003C + FR-4 Tg 170°C
Solder MaskBoth sides, Green
Silkscreen PrintTop side, White
Surface FinishENIG (Electroless Nickel Immersion Gold)
Total Board Thickness1.5mm ± 10%
Board Size87.5mm x 40.6mm (1 PCS)
Minimum Hole Size0.2mm
Solder Mask Thickness10µm
Minimum Dielectric Thickness100µm
Minimum Trace Line Width115µm
Minimum Spacing135µm
Blind ViasYes, between L1-L2 and L7-L8
Buried ViasYes, between L2-L7
Back Drilled ViasYes, between L1-L6
Impedance Controlled50 ohm, differential pairs, Top layer, 4mil/4mil trace/gap, reference layer 2
100 ohm, differential pairs, Top layer, 5mil/6mil trace/gap, reference layer 2
50 ohm, single-ended, Top layer, 6mil trace, reference layer 2
Via FillingAll 0.3mm vias filled and capped per IPC 4761 Type VII
Edge PlatingRequired

PCB Stack-up (Component Side at Top)

TypeLayer No.Thickness (µm)Specification
Copper14518µm base copper + 25µm plating
RO4003CCore203IPC-4101/24
Copper238
FR-4Prepreg100IPC-4101/24
Copper317
FR-4 S1000-2MCore240IPC-4101/24
Copper435
FR-4Prepreg100IPC-4101/24
Copper535
FR-4 S1000-2MCore240IPC-4101/24
Copper617
FR-4Prepreg100IPC-4101/24
Copper738
RO4003CCore200IPC-4101/24
Copper84518µm base copper + 25µm plating

PCB Statistics

Components: 41
Total Pads: 73
Through Hole Pads: 35
Top SMT Pads: 26
Bottom SMT Pads: 12
Vias: 57
Nets: 6


Artwork and Standards Information

Type of Artwork Supplied: Gerber RS-274-X
Accepted Standard: IPC-Class-2
Availability: Worldwide


Typical Applications

Cellular Base Station Antennas
RF Identification Tags
Automotive Radar and Sensors
LNBs for Direct Broadcast Satellites
Computing, Communication, and Automotive Electronics
