Rogers TMM10 1-Layer OSP PCB
PCB Material:Rogers TMM10 / 1.6mm (60mil)
MOQ:1PCS
Packaging:Vacuum / Anti-static Packaging
Delivery Period:7-13 working days
Payment Method:T/T, Paypal


Rogers TMM10 1-Layer 60mil OSP PCB – High Frequency Microwave Applications


1. Introduction to Rogers TMM10 PCB

TMM® 10 thermoset microwave materials offer the benefits of both PTFE and ceramic based substrates, but are not limited by the same mechanical properties and production techniques. TMM10 laminates combine many of the desirable features of ceramic substrates with the ease of soft substrate processing techniques.


TMM10 laminates have an exceptionally low thermal coefficient of dielectric constant, typically less than 30 ppm/°C. The material's isotropic coefficients of thermal expansion, very closely matched to copper, allow for production of high reliability plated through holes, and low etch shrinkage values. This 1-layer (single-sided) rigid PCB is constructed entirely with TMM10 as the core material, making it ideal for chip testers, dielectric polarizers, satellite communication, and GPS antenna applications.

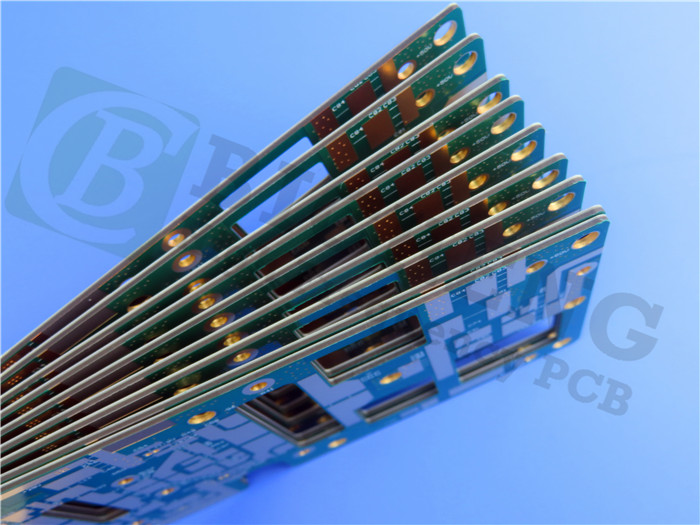

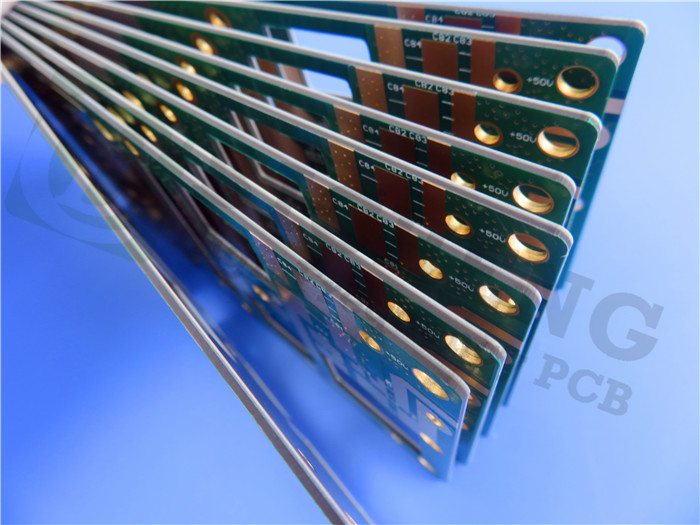

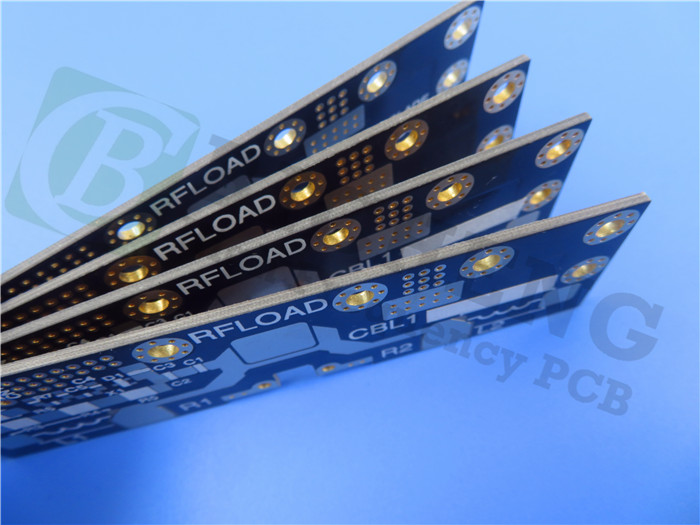

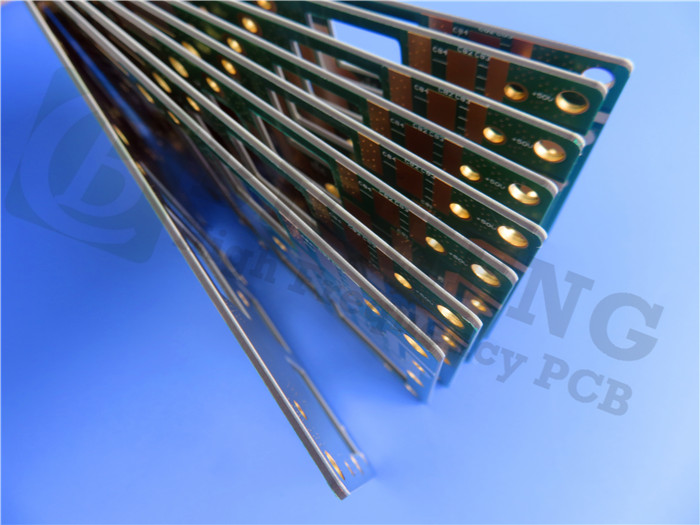

TMM10 1-Layer PCB


2. Key Features of Rogers TMM10 PCB

  • Dielectric Constant (Dk): 9.20 ± 0.230 at 10 GHz

  • Dissipation Factor: 0.0022 at 10 GHz

  • Thermal coefficient of Dk: -38 ppm/°K

  • CTE matched to copper (21/21/20 ppm/K)

  • Decomposition Temperature (Td): 425 °C TGA

  • Thermal Conductivity: 0.76 W/m/K

  • Mechanical properties resist creep and cold flow

  • Resistant to process chemicals, reducing damage during fabrication

  • Material does not require sodium napthanate treatment prior to electroless plating

  • Based on thermoset resin, allowing for reliable wire-bonding


3. Benefits of Rogers TMM10 PCB

  • Combines benefits of ceramic and PTFE substrates without specialized production techniques

  • Exceptional Dk uniformity (9.20 ± 0.23) for consistent impedance control

  • Low dissipation factor (0.0022) ensures high performance at microwave frequencies

  • CTE matched to copper enables high reliability plated through holes

  • High thermal conductivity (0.76 W/m/K) facilitates heat removal

  • Thermoset resin does not soften when heated, preventing pad lifting during wire bonding

  • Resistant to etchants and solvents used in PCB production

  • Can replace alumina substrates in many applications


4. PCB Construction Details

ItemSpecification
Base materialRogers TMM10 (ceramic thermoset polymer composite)
Layer countSingle Sided (1-layer)
Board dimensions99.05mm x 56.9mm = 1 PCS, ±0.15mm
Minimum Trace/Space4/5 mils
Minimum Hole Size0.35mm
Blind viasNo
Finished board thickness1.6mm (60mil core)
Finished Cu weight1 oz (35 μm / 1.4 mils) outer layers
Via plating thickness20 μm
Surface finishOSP
Top SilkscreenNo
Bottom SilkscreenNo
Top Solder MaskNo
Bottom Solder MaskNo
100% Electrical testUsed prior to shipment

5. PCB Stackup (1-Layer Rigid Structure)

LayerMaterialThickness
Copper_layer_1 (Top)Copper35 μm (1 oz)
DielectricRogers TMM10 Core1.524 mm (60mil)

6. PCB Statistics

ParameterValue
Components14
Total Pads48
Thru Hole Pads26
Top SMT Pads22
Bottom SMT Pads0
Vias27
Nets2

7. Rogers TMM10 Material – Product Introduction

TMM® thermoset microwave materials are ceramic, hydrocarbon, thermoset polymer composites designed for high plated-thru-hole reliability stripline and microstrip applications. TMM laminates are available in a wide range of dielectric constants and claddings.


The electrical and mechanical properties of TMM laminates combine many of the benefits of both ceramic and traditional PTFE microwave circuit laminates, without requiring the specialized production techniques common to these materials. TMM laminates do not require a sodium napthanate treatment prior to electroless plating.


TMM laminates are based on thermoset resins, and do not soften when heated. As a result, wire bonding of component leads to circuit traces can be performed without concerns of pad lifting or substrate deformation. TMM laminates combine many of the desirable features of ceramic substrates with the ease of soft substrate processing techniques.


TMM10 Material


8. Features and Benefits Summary

FeatureBenefit
Dk 9.20 ± 0.23 @ 10 GHzExceptional uniformity and tight tolerance for consistent impedance
Df 0.0022 @ 10 GHzLow loss for high-frequency microwave designs
Thermal coefficient of Dk: -38 ppm/°KStable electrical performance over temperature
CTE matched to copper (21/21/20 ppm/K)High reliability plated through holes
Thermal conductivity 0.76 W/m/KEfficient heat removal, approximately 2x traditional PTFE/ceramic
Thermoset resinReliable wire bonding, no pad lifting, no softening when heated
Resistant to process chemicalsReduces damage during fabrication and assembly
No sodium napthanate treatment requiredSimplified fabrication process

9. TMM10 Typical Properties (Data Sheet)

PropertyTypical ValueDirectionUnitsConditionTest Method
Electrical Properties
Dielectric Constant (process)9.20 ± 0.230Z10 GHzIPC-TM-650 2.5.5.5
Dielectric Constant (design)9.88 GHz - 40 GHzDifferential Phase Length Method
Dissipation Factor0.0022Z10 GHzIPC-TM-650 2.5.5.5
Thermal Coefficient of Dk-38ppm/°K-55 to +125°CIPC-TM-650 2.5.5.5
Insulation Resistance>2000GohmC/96/60/95ASTM D257
Volume Resistivity2×10⁸Mohm·cmASTM D257
Surface Resistivity4×10⁷MohmASTM D257
Electrical Strength285ZV/milIPC-TM-650 2.5.6.2
Thermal Properties
Decomposition Temperature (Td)425°C TGAASTM D3850
CTE (X-axis)21Xppm/K0-140°CASTM E831 / IPC-TM-650 2.4.41
CTE (Y-axis)21Yppm/K0-140°CASTM E831 / IPC-TM-650 2.4.41
CTE (Z-axis)20Zppm/K0-140°CASTM E831 / IPC-TM-650 2.4.41
Thermal Conductivity0.76ZW/m/K80°CASTM C518
Mechanical & Physical Properties
Copper Peel Strength (after thermal stress)5.0 (0.9)X,Ylb/inch (N/mm)after solder float 1 oz EDCIPC-TM-650 2.4.8
Flexural Strength (MD/CMD)13.62X,YkpsiAASTM D790
Flexural Modulus (MD/CMD)1.79X,YMpsiAASTM D790
Moisture Absorption (1.27mm)0.09%D/24/23ASTM D570
Moisture Absorption (3.18mm)0.20%D/24/23ASTM D570
Specific Gravity2.77AASTM D792
Specific Heat Capacity0.74J/g/KACalculated
Lead-Free Process CompatibleYes

10. Primary Application Areas

  • Chip testers

  • Dielectric polarizers and lenses

  • Satellite communication systems

  • GPS antennas and patch antennas

  • RF and microwave circuitry

  • Power amplifiers and combiners

  • Filters and couplers


11. Quality Assurance

  • Type of artwork supplied: Gerber RS-274-X

  • Accepted standard: IPC-Class-2

  • Availability: Worldwide

  • 100% Electrical test prior to shipment


12. Standard Thicknesses, Panel Sizes & Claddings

ParameterOptions
Standard Thicknesses0.015" (0.381mm), 0.025" (0.635mm), 0.030" (0.762mm), 0.050" (1.270mm), 0.060" (1.524mm), 0.075" (1.900mm), 0.100" (2.500mm), 0.125" (3.175mm), 0.150" (3.810mm), 0.200" (5.080mm), 0.250" (6.350mm), 0.500" (12.70mm) +/- 0.0015"
Standard Panel Sizes18" x 12" (457 x 305mm), 18" x 24" (457 x 610mm), additional sizes available
Standard CladdingsEDC: ½ oz (18μm) HH/HH, 1 oz (35μm) H1/H1; additional claddings such as heavy metal and unclad available
