* PCBs are custom-made, picture & parameters for reference

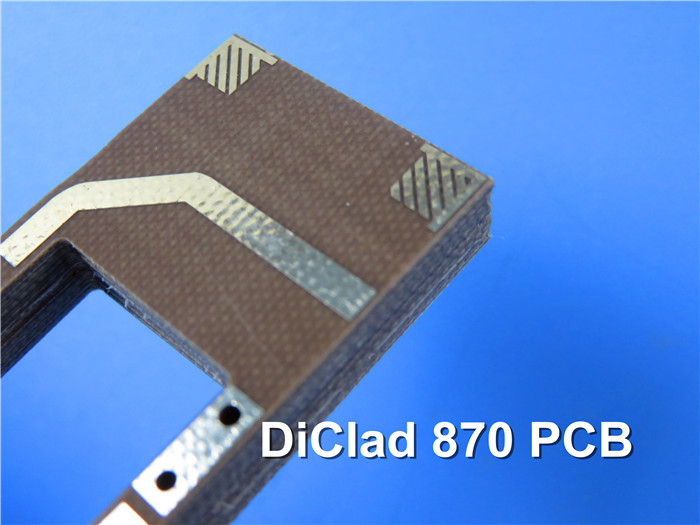

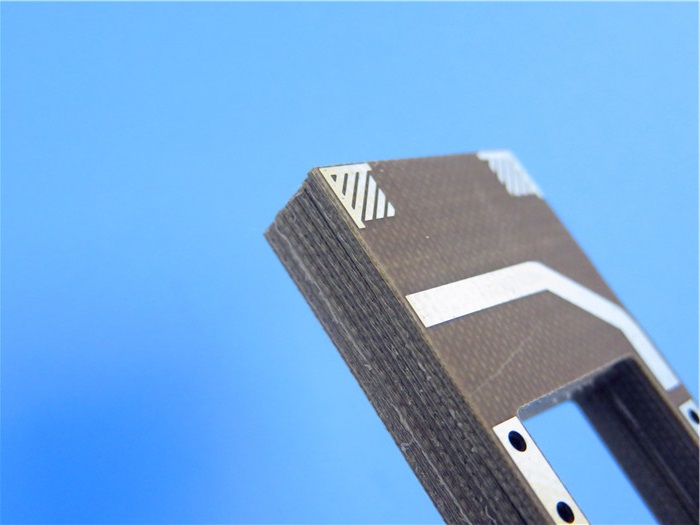

DiClad 870 Microwave PCB - Double-Sided 31mil (0.8mm) Thick with HASL Finish, No Solder Mask, No Silkscreen
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
General Description
The DiClad 870 Microwave PCB is a double-sided circuit board designed for high-frequency microwave applications. Built on 31mil (0.8mm) DiClad 870 substrates, this PCB features a simple design without solder mask or silkscreen. The pads are protected by lead-free hot air solder leveling (HASL) for excellent solderability. The board size is 80mm x 300mm, with a standard 1oz copper finish. All boards are manufactured in compliance with IPC Class II standards and undergo 100% open-short circuit testing before shipment. Each order includes 25 boards vacuum-packed in a 12 kg box for secure delivery.
.jpg)
PCB Parameters
| PCB SIZE | 80mm x 300mm = 1 piece |
|---|---|
| BOARD TYPE | High Frequency PCB, Microwave PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | N/A |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate top layer |
| DiClad 870, 0.787mm | |
| copper ------- 17um(0.5 oz)+plate bot layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 15 mil / 15 mil |
| Minimum / Maximum Holes: | 0.9 mm / 0.9 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 4 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | 1 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | DiClad 870, 0.787mm |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 0.9 mm ±0.12 |
| PLATING AND COATING | |
| Surface Finish | HASL Pb free |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.9mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
.jpg)
Our PCB Capability (2023)
| Parameter | Value |
|---|---|
| Layer Counts | 1-32 |
| Substrate Materials | RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B; AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; IsoClad 917; CLTE, CLTE-XT, CLTE-AT, CLTE-MW; Nelco N4000, N9350, N9240; FR-4, Polyimide, PET; Metal Core etc. |
| Maximum Size | Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t＜0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--350µm (1oz-10oz) |
| Inner Copper Thickness | 17µm--350µm (0.5oz - 10oz) |
| Drill Hole(Mechanical) | 0.0079" - 0.25" (0.2mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| Diameter Tolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL, HASL LF, ENIG, Immersion Tin, Immersion Silver, OSP, Gold Finger, Pure gold plated etc. |
