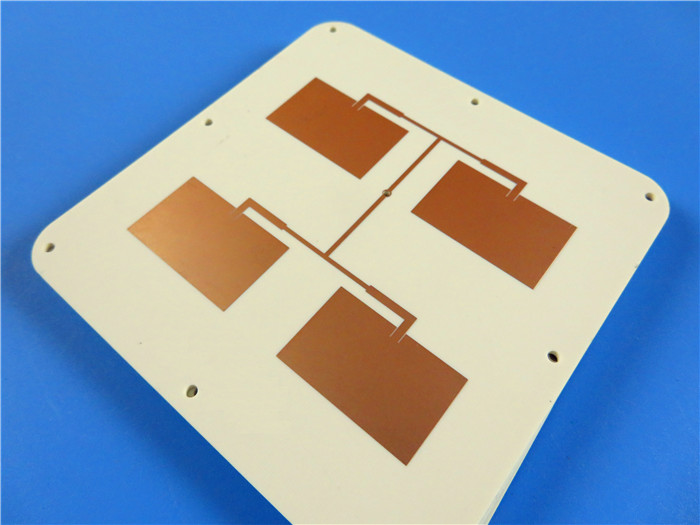

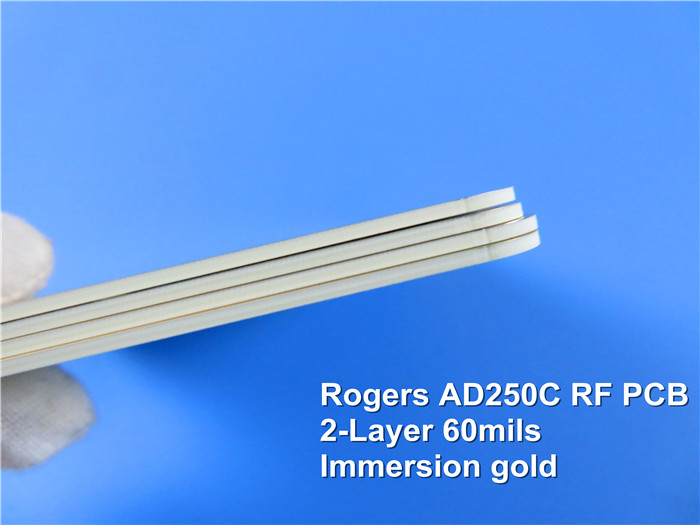

Rogers AD250C RF and Microwave PCB - 60mil (1.524mm) Substrate with Immersion Gold
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
General Description
The Rogers AD250C RF and Microwave PCB is a double-layer high-frequency circuit board designed for demanding antenna and RF applications. Built on Rogers AD250C substrates with a dielectric constant of 2.50 ± 0.04 and a low dissipation factor of 0.0013, this PCB offers exceptional performance for high-frequency systems. The board is 60mil (1.524mm) thick with 1oz copper on both sides, featuring immersion gold on the pads for excellent solderability. Designed with a size of 90mm x 90mm, it is manufactured in compliance with IPC Class II standards and undergoes 100% electrical testing before shipment.
.jpg)
PCB Specifications
| PCB SIZE | 90mm x 90mm = 1 piece |
|---|---|
| BOARD TYPE | High Frequency PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | N/A |
| LAYER STACKUP | copper - 35um(1 oz)+plate top layer |
| AD250C 1.524mm | |
| copper - 35um(1 oz)+plate bot layer | |
| Minimum Trace and Space: | 80 mil |
| Minimum / Maximum Holes: | 1.0 mm / 2.8 mm |
| Number of Drill Holes: | 9 |
| Surface Finish | Immersion Gold, 73.6% |
| Solder Mask Apply To: | Both sides |
| Final height of PCB: | 1.6 mm ±0.1 |
| TEST | 100% Electrical Test prior shipment |
| SERVICE AREA | Worldwide, Globally |
Features & Benefits
1. Very Low Loss: PTFE and ceramic-filled composite with a loss tangent of 0.0014 at 10 GHz.
2. Controlled Dielectric Constant (Dk): 2.50 ± 0.04 for consistent signal integrity.
3. Low Profile Copper: Reduces conductive losses and improves antenna efficiency.
4. Low PIM Performance: Ideal for antenna applications, ensuring minimal signal distortion.
5. High Production Capacity: 16,000㎡ workshop with a monthly output of 30,000㎡.
6. Certified Manufacturing: ISO9001, ISO14001, IATF16949, ISO13485, and UL certified.
Typical Applications
1. Cellular Infrastructure Base Station Antennas
2. Automotive Telematics Antenna Systems
3. Commercial Satellite Radio Antennas
