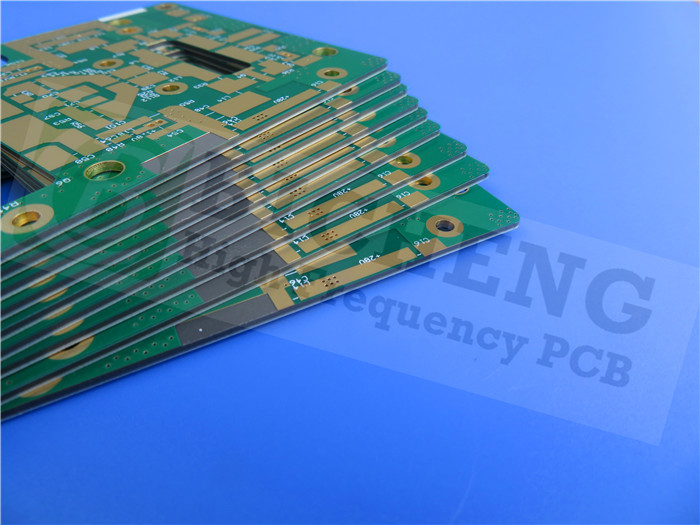

Rogers DiClad 880 High Frequency PCB Double Layer 20mil 0.508mm with Immersion Gold – Premium Quality for High-Performance Applications

(Note: Printed Circuit Boards are custom-made products; the images and specifications shown are for reference only.)

Product Overview

Elevate your high-frequency applications with the Rogers DiClad 880 High Frequency PCB. This double-layer PCB features a signal layer on the top side and a shielding layer on the bottom side, ensuring optimal performance for demanding electronic applications. The board is plated with immersion gold, providing excellent conductivity and corrosion resistance. Designed with a 20mil substrate and 0.5oz copper starting weight, this PCB is manufactured to IPC Class II standards, guaranteeing reliability and precision. Each board undergoes 100% electrical testing before shipment, ensuring top-notch quality.

Key Features

• High-Frequency Performance: Built on Rogers DiClad 880 laminates, ideal for RF and microwave applications.
• Double-Layer Design: Signal layer on top, shielding layer on the bottom for enhanced performance.
• Immersion Gold Plating: Superior conductivity and durability.
• 20mil Substrate: Robust construction for high-frequency applications.
• IPC Class II Standards: Manufactured to meet stringent quality requirements.
• 100% Electrical Testing: Ensures reliability and performance.

PCB Specifications

Why Choose Us?

• Certified Quality: ISO9001, ISO14001, ISO13485, and UL certified manufacturing facility.
• Precision Manufacturing: Strict adherence to your specifications for every PCB.
• End-to-End Solutions: From prototypes to mass production, we deliver tailored solutions.
• Large-Scale Production: 16,000㎡ workshop with the capacity to produce 8,000 types of PCBs monthly.
• 19+ Years of Expertise: Specialized in high-frequency PCB manufacturing.
