Advanced RT/duroid 5870 Circuit Boards for Radar and Satellite Systems

July 13, 2025

1.Introduction to RT/duroid 5870 PCB Material

Rogers RT/duroid 5870 high frequency laminates are PTFE-glass microfiber composites engineered for precision stripline and microstrip circuits. Featuring randomly oriented microfibers, these laminates deliver exceptional dielectric constant uniformity, making them ideal for:
High-frequency broadband applications
Ku-band and millimeter wave circuits
Low-loss, low-dispersion designs

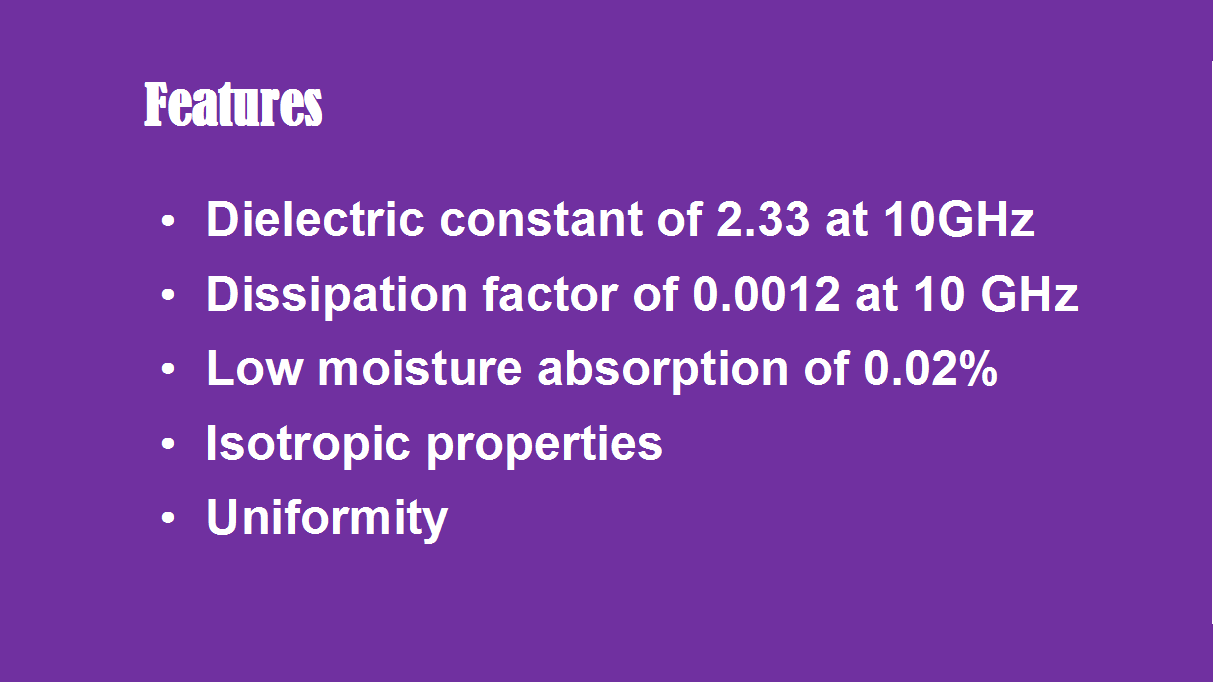

2.Key Features of RT/duroid 5870

Ultra-low Dk (2.33) & Dissipation (0.0012 @ 10 GHz)
Minimizes signal loss for high-frequency performance
Near-zero moisture absorption (0.02%)
Reliable in humid environments
Lowest electrical loss among reinforced PTFE materials
Isotropic properties for uniform performance across frequencies
Chemical-resistant for harsh applications

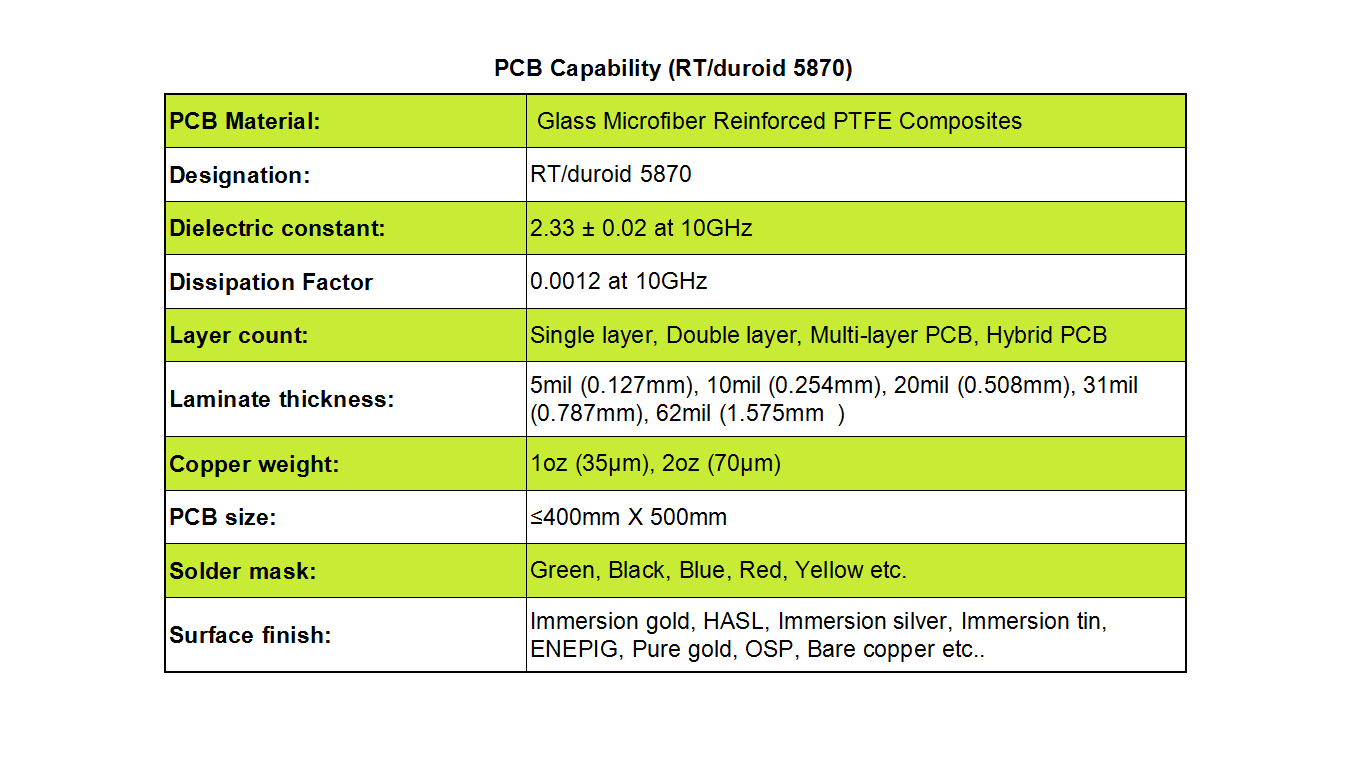

3.PCB Manufacturing Capabilities

We provide full RT/duroid 5870 PCB solutions with:
Configurations
Single/double-layer, multilayer & hybrid PCBs
Thickness Options
10mil, 15mil, 20mil, 31mil, 62mil (standard)
Copper & Panel Options
1oz/2oz finished copper
Max panel size: 400mm × 500mm
Customization
Solder mask colors: Green/black/blue/red/yellow
Surface finishes: ENIG, HASL, Immersion Ag/Sn, ENEPIG, OSP, Pure Gold

4. Applications of RT/duroid 6010.2LM High-Frequency PCBs

Commercial airline broadband antennas
Military radar & missile guidance systems
Millimeter wave circuits
Point-to-point digital radio antennas
Microstrip/stripline RF designs
