High-Performance RT/duroid 6010.2LM PCB for Microwave and RF Applications

July 12, 2025

1.Introduction to RT/duroid 6010.2LM High-Frequency PCB

Rogers RT/duroid 6010.2LM laminates are advanced ceramic-PTFE composites designed for high-frequency circuits requiring a stable dielectric constant (Dk). With a high Dk of 10.2 ±0.25, these laminates enable miniaturized circuit designs while maintaining low signal loss, making them ideal for X-band and microwave applications.

Engineered for RF and microwave PCBs, the 6010.2LM material ensures consistent performance in demanding environments, including aerospace, defense, and telecommunications.

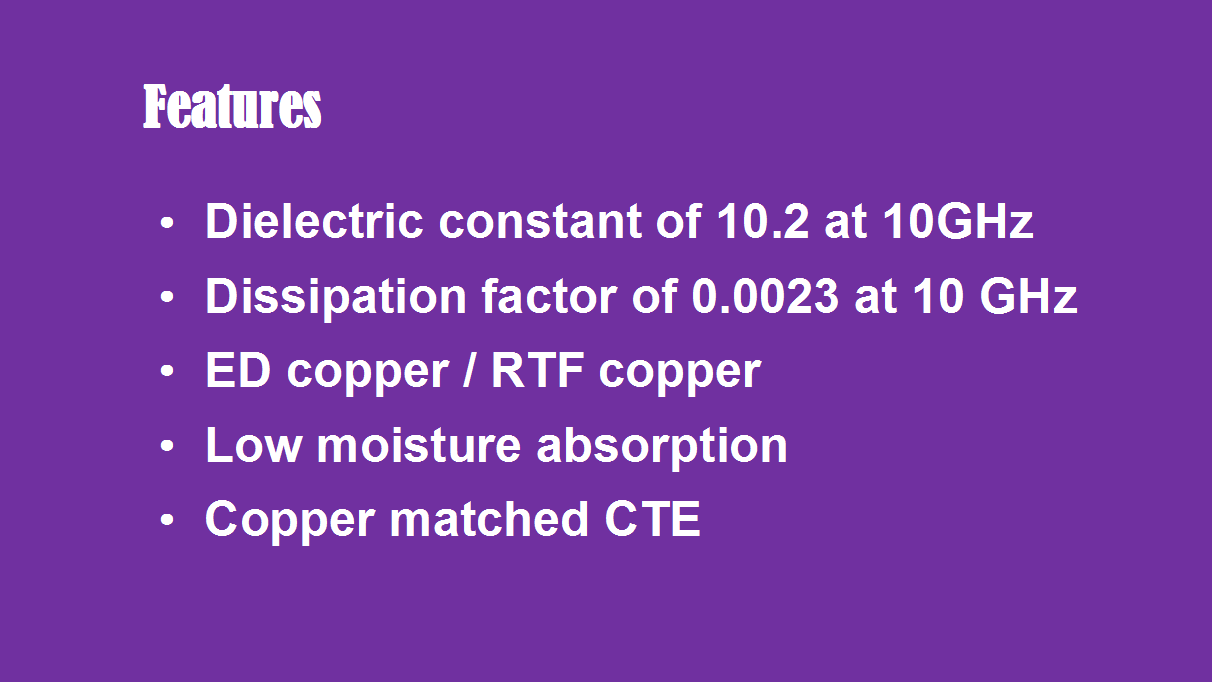

2.Key Features of RT/duroid 6010.2LM PCB Material

Precise Dielectric Constant (Dk = 10.2 ±0.25)
Ensures stable impedance control for high-frequency circuits.
Enables compact PCB designs without sacrificing performance.

Ultra-Low Dissipation Factor (0.0023 @ 10 GHz)
Minimizes signal loss and distortion for reliable RF/microwave performance.

Flexible Copper Foil Options
Choice between Electro-Deposited (ED) Copper and Reverse-Treated Foil (RTF) Copper.
Optimized for low insertion loss and passive intermodulation (PIM) performance.

Low Moisture Absorption
Enhances long-term reliability in humid or harsh conditions.

Optimized CTE for Multilayer PCBs
CTE (XYZ) 24, 24, 47 ppm/°C
Ensures durable plated through-holes (PTHs) in multilayer PCB stacks.

3.PCB Manufacturing Capabilities for RT/duroid 6010.2LM

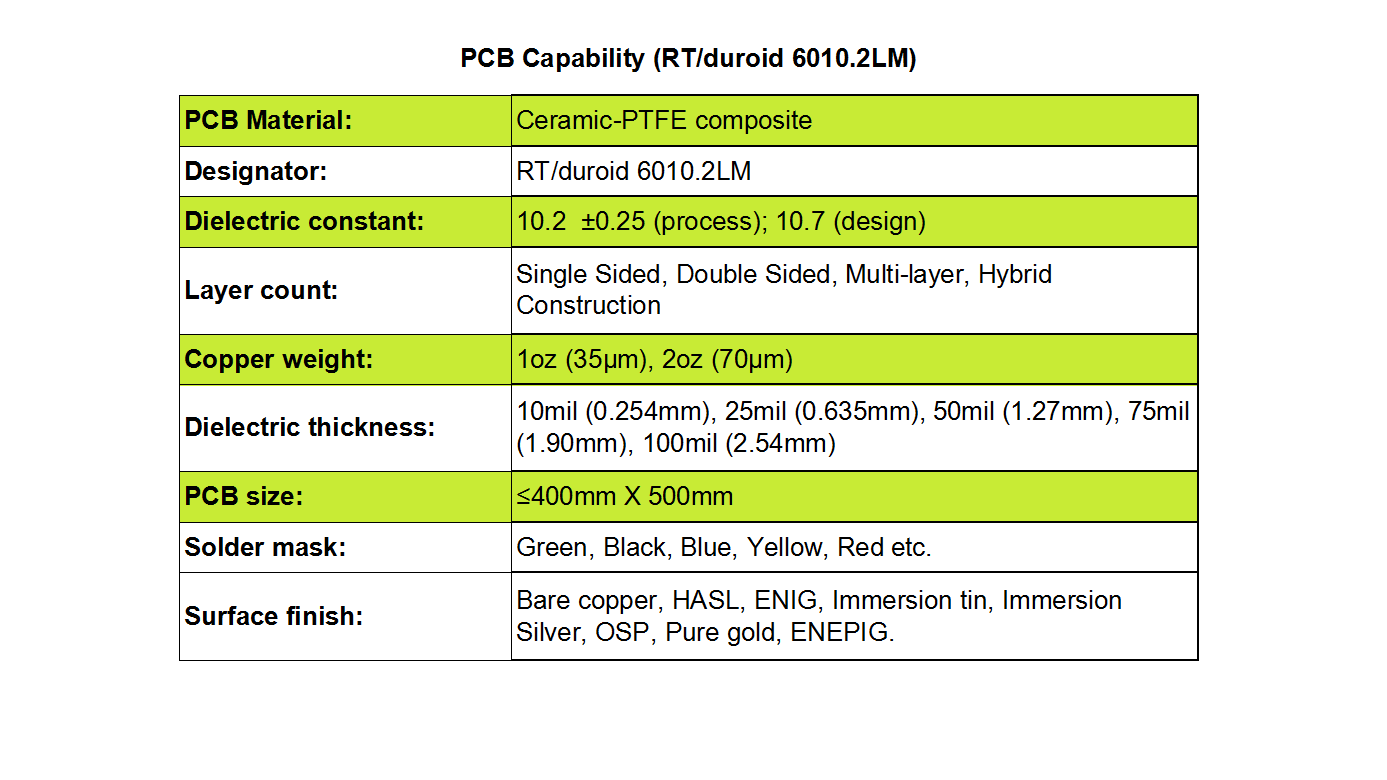

We specialize in high-frequency PCB fabrication using Rogers 6010.2LM material with the following capabilities

PCB Configurations
Single-sided, Double-sided, Multilayer, Hybrid PCBs
Copper Thickness Options
1oz (35µm), 2oz (70µm)
Dielectric Thickness Choices
10mil (0.254mm), 25mil (0.635mm), 50mil (1.27mm), 75mil (1.90mm), 100mil (2.54mm)
Panel Size and Solder Mask Colors
Max Panel Size 400mm × 500mm
Solder Mask Green, Black, Blue, Yellow, Red, etc.
Surface Finishes Available
HASL, ENIG, Immersion Tin/Silver, OSP, Pure Gold, ENEPIG

4. Applications of RT/duroid 6010.2LM High-Frequency PCBs

The low-loss, high-Dk properties of 6010.2LM PCBs make them ideal for
Patch Antennas
Satellite Communication Systems
Power Amplifiers (PAs)
Aircraft Collision Avoidance Systems
Ground Radar and Defense Systems

5.Why Choose Our RT/duroid 6010.2LM PCB Services?

High-frequency expertise with tight Dk tolerance control
Advanced manufacturing for RF/microwave applications
Custom configurations (hybrid, multilayer, mixed-material PCBs)
Fast prototyping and production

Contact Us for Your High-Frequency PCB Needs

Looking for a reliable 6010.2LM PCB manufacturer? Get a free quote today for high-performance RF/microwave PCBs!
