RF-10 High Frequency PCBs Enable Compact and Reliable RF Designs

September 26, 2025

As RF systems continue to demand higher performance in smaller form factors, the choice of substrate material becomes increasingly important. RF-10 high-frequency laminates offer a compelling combination of high dielectric constant, low loss, and excellent dimensional stability—making them an ideal solution for compact, high-reliability RF circuits.

Whether you're designing patch antennas, satellite components, or aerospace systems, RF-10 provides the electrical and mechanical properties needed for challenging applications.

What Is RF-10?

RF-10 is a ceramic-filled PTFE laminate reinforced with woven fiberglass. This composite structure delivers low dielectric loss and improved handling rigidity, while also supporting strong dimensional stability—especially valuable in multilayer circuit designs.

Its balanced expansion characteristics across all axes ensure reliable plated through-holes and reduce the need for complex artwork compensation.

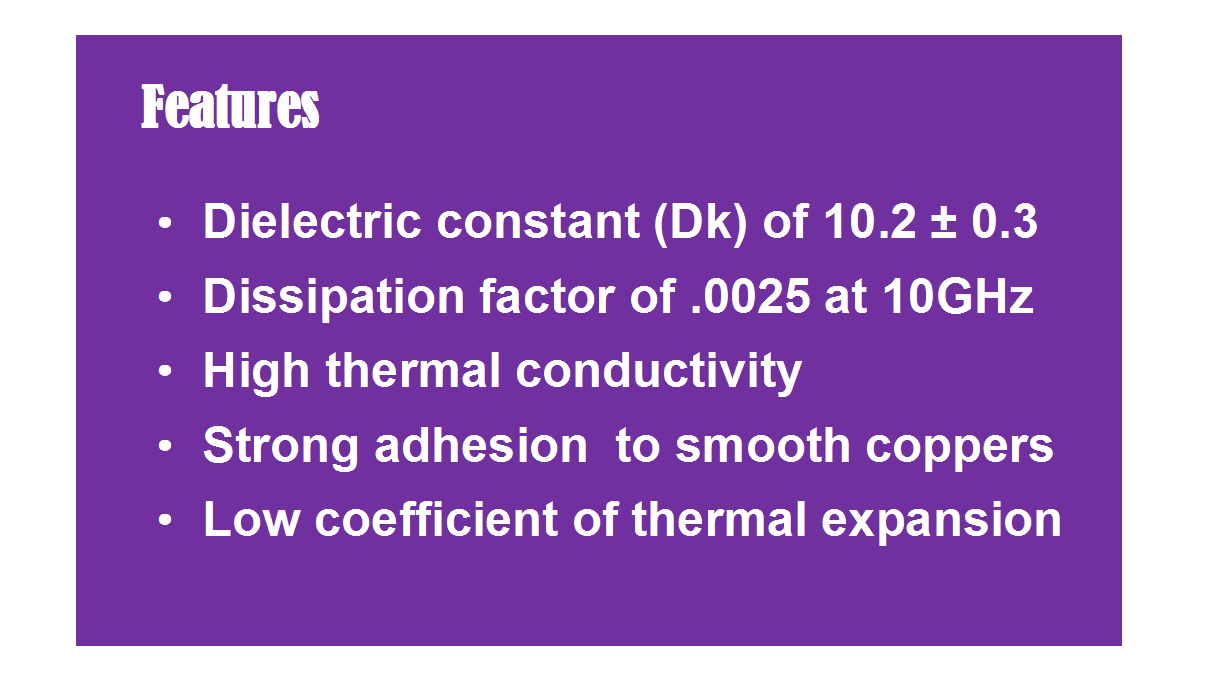

Key Features & Benefits

1.High Dielectric Constant

With a Dk of 10.2 ±0.3, RF-10 allows for significant circuit size reduction—ideal for compact RF designs.

2.Low Loss Performanc

A dissipation factor of 0.0025 at 10 GHz helps maintain signal integrity and minimize attenuation.

3.Improved Thermal Management

Thermal conductivity of 0.85 W/m·K (unclad) supports effective heat dissipation, reducing the risk of thermal-related failures.

4.Strong Copper Adhesion

The laminate bonds reliably to smooth copper surfaces, enhancing interfacial integrity and reliability.

5.Low CTE in All Directions

X-axis: 16 ppm/°C
Y-axis: 20 ppm/°C
Z-axis: 25 ppm/°C

This uniform low expansion improves plated through-hole reliability and reduces thermal stress.

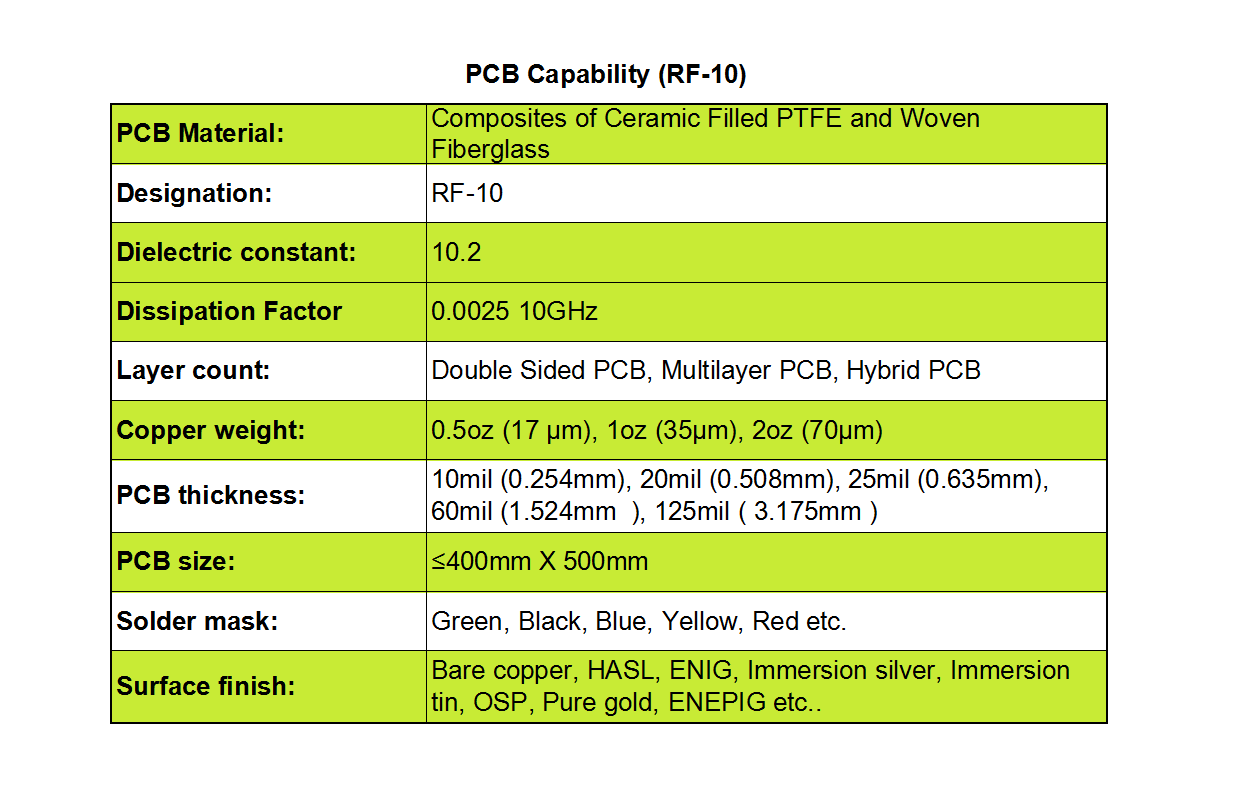

RF-10 PCB Manufacturing Capabilities

We support a broad range of RF-10 PCB configurations:

Stack-Up Types: Double-sided, multilayer, and hybrid boards
Copper Weight: 0.5 oz (17µm), 1 oz (35µm), and 2 oz (70µm)
Thickness Options: 10 mil, 20 mil, 25 mil, 60 mil, and 125 mil
Max. Board Size: 400mm × 500mm
Solder Mask Colors: Green, black, blue, yellow, red, and more
Surface Finishes: ENIG, HASL, Immersion Silver, Immersion Tin, ENEPIG, OSP, Bare Copper, and Pure Gold

Typical Applications

RF-10 is widely used in high-frequency and high-reliability fields, including:

Microstrip Patch Antennas
GPS Antennas
RF Passive Components
Aircraft Collision Avoidance Systems
Satellite Communication Assemblies
Aerospace and Defense Electronics

Why Choose RF-10?

RF-10 delivers a unique balance of high Dk, low loss, and mechanical stability—enabling smaller, more reliable RF circuits without compromising performance. Its compatibility with hybrid and multilayer designs makes it a versatile choice for advanced RF systems.

Interested in designing with RF-10? Contact us for technical guidance or a manufacturing quote.
