What Are the Different Types of PCBs?

July 16, 2025

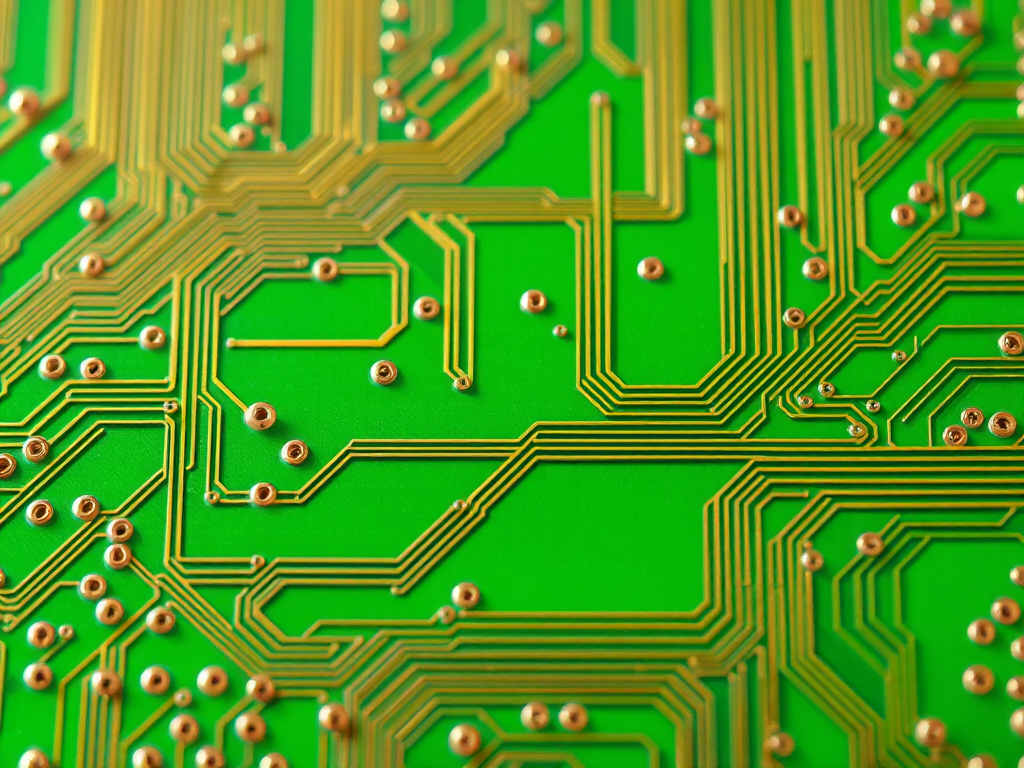

Printed Circuit Boards (PCBs) are essential components in electronic devices, providing mechanical support and electrical connections for components. With advancements in technology, PCBs have evolved into various types to meet different requirements. This article explores the classifications of PCBs and their applications, helping engineers and electronics enthusiasts choose the right type for their projects.

1.Classification by Layer Count

(1) Single-Layer PCB

The simplest type of PCB, featuring only one conductive copper layer, typically used in basic circuits such as LED lights and calculators.

Key Features:
Low cost, easy to manufacture
Limited routing flexibility (traces only on one side)

(2) Double-Layer PCB

These PCBs have conductive layers on both the top and bottom sides, connected by vias. They are suitable for moderately complex circuits, such as power supplies and home appliance control boards.

Key Features:
Greater routing flexibility
Cost-effective and widely used

(3) Multi-Layer PCB

Comprising 4, 6, 8, or more conductive layers separated by insulating material, these PCBs are used in high-speed digital circuits, networking equipment (e.g., routers, servers), and other advanced applications.

Key Features:
Supports high-density routing, reduces EMI
Higher manufacturing cost and design complexity

2. Classification by Substrate Material

(1) Rigid PCB
Made from rigid materials like FR-4, these PCBs are used in computer motherboards, industrial control systems, and other applications requiring mechanical strength.

(2) Flexible PCB
Constructed with bendable materials such as polyimide (PI), these PCBs are ideal for wearable devices, camera modules, and other space-constrained applications.

(3) Rigid-Flex PCB
Combining the advantages of rigid and flexible PCBs, they provide structural support while fitting into complex layouts. Common in aerospace, medical devices, and high-precision industries.

3. Classification by Specialized Manufacturing Processes

(1) High-Frequency PCB
Uses low-dielectric materials (e.g., PTFE) for applications like 5G communications and radar systems.

(2) High-Density Interconnect (HDI) PCB
Utilizes microvias and blind/buried vias for ultra-fine routing, commonly found in smartphones and tablets.

(3) Metal-Core PCB (e.g., Aluminum PCB)
Offers excellent heat dissipation, making it suitable for LED lighting and power modules.

4.Classification by Application

Consumer Electronics: Smartphones, TVs, smart home devices
Industrial Control: PLCs, motor drivers
Automotive Electronics: ECUs, infotainment systems
Medical Devices: Patient monitors, imaging equipment
Aerospace: Satellite communications, flight control systems

5. How to Choose the Right PCB?

Consider the following factors when selecting a PCB:
Circuit Complexity: Simple circuits may use single-layer PCBs, while complex designs require multi-layer boards.
Operating Environment: High-temperature applications need heat-resistant materials; high-frequency circuits require low-loss substrates.
Budget Constraints: High-density or specialized PCBs are more expensive.

6.Conclusion

PCBs come in various types, each suited for different applications. Understanding their characteristics helps optimize electronic designs for performance and cost. As technology advances, PCBs will continue evolving toward higher density, higher frequency, and greater reliability.

We hope this guide helps you navigate the world of PCBs and make informed decisions for your projects!
