* PCBs are custom-made, picture & parameters for reference
Rogers RO4360 High Frequency PCB Based on 6-layer with 8mil Core Coating Immersion Gold for Small Cell Transceivers
(Printed Circuit Boards are custom-made products; the images and specifications shown are for reference only.)
Overview:
RO4360G2 laminates from Rogers Corporation are high-performance materials with a dielectric constant (Dk) of 6.15 and low loss properties. These glass-reinforced, hydrocarbon ceramic-filled thermoset materials provide an ideal balance of performance and processing ease. RO4360G2 extends Rogers' portfolio by offering a lead-free process capable solution that enhances rigidity for improved manufacturability in multi-layer board constructions, while also reducing material and fabrication costs.
These laminates process similarly to FR-4 and are compatible with automated assembly. They feature a low Z-axis coefficient of thermal expansion (CTE) for design flexibility and share a high glass transition temperature (Tg) consistent with the entire RO4000 product line. RO4360G2 laminates can be paired with RO4450F prepreg and lower-Dk RO4000 laminates in multi-layer designs.
With a Dk of 6.15 (Design Dk 6.4), RO4360G2 laminates allow designers to minimize circuit dimensions in applications where size and cost are critical. They are an excellent value choice for engineers working on designs such as power amplifiers, patch antennas, ground-based radar, and other general RF applications.
Features and Benefits
Thermoset Resin System
1.Specially formulated to meet 6.15 Dk
2.Ease of fabrication; processes similar to FR-4
3.Material repeatability
4.Low loss
5.High thermal conductivity
6.Lower total PCB cost compared to competing PTFE products
Low Z-axis CTE / High Tg
1.Design flexibility
2.Plated through-hole reliability
3.Compatible with automated assembly
Environmentally Friendly
1.Lead-free process compatible
Regional Finished Goods Inventory
1.Short lead times and quick inventory turns
2.Efficient supply chain management
.jpg)
Typical Applications
Base Station Power Amplifiers
Small Cell Transceivers
Patch Antennas
Ground-Based Radar
PCB Capability
PCB Capability (RO4360G2) |
|
PCB Material: |
Hydrocarbon Ceramic-filled Thermoset Materials |
Designation: |
RO4360G2 |
Dielectric constant: |
6.15 ±0.15 |
Layer count: |
Double Layer, Multilayer, Hybrid PCB |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
PCB thickness: |
8mil (0.203mm), 12mil (0.705mm), 16mil (0.406mm), 20mil(0.508mm), 24mil (0.610mm), 32mil (0.813mm), 60mil(1.524mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, OSP etc.. |

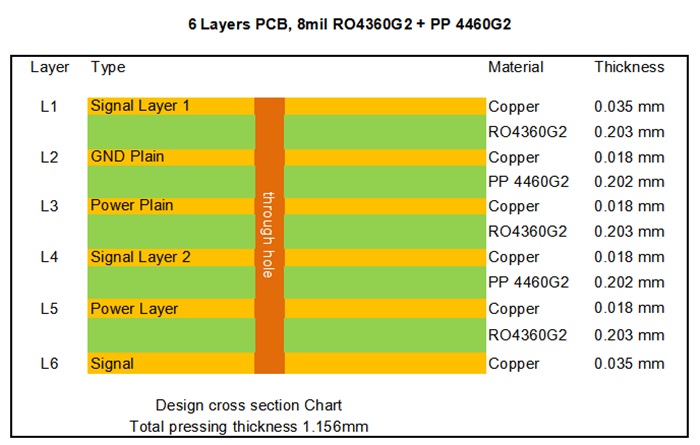

Stack Up
Data Sheet of RO4360G2
RO4360G2 Typical Value |
|||||
Property |
RO4360G2 |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant,εProcess |
6.15±0.15 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 |
2.5 GHz/23℃ |
|||||
Dissipation Factor,tanδ |
0.0038 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 |
Thermal Conductivity |
0.75 |
|
W/mK |
50℃ |
ASTM D-5470 |
Volume Resistivity |
4.0 X 1013 |
|
Ω.cm |
Elevated T |
IPC-TM-650 2.5.17.1 |
Surface Resistivity |
9.0 X 1012 |
|
Ω |
Elevated T |
IPC-TM-650 2.5.17.1 |
Electrical Strength |
784 |
Z |
V/mil |
|
IPC-TM-650 2.5.6.2 |
Tensile Strength |
131 (19) 97(14) |
X Y |
MPa (kpsi) |
40 hrs 50%RH/23 |
ASTM D638 |
Flexural Strength |
213(31) 145(21) |
X Y |
Mpa (kpsi) |
40 hrs 50%RH/23 |
IPC-TM-650, 2.4.4 |
Coefficient of Thermal Expansion |
13 14 28 |
X Y Z |
ppm/℃ |
-50 ℃to 288℃ After Replicated Heat Cycle |
IPC-TM-650, 2.1.41 |
Tg |
>280 |
|
℃ TMA |
|
IPC-TM-650 2.4.24.3 |
Td |
407 |
|
℃ |
|
ASTM D3850 using TGA |
T288 |
>30 |
Z |
min |
30 min / 125℃ Prebake |
IPC-TM-650 2.2.24.1 |
Moisture Absorption |
0.08 |
|
% |
50℃/48hr |
IPC-TM-650 2.6.2.1 ASTM D570 |
Thermal Coefficient of er |
-131 @10 GHz |
Z |
ppm/℃ |
-50℃ to 150℃ |
IPC-TM-650, 2.5.5.5 |
Density |
2.16 |
|
gm/cm³ |
RT |
ASTM D792 |
Copper Peel Strength |
5.2 (0.91) |
|
pli (N/mm) |
Condition B |
IPC-TM-650 2.4.8 |
Flammability |
V-0 |
|
|
|
UL 94 File QMTS2. E102765 |
