RT/Duroid 5880 15mil (0.381mm) High Frequency PCB for Millimeter Wave Applications
(Note: Printed Circuit Boards are customized products. The images and specifications provided are for reference only.)
Overview of Rogers RT/Duroid 5880
Rogers RT/Duroid 5880 is a high-frequency material composed of glass microfiber reinforced PTFE composites, specifically designed for precise stripline and microstrip circuit applications. The unique structure, featuring randomly oriented microfibers, ensures exceptional dielectric constant uniformity.
Key Benefits
1.Dielectric Constant Consistency: The dielectric constant of RT/Duroid 5880 remains uniform across panels and stable over a wide frequency range.
2.Low Dissipation Factor: With a low dissipation factor, RT/Duroid 5880 is effective for applications in the Ku-band and beyond.
3.Machinability: This material can be easily cut, sheared, and machined into desired shapes.
4.Chemical Resistance: RT/Duroid 5880 is resistant to all solvents and reagents, whether hot or cold, commonly used in the etching of printed circuits or in plating edges and holes.
Typical Applications
*Commercial airline broadband antennas
*Microstrip circuits
*Stripline circuits
*Millimeter wave applications
*Military radar systems
*Missile guidance systems
*Point-to-point digital radio antennas

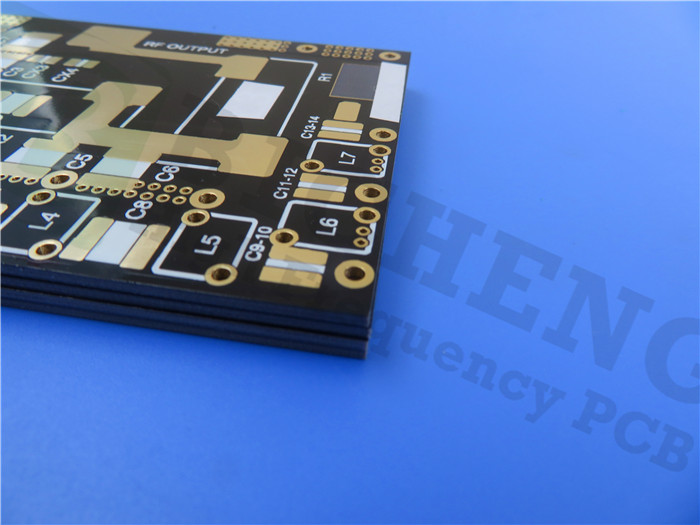

.jpg)
PCB Specifications
Rogers RT/Duroid 5880 15mil 0.381mm High Frequency PCB for Millimeter Wave Applications |
|
PCB SIZE |
160 x 70mm=1PCS |
BOARD TYPE |
Double sided PCB |
Number of Layers |
2 layers |
Surface Mount Components |
YES |
Through Hole Components |
YES |
LAYER STACKUP |
copper ------- 18um(0.5 oz)+plate TOP layer |
RT/duroid 5880 0.381mm |
|
copper ------- 18um(0.5oz) + plate BOT Layer |
|
TECHNOLOGY |
|
Minimum Trace and Space: |
4 mil / 15 mil |
Minimum / Maximum Holes: |
0.254 mm / 4.0mm |
Number of Different Holes: |
4 |
Number of Drill Holes: |
125 |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
0 |
Impedance Control: |
no |
Number of Gold finger: |
0 |
BOARD MATERIAL |
|
Glass Epoxy: |
RT/duroid 5880 0.381mm |
Final foil external: |
1.0 oz |
Final foil internal: |
N/A |
Final height of PCB: |
0.4 mm ±0.1 |
PLATING AND COATING |
|
Surface Finish |
Immersion gold |
Solder Mask Apply To: |
N/A |
Solder Mask Color: |
N/A |
Solder Mask Type: |
N/A |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
N/A |
Colour of Component Legend |
N/A |
Manufacturer Name or Logo: |
N/A |
VIA |
Plated through hole(PTH), minimum size 0.2mm. Via tented. |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" |
Board plating: |
0.0029" |
Drill tolerance: |
0.002" |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |

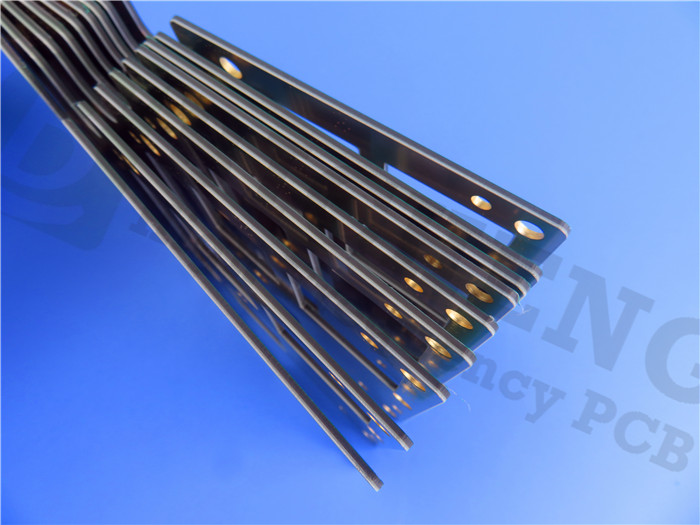

.jpg)
Data Sheet for Rogers RT/Duroid 5880
RT/duroid 5880 Typical Value |
||||||
Property |
RT/duroid 5880 |
Direction |
Units |
Condition |
Test Method |
|
Dielectric Constant,εProcess |
2.20 |
Z |
N/A |
C24/23/50 |
1 MHz IPC-TM-650 2.5.5.3 |
|
Dielectric Constant,εDesign |
2.2 |
Z |
N/A |
8GHz to 40 GHz |
Differential Phase Length Method |
|
Dissipation Factor,tanδ |
0.0004 |
Z |
N/A |
C24/23/50 |
1 MHz IPC-TM-650 2.5.5.3 |
|
Thermal Coefficient of ε |
-125 |
Z |
ppm/℃ |
-50℃to 150℃ |
IPC-TM-650 2.5.5.5 |
|
Volume Resistivity |
2 x 107 |
Z |
Mohm cm |
C/96/35/90 |
ASTM D 257 |
|
Surface Resistivity |
3 x 107 |
Z |
Mohm |
C/96/35/90 |
ASTM D 257 |
|
Specific Heat |
0.96(0.23） |
N/A |
j/g/k |
N/A |
Calculated |
|
Tensile Modulus |
Test at 23℃ |
Test at 100℃ |
N/A |
MPa(kpsi) |
A |
ASTM D 638 |
1070(156) |
450(65) |
X |
||||
860(125) |
380(55) |
Y |
||||
Ultimate Stress |
29(4.2) |
20(2.9) |
X |
|||
27(3.9） |
18(2.6) |
Y |
||||
Ultimate Strain |
6 |
7.2 |
X |
% |
||
4.9 |
5.8 |
Y |
||||
Compressive Modulus |
710(103) |
500(73) |
X |
MPa(kpsi) |
A |
ASTM D 695 |
710(103) |
500(73) |
Y |
||||
940(136) |
670(97) |
Z |
||||
Ultimate Stress |
27(3.9) |
22(3.2) |
X |
|||
29(5.3) |
21(3.1) |
Y |
||||
52(7.5) |
43(6.3) |
Z |
||||
Ultimate Strain |
8.5 |
8.4 |
X |
% |
||
7.7 |
7.8 |
Y |
||||
12.5 |
17.6 |
Z |
||||
Moisture Absorption |
0.02 |
N/A |
% |
0.62"(1.6mm) D48/50 |
ASTM D 570 |
|
Thermal Conductivity |
0.2 |
Z |
W/m/k |
80℃ |
ASTM C 518 |
|
Coefficient of Thermal Expansion |
31 |
X |
ppm/℃ |
0-100℃ |
IPC-TM-650 2.4.41 |
|
Td |
500 |
N/A |
℃ TGA |
N/A |
ASTM D 3850 |
|
Density |
2.2 |
N/A |
gm/cm3 |
N/A |
ASTM D 792 |
|
Copper Peel |
31.2(5.5) |
N/A |
Pli(N/mm) |
1oz(35mm)EDC foil |
IPC-TM-650 2.4.8 |
|
Flammability |
V-0 |
N/A |
N/A |
N/A |
UL 94 |
|
Lead-free Process Compatible |
Yes |
N/A |
N/A |
N/A |
N/A |
|
