Hybrid PCB
Welcome to our "Hybrid PCB" column, a gateway to the realm of innovative printed circuit board design that transcends traditional boundaries and explores the synergy of diverse materials and technologies. In this column, we embark on a journey of discovery into the fascinating world of hybrid PCBs, where versatility, performance, and customization converge to redefine the possibilities of electronic engineering.
Hybrid PCBs represent a fusion of creativity and technical prowess, where the marriage of different materials, layer configurations, and manufacturing techniques gives rise to circuit boards that are tailor-made for the most demanding applications. Through the strategic integration of varied components and substrates, these boards unlock new dimensions of performance, efficiency, and functionality that pave the way for cutting-edge electronic solutions.
.jpg)
Hybrid PCB Mixed Material Circuit Board Different Materials Combined PCB RO4350B + FR4 + RT/duroid 5880 with Immersion Gold
Hybrid PCBs can combine FR-4 with high-frequency materials. Another type is a mixture of high frequency material with different dielectric constant (DK), for example RT/duroid 5880 and RO4350B etc
Tags: Hybrid PCB, RO4350B + FR4 + RT/duroid 5880 , Immersion Gold
Hybrid High Frequency Printed Circuit Boards 3-Layer Hybrid RF PCB Made On 13.3mil RO4350B and 31mil RT/Duroid 5880
This article focuses on a specific type of mixed high-frequency PCB constructed from 13.3mil (0.338mm) RO4350B and 31mil (0.787mm) RT/Duroid 5880, designed for multi-coupler antenna applications.
Tags: Hybrid PCB, RO4350+RT/Duroid 5880, 3-layers PCB,HF PCB
.jpg)
Hybrid PCB Built on 8mil (0.203mm) RO4003C and 0.2mm FR-4 Multilayer High Frequency PCB Combining RO4003C and FR-4
This PCB has a thickness of 1.1 mm and features a blue solder mask with immersion silver plating on the pads, along with 1oz copper on each layer. Overall, it represents a straightforward multilayer PCB with a hybrid structure.
Tags:Hybrid PCB, RO4003C+FR-4, Multilayer PCB
Hybrid PCB High Frequency 4 Layer Mixed PCB Built on 12mil RO4003C and FR-4
The benefits of the 12mil RO4003C hybrid PCB are highlighted in the following points:Stable Dielectric Constant,Reduced Signal Loss,Cost Efficiency.
Tags: Hybrid PCB, RO4003C and FR-4, 4 Layer Mixed PCB,HF PCB
Hybrid PCB Board Built on 20mil RO4003C and 0.75mm FR-4 High Frequency Multi-layer PCB with Mixed Materials
The applications for the 20mil RO4003C hybrid PCB are extensive, including LNA, optical couplers, balanced amplifiers, duplexers, and more.
Tags: Hybrid PCB, RO4003C and FR-4, Multi-layer PCB
Hybrid PCB on Rogers RO4350B and High Tg FR-4 4-Layer Mixed PCB on 4mil RO4350B and 0.3mm FR-4
The applications for RO4350B hybrid PCBs are diverse, including:Preamplifiers,Radar sensors,Digital transmitters,Splitter modules,GPS antennas,Communication relays,Analog transmitters,4G antennas,RF transmitters,Wi-Fi amplifiers,RFID systems,Attenuators
Tags: Hybrid PCB, High Tg FR-4, Mixed PCB,RO4350B+F4B PCB

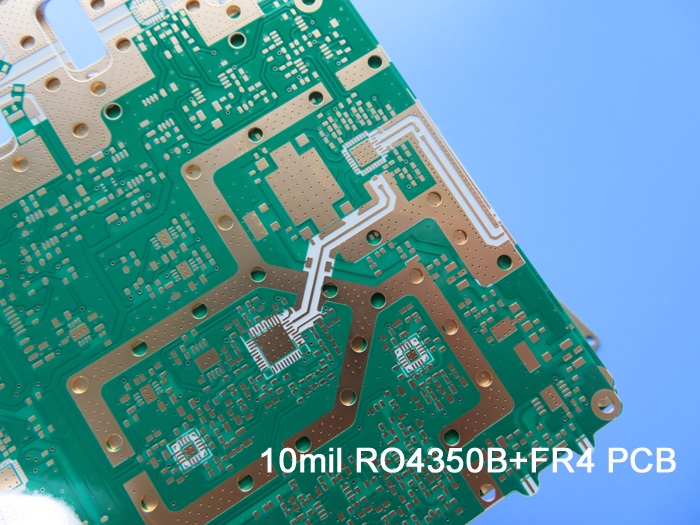

Hybrid PCB | Mixed Material PCB Built on 10 mil RO4350B + FR-4 with Depth Controlled Drill
The Advantages of 10mil RO4350B Hybrid PCBs include Stable Dielectric Constant,Improved Signal Integrity,Cost Efficiency and so on.
Tags: Hybrid PCB, Mixed Material PCB, RO4350B + FR-4,Depth Controlled Drill
.jpg)
Hybrid PCB | Mixed Material 4-Layer PCB Made On 20 mil RO4350B + FR4 With Blind Via
The stack-up consists of a core made of 20 mil (0.508mm) RO4350B high-frequency material for layers 1 and 2, where the signal transmission lines are located on the first layer of copper. Layers 3 and 4 consist of an epoxy glass material.
Tags: Hybrid PCB,Mixed Material 4-Layer PCB, RO4350B + FR4,Blind Via
Hybrid RF Circuit Board 5-Layer High Frequency PCB Built on 10mil RO4350B and FR-4
This board is specifically designed for 2.4 GHz antenna applications. It has a thickness of 1.0 mm and features through holes. Both sides are covered with a green solder mask, and the pads are finished with immersion gold.
Tags: Hybrid RF PCB, RO4350B and FR-4, Green Solder Mask,HF PCB
Hybrid RF High Frequency 6-Layer PCB Built on 10mil (0.254mm) RO4350B and FR-4 with Blind Via
This PCB is designed for radar antenna applications. It features two cores of RO4350B on the top and bottom sides, with plated through holes connecting each layer.
Tags: Hybrid PCB, RF, RO4350B and FR-4,HF PCB
Hybrid High Frequency PCB 6-Layer Mixed PCB on 20mil RO4350B and FR-4 with Blind Via
The applications for RO4350B hybrid PCBs are diverse, including:Low Noise Amplifiers (LNA),Radar Data Acquisition Converters,Spread Spectrum Devices,4G Antennas...
Tags: Hybrid PCB, RO4350B and FR-4 PCB, Blind Via,HF PCB
Hybrid High Frequency Multilayer PCB 6-Layer PCB Built on 12mil RO4003C and FR-4
A 6-layer RF PCB constructed using 12mil RO4003C and FR-4 is specifically designed for satellite antenna applications.
Tags: Hybrid PCB, Multilayer PCB, RO4003C and FR-4,HF PCB
.jpg)
Hybrid 10-Layer PCB RO4350B 6.6mil + FR-4 with Red Solder Mask and Immersion Gold
A type of 10-layer hybrid PCB constructed from RO4350B and FR-4, specifically designed for high-gain applications.
Tags: Hybrid PCB, Red Solder Mask, RO4350B+FR-4,Immersion Gold
Hybrid RF and High Frequency 4-Layer Circuit Boards Built on 16mil RO4003C + FR-4 with Immersion Tin
The 16mil RO4003C hybrid PCB has diverse applications, including:modular oscilloscopes;antenna combiners;balanced amplifiers;4G antennas.
Tags: Hybrid PCB, RO4003C + FR-4, Immersion Tin,HF PCB
.jpg)
Hybrid PCB - SCGA-500 GF265 High Frequency Material and High Tg FR-4 with Immersion Gold
The Hybrid PCB combines SCGA-500 GF265 high-frequency material and High Tg FR-4, offering a 4-layer design with immersion gold finish. Ideal for mixed-signal applications, it ensures excellent performance, reliability, and signal integrity.
Tags: Hybrid PCB, SCGA-500 GF265 PCB, High Tg FR-4 PCB, 4-Layer PCB, Immersion Gold PCB, Mixed-Signal PCB, High-Frequency PCB, RF PCB, IPC Class II PCB, High-Performance PCB
