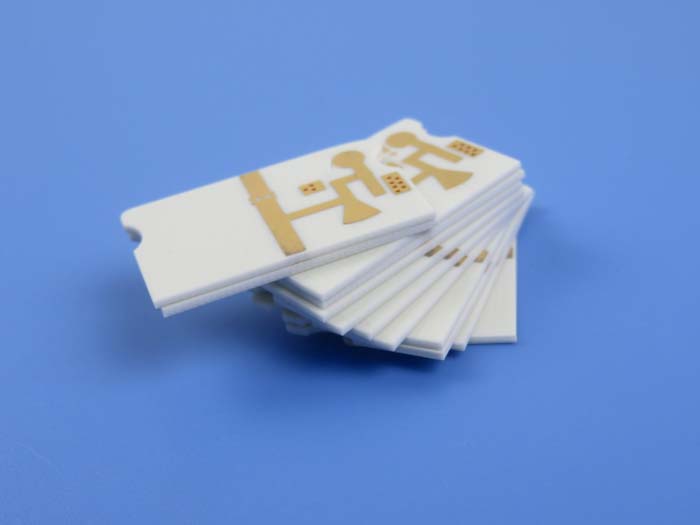

RO4835 High Frequency PCB - Double Layer 60mil (1.524mm) Rogers 4835 PCB with Immersion Gold
(Note: Printed Circuit Boards are custom-made products; the images and parameters shown are for reference only.)
General Description
The RO4835 High Frequency PCB is a double-layer circuit board designed for high-performance applications. Built on Rogers RO4835 laminates, this PCB features a signal layer on the top side and a shielding layer on the bottom side. The board is plated with immersion gold for excellent solderability and corrosion resistance, with no solder mask or silkscreen applied. Fabricated using a 60mil (1.524mm) substrate and starting with 0.5oz copper, the boards are manufactured in compliance with IPC Class II standards. All boards undergo 100% electrical testing before shipment to ensure quality and reliability.
PCB Specifications
| Parameter | Value |
|---|---|
| PCB SIZE | 12 x 26mm = 1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
| RO4835 1.524mm | |
| copper ------- 17um(0.5 oz)+plate BOT Layer | |
| Minimum Trace and Space: | 110 mil / 110 mil |
| Minimum / Maximum Holes: | 1.0 mm / 1.0 mm |
| Number of Drill Holes: | 10 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4835 1.524mm |
| Final foil external: | 1.0 oz |
| Final height of PCB: | 1.6 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold, 86.2% |
| VIA | Plated through hole(PTH), minimum size 1.0mm. |
| FLAMIBILITY RATING | 94V-0 |
| TEST | 100% Electrical Test prior shipment |
| SERVICE AREA | Worldwide, Globally. |
