* PCBs are custom-made, picture & parameters for reference

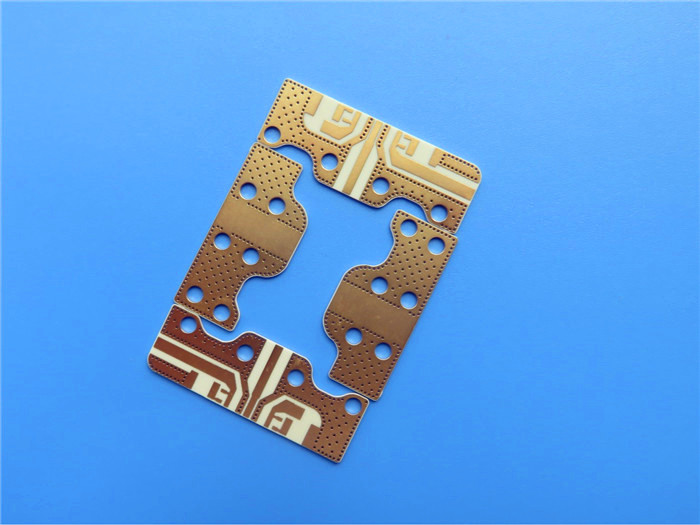

Rogers AD1000 Printed Circuit Board - High Frequency Double Sided with Immersion Gold
(Note: Printed Circuit Boards are custom-made products; the images and specifications shown are for reference only.)
General Description
Introducing the Rogers AD1000 Printed Circuit Board, a cutting-edge solution in the realm of high frequency PCBs. Engineered with a high dielectric constant of 10.2 or greater, this woven glass reinforced laminate is designed to facilitate circuit miniaturization while maintaining superior dimensional stability and mechanical robustness compared to traditional low loss materials. The immersion gold surface finish provides excellent solderability and corrosion resistance, making it ideal for demanding RF and microwave applications.
Key Features
- High Dielectric Constant: Exceptional performance with a Dk of 10.2.
- Thermal Conductivity: 0.81 W/mK for effective heat management.
- Copper Peel Strength: High peel strength allows for thinner etched line widths, enhancing design flexibility.
- Insertion Loss: Minimal insertion loss for improved signal integrity.
- Moisture Absorption: Low moisture absorption at just 0.03%.
Typical Applications
- Aircraft Collision Avoidance Systems (TCAS)
- Ground Based Radar Surveillance Systems
- Low Noise Amplifiers (LNAs)
- Miniaturized Circuitry & Patch Antennas
- Power Amplifiers (PAs)
- Radar Modules and Manifolds
- X-Band and Below Applications
PCB Capabilities (AD1000)
| PCB Capability (AD1000) | |
| PCB Material: | Woven Glass Reinforced PTFE/Ceramic Filled |
| Designation: | AD1000 |
| Dielectric constant: | 10.2 |
| Dissipation Factor: | 0.0023 @10GHz |
| Layer count: | Double Sided PCB, Multilayer PCB, Hybrid PCB |
| Copper weight: | 1oz (35µm), 2oz (70µm) |
| PCB thickness: | 6mil, 10.5mil, 15mil, 20mil, 25mil, 30mil, 50mil, 59mil, 125mil, 127mil |
| Surface finish: | Bare copper, HASL, ENIG, Immersion silver, Immersion tin, ENEPIG, Pure gold, OSP etc. |
Typical Values of AD1000
| Property | Value | Test Method |
|---|---|---|
| Dielectric Constant @ 10 GHz | 10.2 | IPC TM-650 2.5.5.5 |
| Dissipation Factor @ 10 GHz | 0.0023 | IPC TM-650 2.5.5.5 |
| Thermal Conductivity | 0.81 W/mK | ASTM E1461 |
| CTE (x,y) 50-150°C | 8, 10 ppm/°C | IPC TM-650 2.4.41 |
| CTE (z) 50-150°C | 20 ppm/°C | IPC TM-650 2.4.24 |
| Copper Peel Strength | >12 lb/in (2.1 N/mm) | IPC TM-650 2.4.8 |
| Water Absorption | 0.03% | IPC TM-650 2.6.2.1 |
| Flammability | Meets V0 | UL-94 |
