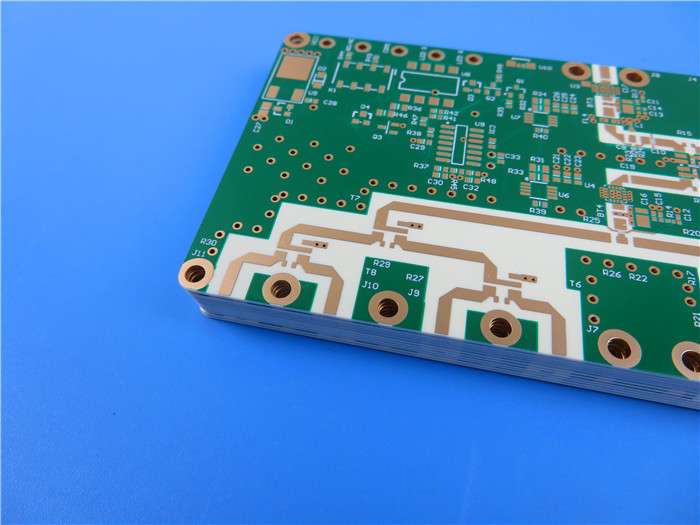

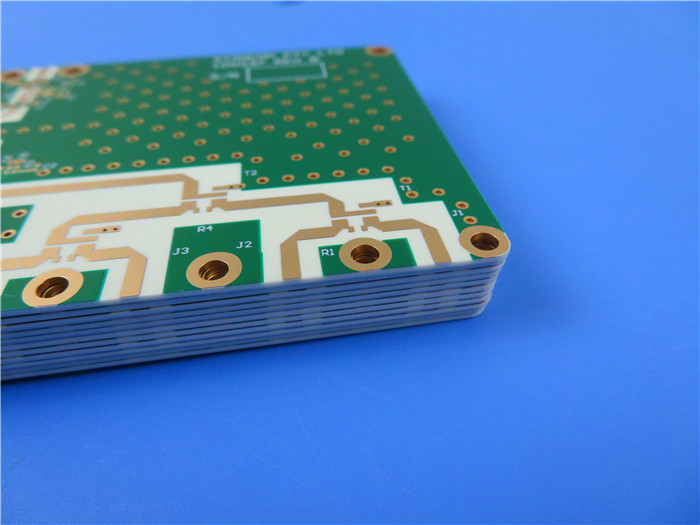

Rogers CLTE-XT High Frequency PCB - 40mil (1.016mm) Woven Glass Reinforced PTFE Microwave PCB
(Note: Printed Circuit Boards are custom-made products; the images and specifications shown are for reference only.)
General Description
The Rogers CLTE-XT High Frequency PCB is a double-sided circuit board designed for high-performance microwave and RF applications. Built on 40mil (1.016mm) CLTE-XT substrates, this PCB features a green solder mask and white silkscreen on the component side, with immersion gold plating on the pads. The board size is 150mm x 65mm, with a standard 1oz finished copper thickness. Manufactured in compliance with IPC Class II standards, each board undergoes 100% open-short circuit testing before shipment.
PCB Specifications
Rogers CLTE-XT 40mil High Frequency PCB for Microwave Applications |
|
PCB SIZE |
65mm x 150mm = 1 piece |
BOARD TYPE |
Double sided PCB |
Number of Layers |
2 layers |
Surface Mount Components |
YES |
Through Hole Components |
N/A |
LAYER STACKUP |
copper ------- 17um(0.5 oz)+plate top layer |
CLTE-XT 1.016mm |
|
copper ------- 17um(0.5 oz)+plate bot layer |
|
Minimum Trace and Space: |
12 mil / 12 mil |
Minimum / Maximum Holes: |
0.4 mm / 4.8 mm |
BOARD MATERIAL |
|
Base Material: |
CLTE-XT 1.016mm |
Final foil external: |
1 oz |
PLATING AND COATING |
|
Surface Finish |
Immersion Gold |
Solder Mask Apply To: |
Both sides |
Solder Mask Color: |
Green |
MARKING |
Top side, White legend |
TEST |
100% Electrical Test prior shipment |
SERVICE AREA |
Worldwide, Globally. |
