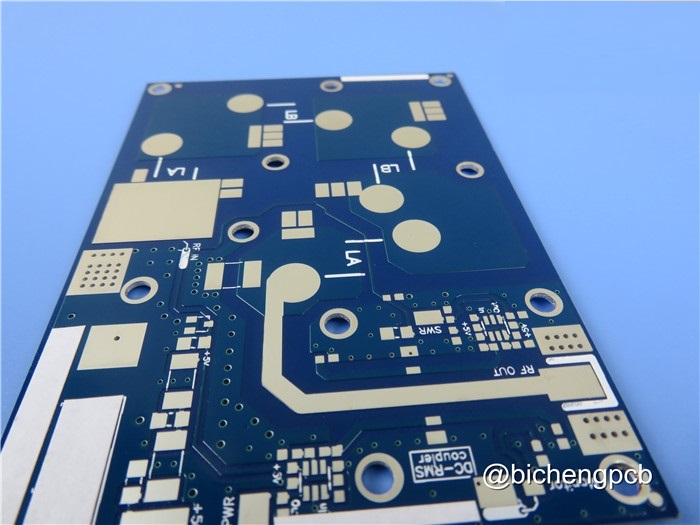

30mil RF-45 High Frequency PCB: Blue Solder Mask with Immersion Silver Pads
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Product Overview
Introducing the 30mil RF-45 High Frequency Printed Circuit Board, crafted from Taconic's ORCER RF-45 material. This dual-layer PCB is designed for high performance in various RF applications. Key features include:
Thickness: 0.8mm
Copper Weight: Finished with 1oz copper.
Solder Mask and Silkscreen: Applied only on the top layer.
Shielding: The bottom layer is fully exposed with immersion silver for effective shielding.
Packaging: 50 boards are vacuum packed for secure shipment.
PCB Specifications
| PCB SIZE | 70 x 55mm=1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
| RF-45 0.787mm | |
| copper ------- 17um(0.5 oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4.0 mil / 5.0 mil |
| Minimum / Maximum Holes: | 0.4 mm / 6.0 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 3 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | no |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RF-45 |
| Final foil external: | 1.0 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.8 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion silver, 39% |
| Solder Mask Apply To: | Top Layer |
| Solder Mask Color: | Blue |
| Solder Mask Type: | Kuangshun |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | Top Layer |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.4mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
.jpg)
Available RF PCB Materials
We offer a variety of RF PCB materials, including:
FR-4: Tg > 135, High Tg > 170 (e.g., S1000-2M, TU-872 SLK)
Rogers Materials: RO4350B, RO4003C, RO4730G3, and more.
PTFE Options: F4B with dielectric constants DK2.2, DK2.65.
Taconic Materials: Including RF-10, RF-35TC, RF-60A, RF-45, and TRF-45.
Flexible and Metal Core PCBs: Available with various specifications.
Our PCB Services
We provide a comprehensive range of PCB services, including:
Prototypes and mass volume production
Single-sided and double-sided PCBs
Multilayer PCBs (up to 32 layers)
Heavy copper and hybrid PCBs
Impedance controlled, via in pad, and BGA PCBs
Blind via and specialized hole configurations
Quick turn-around delivery
No Minimum Order Quantity (MOQ)
Door-to-door shipment service
Capability and Service Area
We produce between 2500 to 3000 types of PCBs each month, serving markets such as North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, and the Middle East.
We are equipped to provide prototypes, small batches, and mass production PCBs tailored to your needs. For any inquiries, please feel free to contact us.
Thank you for your interest in our RF-45 high frequency printed circuit boards!

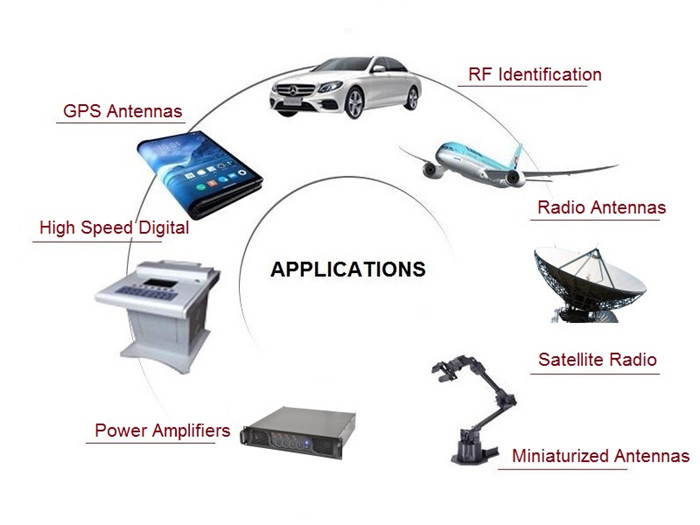

Typical Applications
The RF-45 PCB is suitable for:
Satellite Radio
RFID Tags
Satellite Radio Antennas
RFID Antennas
GPS Antennas

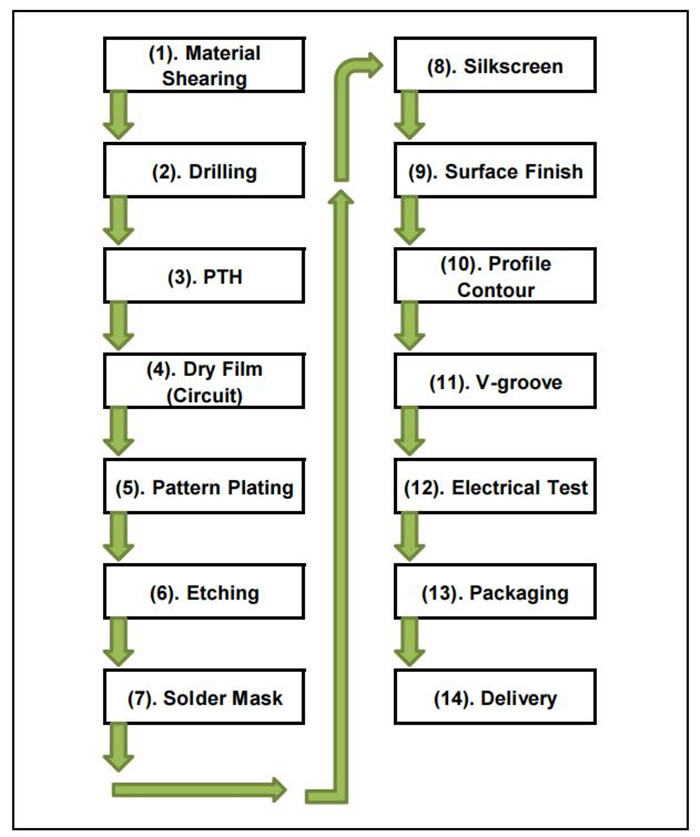

Manufacturing Process for Dual Layer PTH PCB
The manufacturing process for immersion silver and HASL PCBs includes the following steps:
Material Shearing
Drilling
PTH (Plated Through Hole)
Dry Film Application (Circuit)
Pattern Plating
Etching
Solder Mask Application
Silkscreen Printing
Surface Finishing
Profile Contouring
V-Groove Cutting
Electrical Testing
Packaging
Delivery
We are equipped to provide prototypes, small batches, and mass production PCBs tailored to your needs. For any inquiries, please feel free to contact us.
Thank you for your interest in our 30mil RF-45 high frequency printed circuit boards!
