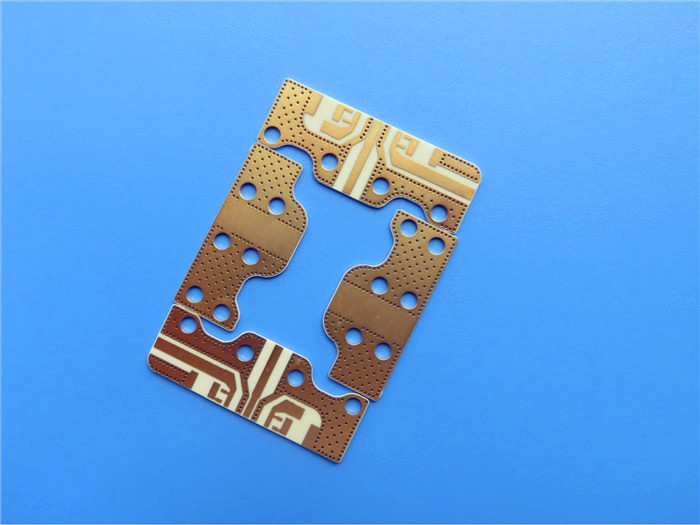

AD1000 High Frequency PCB: 30mil Double Sided RF PCB with Immersion Gold
(Note: Printed Circuit Boards are custom-made products. Images and parameters are for reference only.)
Product Overview
Introducing the AD1000 High Frequency Printed Circuit Board, a state-of-the-art solution for RF applications. This dual-layer PCB is crafted from advanced AD1000 material, featuring a PTFE/woven fiberglass/ceramic filled laminate. Key specifications include:
Thickness: 0.8mm (30mil)
Copper Weight: Finished with 1oz copper.
Surface Finish: Immersion gold; no solder mask or silkscreen applied.
Exposure: Both layers are fully exposed to air.
Packaging: Supplied in batches of 50 boards, vacuum packed for secure shipping.
Typical Applications
The AD1000 PCB is ideal for a range of applications, including:
Aircraft Collision Avoidance Systems (TCAS)
Ground Based Radar Surveillance Systems
Low Noise Amplifiers (LNAs)
Miniaturized Circuitry & Patch Antennas
Power Amplifiers (PAs)
Radar Modules and Manifolds
X-Band and Below
.jpg)
PCB Specifications
| PCB SIZE | 42 x 25mm=1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
| AD1000 0.762mm | |
| copper ------- 17um(0.5 oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 10 mil / 10 mil |
| Minimum / Maximum Holes: | 0.3 mm / 3.0 mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 115 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | no |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | AD1000 0.762mm |
| Final foil external: | 1.0 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.8 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold, 52% |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.3mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Other Available RF PCB Materials
We offer a variety of RF PCB materials to suit your needs:
FR-4: Tg > 135, High Tg > 170 (e.g., S1000-2M, TU-872 SLK)
Rogers Materials: RO4350B, RO4003C, RO4730G3, and more.
PTFE Options: F4B with dielectric constants DK2.2, DK2.65.
Taconic Materials: Including RF-10, RF-35, RF-60A, RF-45, and TRF-45.
Metal Core and Flexible PCBs: Available with various specifications.
Our PCB Services
We provide a comprehensive range of PCB services, including:
PCB prototypes and mass volume production
Single-sided and double-sided PCBs
Multilayer PCBs (up to 32 layers)
Heavy copper and hybrid PCBs
Impedance controlled and BGA PCBs
Blind via and custom hole configurations
Quick turn-around delivery
No Minimum Order Quantity (MOQ)
Door-to-door shipment service
Capability and Service Area
We produce between 2500 to 3000 types of PCBs each month, serving markets such as North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, and the Middle East.

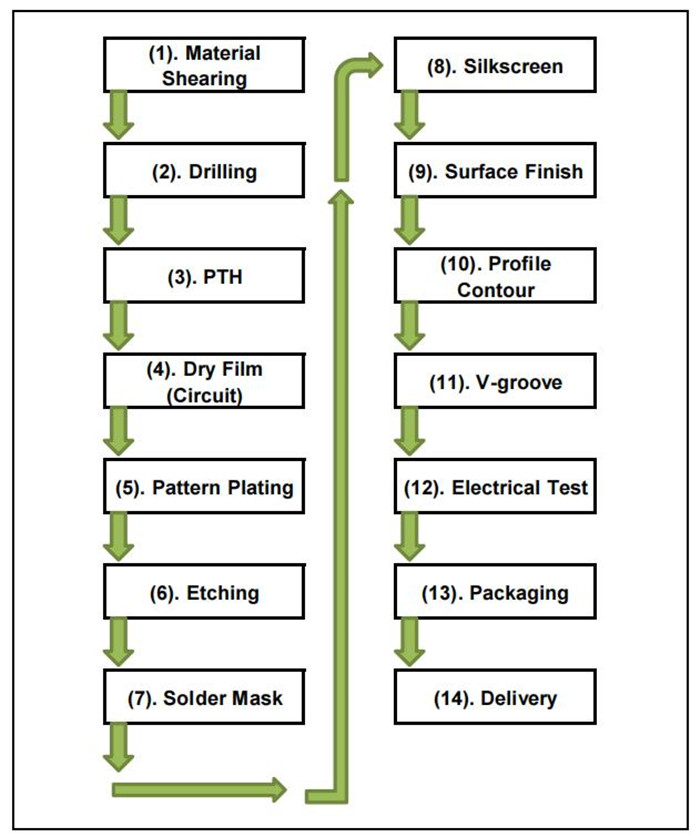

Manufacturing Process for Dual Layer PTH PCB
The manufacturing process for immersion gold and HASL PCBs includes the following steps:
Material Shearing
Drilling
PTH (Plated Through Hole)
Dry Film Application (Circuit)
Pattern Plating
Etching
Solder Mask ApplicationB
Silkscreen Printing
Surface Finishing
Profile Contouring
V-Groove Cutting
Electrical Testing
Packaging
Delivery
We are equipped to provide prototypes, small batches, and mass production PCBs tailored to your needs. For any inquiries, please feel free to contact us.
Thank you for your interest in our AD1000 high frequency printed circuit boards!
