Rogers RO4534 High Frequency PCB - Double Layer 20mil (0.508mm) with Immersion Gold for Antenna Applications
(Note: Printed Circuit Boards are custom-made products. Images and parameters are for reference only.)
General Description
The Rogers RO4534 High Frequency PCB is a double-layer antenna-grade circuit board built on Rogers RO4534 laminates with a 20mil (0.508mm) substrate. It starts with 0.5oz copper and is finished with 1oz copper, featuring fine lines as narrow as 4mil and microvias with a diameter of 0.2mm. The surface finish on the pads is immersion gold with a 0.05-micron gold layer, complemented by a green solder mask and white silkscreen legends. Manufactured in compliance with IPC Class 2 standards, each shipment includes 50 pieces vacuum-packed for secure delivery.
PCB Specifications
| PCB SIZE | 88 x 98mm=1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
| Rogers RO4534 0.508mm | |
| copper ------- 17um(0.5 oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil / 4 mil |
| Minimum / Maximum Holes: | 0.2 mm / 3.5 mm |
| Number of Different Holes: | 12 |
| Number of Drill Holes: | 895 |
| Number of Milled Slots: | 2 |
| Number of Internal Cutouts: | 3 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | Rogers RO4534 0.508mm |
| Final foil external: | 1.0 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.6 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold, 35% |
| Solder Mask Apply To: | Both Sides |
| Solder Mask Color: | Green |
| Solder Mask Type: | LPI |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | Component Side |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.2mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |

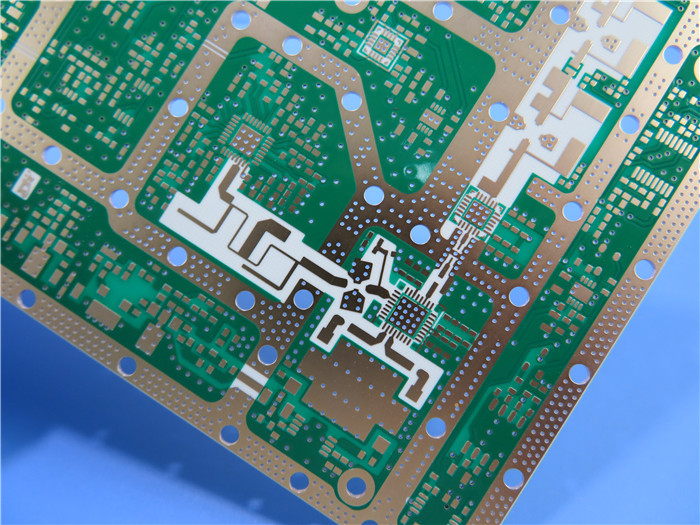

.jpg)
Our PCB Capabilities (2022)
| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Material | RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD450, AD600, AD1000, TC350; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc. |
| Maximum Size | Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t＜0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--420µm (1oz-12oz) |
| Inner Copper Thickness | 17µm--350µm (0.5oz - 10oz) |
| Drill Hole(Mechanical) | 0.0059" - 0.25" (0.15mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc. |
Our Advantages
1.Wide Range of High-Frequency Materials: Including Rogers, Taconic, and Wangling laminates.
2. 19+ Years of Experience: Specializing in high-frequency PCB manufacturing.
3.Strict Quality Control: Rigorous WIP inspection, monitoring, and adherence to detailed work instructions.
4.Large Production Facility: 16,000㎡ workshop with a monthly output capacity of 30,000㎡.
5.High Production Volume: Capable of producing 8,000 types of PCBs per month.
6.Flexible Ordering: Small quantity orders are available with no minimum order quantity (MOQ).
7.Certifications: ISO9001, ISO14001, IATF16949, ISO13485, and UL Certified.
8.Quality Standards: IPC Class 2 and IPC Class 3 compliant.
9.Reliability: On-time delivery rate >98%, customer complaint rate <1%.
.jpg)
Appendix: Typical Values of RO4534
| Property | RO4534 | Direction | Units | Condition | Test Method |
| Dielectric Constant, er Process | 3.4 ± 0.08 | Z | - | 10 GHz/23℃ 2.5 GHz | IPC-TM-650,2.5.5.5 |
| Dissipation Factor | 0.0022 | Z | - | 2.5 GHz/23℃ | IPC-TM-650, 2.5.5.5 |
| 0.0027 | 10 GHz/23℃ | ||||
| PIM (Typical) | -157 | - | dBc | Reflected 43 dBm swept tones | Summitek 1900b PIM Analyzer |
| Dielectric Strength | >500 | Z | V/mil | 0.51 mm | IPC-TM-650, 2.5.6.2 |
| Dimensional Stability | <0.3 | X,Y | mm/m (mils/inch) | after etch | IPC-TM-650, 2.4.39A |
| Coefficient of Thermal Expansion | 11 | X | ppm/℃ | -55 to 288℃ | IPC-TM-650, 2.4.41 |
| 14 | Y | ||||
| 46 | Z | ||||
| Thermal Conductivity | 0.6 | - | W/(m.K) | 80℃ | ASTM C518 |
| Moisture Absorption | 0.06 | - | % | D48/50 | IPC-TM-650, 2.6.2.1 ASTM D570 |
| Tg | >280 | - | ℃ TMA | A | IPC-TM-650, 2.4.24.3 |
| Density | 1.8 | - | gm/cm3 | - | ASTM D792 |
| Copper Peel Strength | 6.3 （1.1） | - | lbs/in (N/mm) | 1 oz. EDC post solder float | IPC-TM-650, 2.4.8 |
| Flammability | NON FR | - | - | - | UL 94 |
| Lead-Free Process Compatible | Yes | - | - | - | - |
