RT Duroid 6202 High Frequency PCB Engineering Complex Microwave Designs with Precision

October 4, 2025

In the world of high-frequency electronics, performance starts with the substrate. For designers who need consistent electrical properties, mechanical stability, and ultra-low signal loss, Rogers RT/duroid® 6202 stands out as a trusted high-frequency laminate.

Ideal for demanding RF and microwave applications, this material combines a low dielectric constant with minimal woven glass reinforcement—delivering both electrical precision and dimensional reliability.

What Is RT/duroid 6202?

RT/duroid 6202 is a high-frequency circuit material engineered for complex microwave structures. Its balanced construction offers:
Low dielectric constant with tight tolerance
Ultra-low dissipation factor
Excellent dimensional stability

The limited woven glass reinforcement reduces the need for double-etching, simplifies fabrication, and helps maintain tight positional tolerances—making it easier to achieve high-performance designs without compromising manufacturability.

Key Material Properties and Benefits

1.Stable Dielectric Constant:

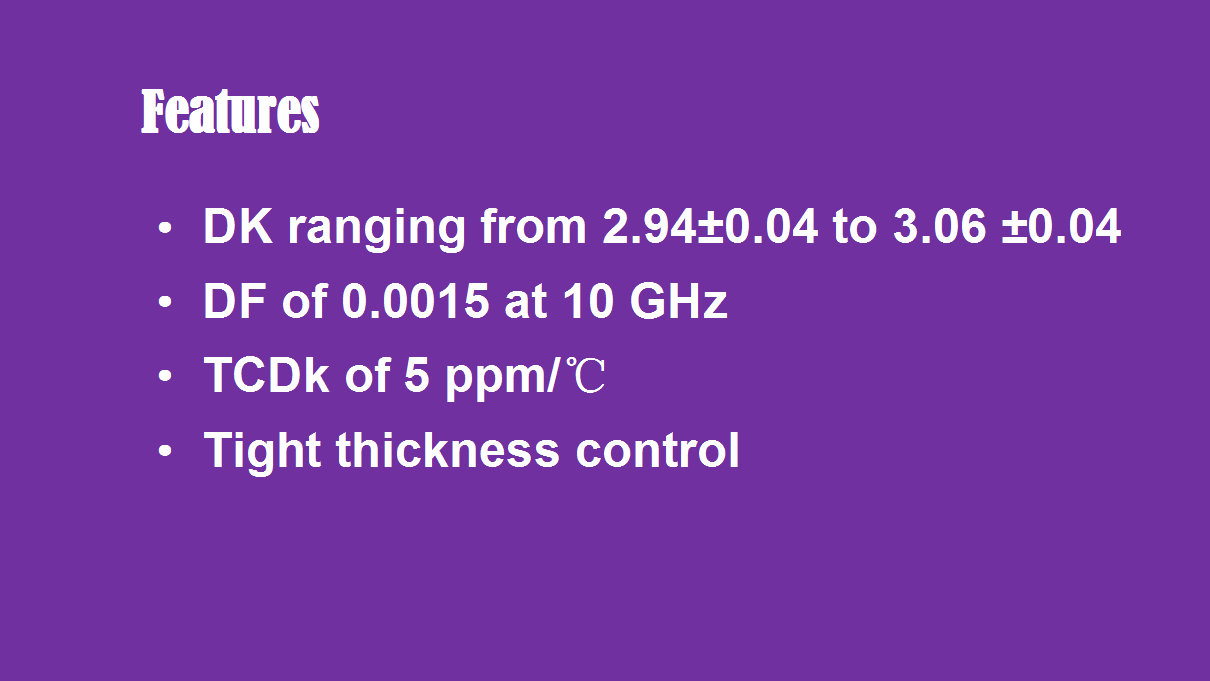

Dk ranges from 2.94 to 3.06 (depending on thickness), with an exceptionally tight tolerance of ±0.04.

2.Ultra-Low Loss:

Dissipation factor of just 0.0015 at 10 GHz, enabling high-efficiency signal transmission.

3.Thermal Stability:

Low thermal coefficient of Dk—only 5 ppm/°C—ensures consistent performance across temperature variations.

4.Dimensional Control:

In-plane expansion is closely matched to copper, and etch shrinkage is minimal, supporting fine-line circuitry and multilayer designs.

PCB Manufacturing Capabilities with RT/duroid 6202

We support a full range of PCB configurations using this high-performance material:

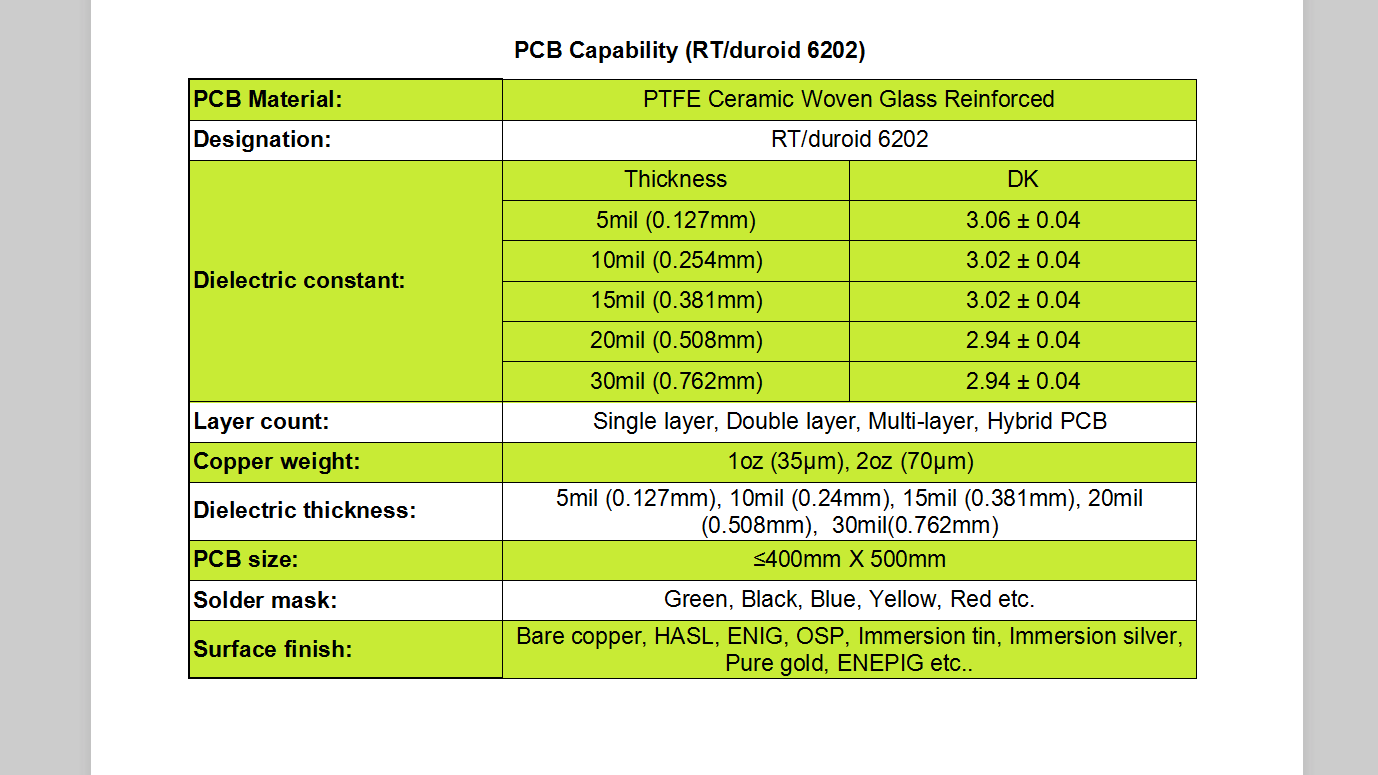

Layer Configurations: Single-layer, double-layer, multilayer, and hybrid builds
Copper Weight: 1 oz (35µm) and 2 oz (70µm) standard
Dielectric Thickness: 5 mil, 10 mil, 15 mil, 20 mil, 30 mil, and more
Max Board Size: Up to 400 mm × 500 mm
Solder Mask Colors: Green, black, blue, yellow, red, and others
Surface Finishes: HASL, ENIG, Immersion Silver, OSP, Immersion Tin, Pure Gold, ENEPIG, and bare copper

Typical Applications

RT/duroid 6202 is widely used in high-reliability RF and microwave systems, including:

Phased array antennas
Radar systems
GPS antennas
Power backplanes
Commercial avionics and collision avoidance systems
Beamforming networks

Conclusion

Whether you're developing advanced radar, satellite communications, or high-frequency avionics, RT/duroid 6202 provides the electrical consistency, low loss, and mechanical integrity needed for mission-critical designs.

Want to learn more or discuss how this material can enhance your next project? Stay connected for more deep-dives into high-performance PCB materials.
