RT/duroid 6006 High Frequency PCB - Properties, Capabilities & Applications

August 4,2025

Introduction

Rogers RT/duroid 6006 is a premium ceramic-PTFE composite material engineered for high-frequency microwave circuits requiring superior dielectric properties. With its high dielectric constant (Dk), this laminate enables compact circuit designs while maintaining exceptional signal integrity in X-band and lower frequency applications.

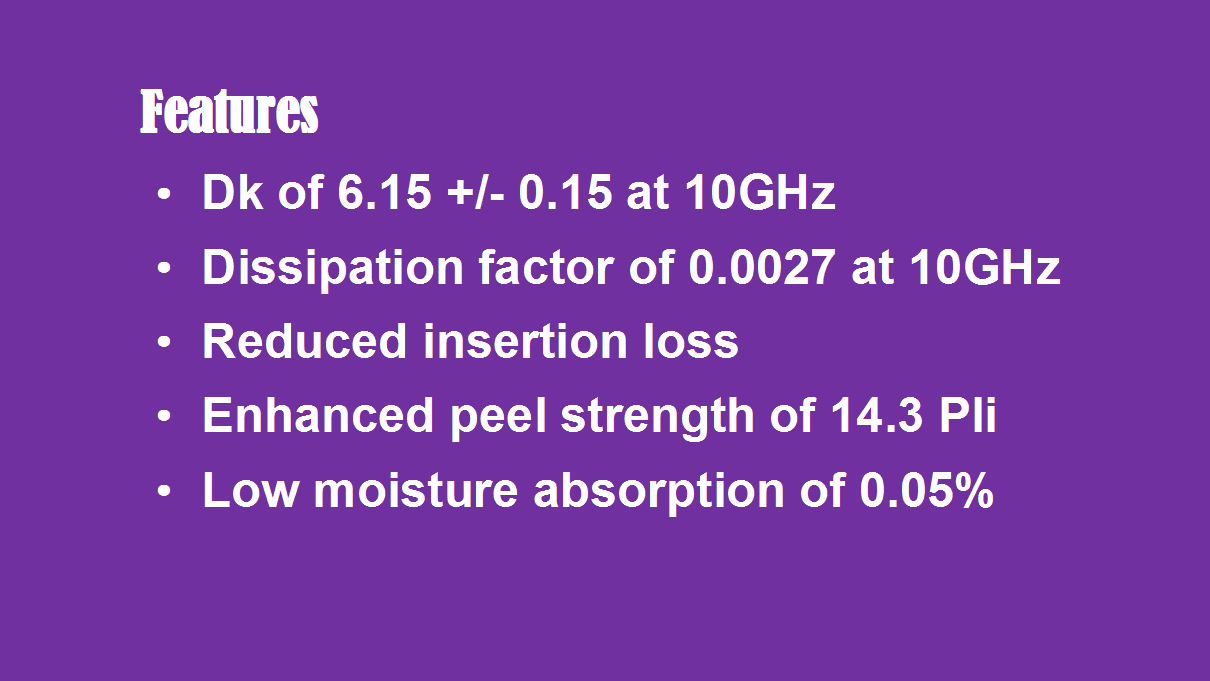

Key Features of RT/duroid 6006

High Dielectric Constant (Dk) – 6.15 ± 0.15 (enables miniaturized circuit designs)
Ultra-Low Loss Tangent (Df) – 0.0027 @ 10GHz (ensures minimal signal loss)
Dual Copper Clad Options – Standard & reverse-treated ED foil (optimized for peel strength or insertion loss)
Low Moisture Absorption – Enhanced reliability in harsh environments
Excellent PTH Reliability – Ideal for multilayer high-frequency PCBs

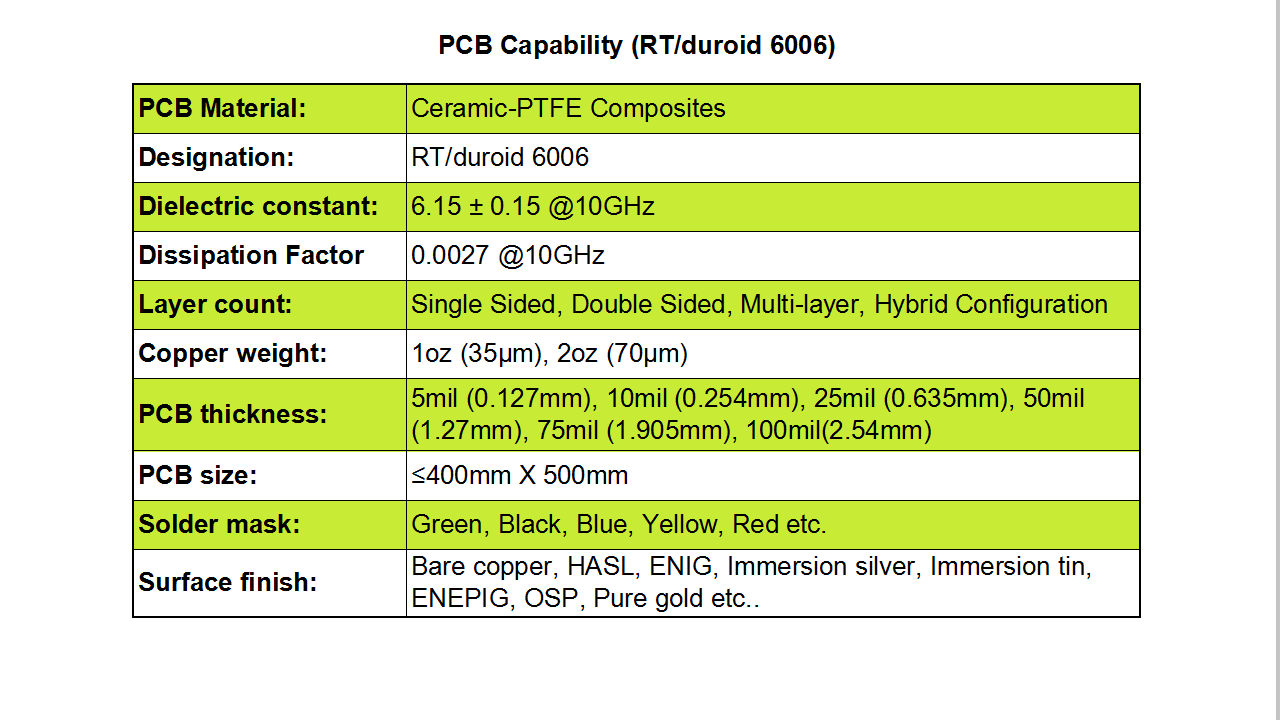

PCB Manufacturing Capabilities

Layer Configurations – Single-sided, double-sided, multilayer & hybrid PCBs
Copper Weights – 1oz (35µm) & 2oz (70µm)
Thickness Options – Standard (25/50/75 mils) & custom (5-200 mils in 5-mil steps)
Max Board Size – 400mm × 500mm
Solder Mask Colors – Green, black, blue, yellow, red & more
Surface Finishes – HASL, ENIG, Immersion Silver/Tin, ENEPIG, OSP, Pure Gold

Applications

Patch Antennas & RF Components
Satellite Communication Systems
High-Power Amplifiers
Avionics & Collision Avoidance Systems
Ground Radar & Defense Electronics
