Copper Clad Laminates

Welcome to our "Copper Clad Laminates" column, your entry point into the essential foundation of printed circuit board manufacturing—where material science meets electrical engineering to enable reliable and high-performance electronics. In this column, we explore the core role of copper clad laminates (CCL), the critical base material that supports, insulates, and interconnects electronic circuits in virtually every modern device.

Copper Clad Laminates represent the backbone of PCB construction, combining mechanical stability with electrical precision through the bonding of conductive copper foil to a dielectric substrate. By selecting from a variety of resin systems, reinforcement materials, and copper types, these laminates provide tailored solutions that meet diverse requirements for thermal management, signal integrity, frequency performance, and environmental durability. Through continuous innovation in materials and processing, copper clad laminates empower the development of more advanced, efficient, and dependable electronic products.

Rogers RT/duroid 5880LZ DK2.00 PTFE Laminates 0.25mm - 1.27mm High Frequency Low Loss PCB Material

RT/duroid® 5880LZ is a filled PTFE composite laminate engineered for demanding stripline and microstrip circuit applications in high-frequency electronics.

Tags: RT/duroid 5880LZ, low DK 2.0, low loss PTFE laminate, high-frequency PCB, RF microwave board, lightweight electronic board, PCB manufacturer material

Wangling F4BM217 DK2.17 PTFE Laminates 0.1mm - 12.0mm RF Microwave PCB Material

F4BM217 is a PTFE-based, fiberglass-reinforced laminate designed for high-frequency printed circuit board applications.

Tags: F4BM217, PTFE PCB, Dk 2.17, low loss 0.001, RF circuit board, high-frequency laminate, microwave board, electronics material

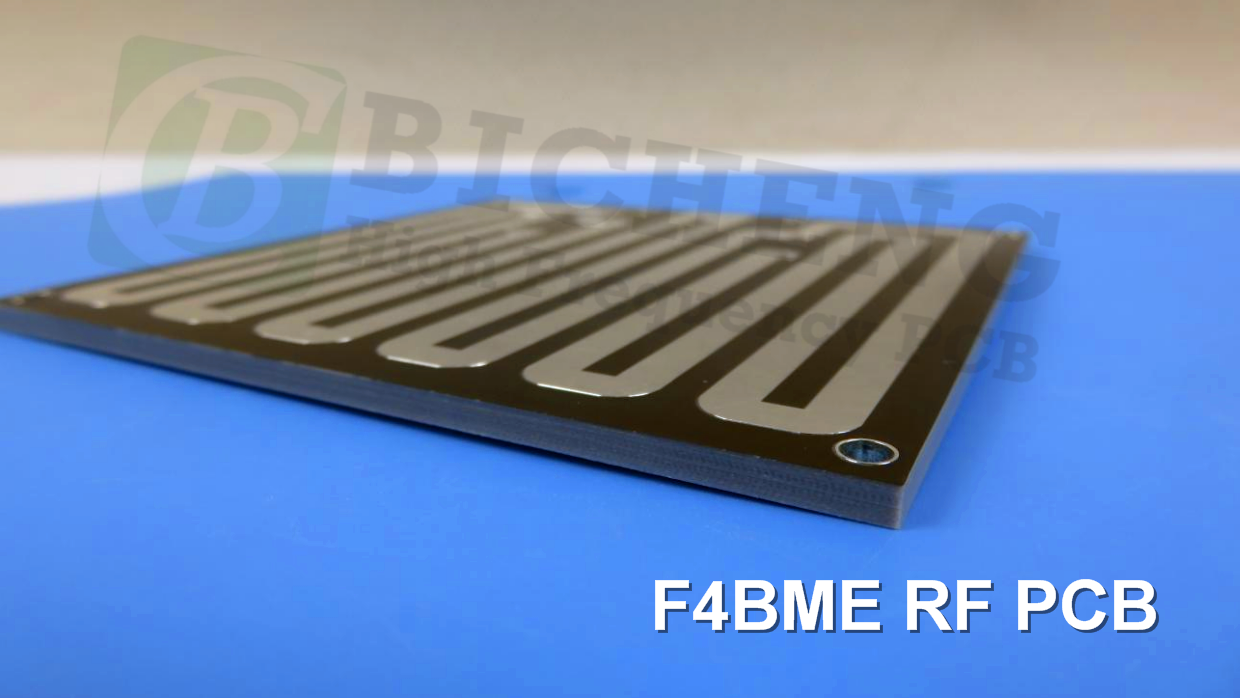

Wangling F4BME217 DK2.17 PIM ≤-159dBc (0.1-12.0mm) Copper Clad Laminate

F4BM217 is a PTFE-based, fiberglass-reinforced laminate designed for high-frequency printed circuit board applications.

Tags: F4BME217, low PIM PCB, Dk 2.17, PTFE RF board, low loss laminate, RTF copper, RF printed circuit board, microwave electronic board

Rogers CuClad 217 DK2.17/2.20 Df0.0009 Copper Clad Laminate

CuClad 217 is a PTFE/woven fiberglass reinforced laminate designed for high-performance microwave printed circuit board applications.

Tags: CuClad 217, PTFE woven fiberglass PCB, Dk 2.17, ultra-low loss 0.0009, RF printed circuit board, isotropic substrate, microwave electronic board

Wangling F4BTMS220 DK2.20 Df0.0009 (More than 0.09mm) Copper Clad Laminate

F4BTMS220 is an advanced ceramic-filled PTFE laminate reinforced with ultra-thin fiberglass cloth, designed for high-reliability RF and microwave printed circuit board applications.

Tags: F4BTMS220, PTFE ceramic PCB, Dk 2.20, ultra-low loss 0.0009, RF printed circuit board, high-frequency laminate, aerospace electronic board

Rogers RT/duroid 5880 DK2.20 Df0.0009 (0.127-9.525mm) Copper Clad Laminate

RT/duroid 5880 is a glass microfiber reinforced PTFE composite designed for high-performance stripline and microstrip printed circuit board applications.

Tags: RT/duroid 5880, PTFE glass microfiber PCB, Dk 2.20, ultra-low loss, RF/microwave printed circuit board, Ku-band electronic board, low Dk laminate

Taconic TLY-5 DK2.20 Df0.0009 (0.2-1.6mm) Copper Clad Laminate

TLY-5 is a high-frequency PCB laminate manufactured by Taconic Company, using lightweight woven fiberglass reinforcement in a PTFE composite.

Tags: TLY-5, lightweight woven fiberglass PCB, Dk 2.20, low loss 0.0009, RF printed circuit board, automotive radar material, millimeter-wave electronic board

Taconic TLY-5Z DK2.20 Df0.0015 (0.254-1.524mm) Copper Clad Laminate

TLY-5 is a high-frequency PCB laminate manufactured by Taconic Company, using lightweight woven fiberglass reinforcement in a PTFE composite.

Tags: TLY-5Z offers a cost-effective alternative to traditional PTFE-rich laminates while maintaining excellent high-frequency performance, making it suitable for high-volume commercial microwave applications.

Rogers DiClad 880 DK2.17/2.20 Df0.0009 (0.508-1.524mm) Copper Clad Laminate

DiClad 880 is a woven fiberglass reinforced PTFE composite laminate designed for high-frequency printed circuit board applications.

Tags: DiClad 880, woven fiberglass PTFE PCB, Dk 2.17/2.20, low loss 0.0009, RF printed circuit board, microwave laminate, electronic board substrate

Rogers IsoClad 917 DK2.17/2.20 Df0.0013 Copper Clad Laminate

IsoClad 917 is a nonwoven fiberglass reinforced PTFE laminate designed for high-frequency printed circuit board applications.

Tags: IsoClad 917, nonwoven fiberglass PTFE PCB, Dk 2.17/2.20, low loss RF board, isotropic printed circuit board, conformal antenna material

Wangling F4BM220 DK2.20 Df0.001 (0.1-12.0mm) Copper Clad Laminate

F4BME220 is a PTFE-based, fiberglass-reinforced high-frequency laminate designed for RF and microwave printed circuit board applications requiring low Passive Intermodulation (PIM) performance.

Tags: F4BM220, Dk 2.20 PTFE board, RF PCB material, low loss laminate,printed circuit board substrate

Wangling F4BME220 DK2.20 Df0.001 PIM ≤-159dBc (0.1-12.0mm) Copper Clad Laminate

F4BME220 is a low-loss PTFE PCB material with stable Dk=2.20 and excellent PIM performance for high-frequency RF electronics and precision circuit design.

Tags: F4BME220, PTFE PCB, DK 2.20, low loss, PIM ≤-159dBc, high frequency, stable CTE

Wangling F4BTMS233 DK2.33 Df0.0010 (0.09mm-) Copper Clad Laminate

F4BTMS233 is an aerospace-grade PTFE PCB laminate reinforced with superfine fiberglass and ceramic, offering ultra-low loss, a stable Dk of 2.33, and excellent thermal performance for high-frequency applications up to 40 GHz.

Tags: F4BTMS233, Ceramic PTFE PCB, DK 2.33, Ultra-low Loss, High Thermal Conductivity, Aerospace Grade

Rogers RT/duroid 5870 DK2.33 Df0.0012 (0.127-1.575mm) Copper Clad Laminate

Rogers RT/duroid 5870 is a glass microfiber reinforced PTFE laminate with a stable dielectric constant of 2.33 and ultra-low loss, designed for exacting high-frequency stripline and microstrip circuit applications.

Tags: Rogers RT/duroid 5870, PTFE PCB, Dk 2.33, Ultra-low Loss, High-Frequency Laminate, RF Material

Taconic TLY-3 DK2.33 Df0.0012 (0.09-1.52mm) Copper Clad Laminate

TLY-3 is a high-performance, low-loss PCB laminate material designed for high-frequency applications such as automotive radar and aerospace communications, offering excellent dimensional stability and superior electrical properties.

Tags: TLY-3, Taconic PCB, automotive radar, aerospace, high-frequency PCB.

Rogers DiClad 870 DK2.33 Df0.0013 (0.79-3.18mm) Copper Clad Laminate

DiClad 870 is a woven fiberglass-reinforced PTFE laminate designed for high-frequency PCB applications, offering excellent dimensional stability, low dielectric constant (2.33), and low dissipation factor (0.0013 at 10 GHz) for enhanced signal integrity.

Tags: DiClad 870, PCB material, low dielectric constant (2.33), low dissipation factor (0.0013@10GHz), woven fiberglass, PTFE laminate, high-frequency PCB, RF applications, signal integrity.

Rogers CuClad 233 DK2.33 Df0.0013 (Various Thickness) PTFE PCB Board Material

Rogers CuClad 233 is a low-loss, isotropic PTFE/woven fiberglass laminate (Dk 2.33, Df 0.0013) designed for high-frequency and phased array PCB applications.

Tags: CuClad 233, Rogers, PTFE woven fiberglass, Dk 2.33, low loss, isotropic, high thermal stability, V-0, military electronics, microwave PCB.

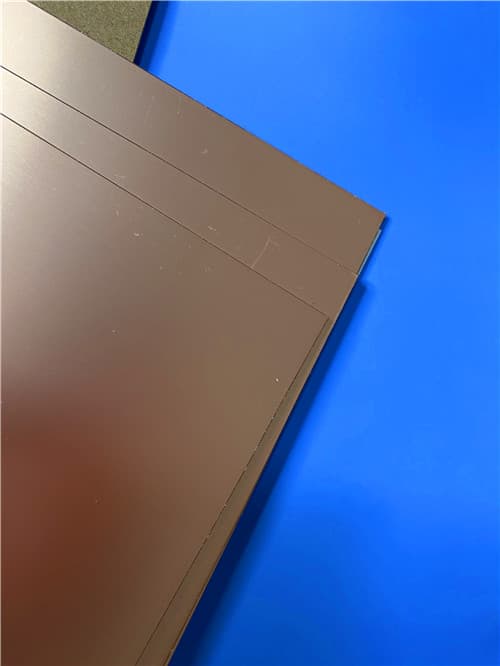

Wangling F4BM233 DK2.33 Df0.0011 (0.1-12.0mm) PTFE Glass Fabric Copper Clad Laminate

Wangling F4BM233 is a cost-effective PTFE/glass fabric laminate (Dk=2.33, Df=0.0011) with ED copper foil, designed for reliable RF and microwave PCB applications requiring low loss and wide operating temperatures (-55°C to +260°C).

Tags: F4BM233, PTFE PCB, low loss, Dk 2.33, ED copper, V-0, thermal stable, RF microwave, cost-effective, wide temp range.

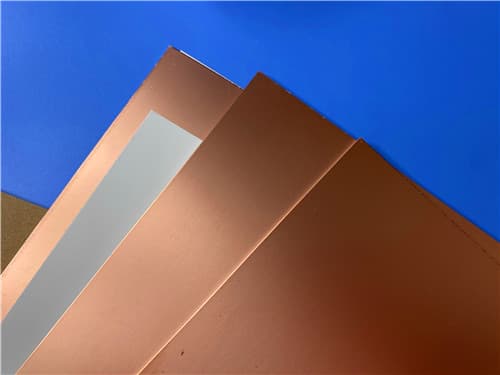

Wangling F4BME233 DK2.33 Df0.0011 (0.1-12.0mm) RTF Copper Clad Laminate

Wangling F4BME233 is a low-PIM PTFE/glass fabric laminate (Dk=2.33, Df=0.0011) with reverse-treated RTF copper foil, designed for high-performance RF, microwave, and antenna PCB applications requiring excellent signal integrity and PIM ≤ -159 dBc.

Tags: F4BME233, PTFE PCB, low PIM, RTF copper, Dk 2.33, low loss, V-0, thermal stable, RF microwave, antenna PCB.

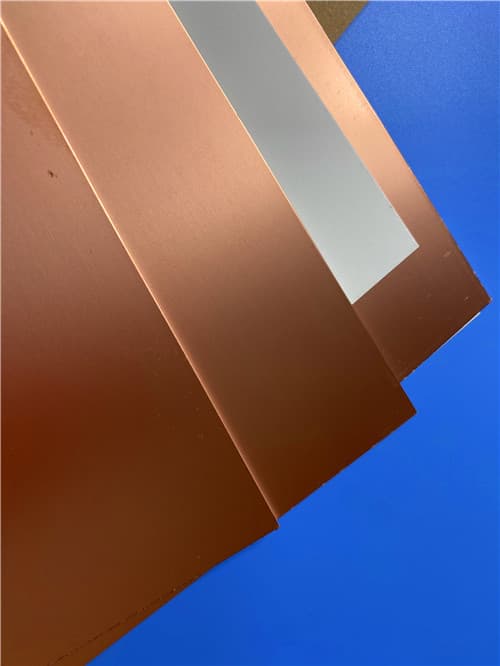

Rogers IsoClad 933 DK2.33 Df0.0016 (Multiple Thickness) Nonwoven PTFE PCB Laminate

Rogers IsoClad 933 is a PTFE/nonwoven fiberglass laminate (Dk=2.33, Df=0.0016) offering high isotropy and flexibility, designed for conformal antennas, stripline circuits, and military applications such as missile guidance and radar systems.

Tags: IsoClad 933, Rogers, nonwoven PTFE, Dk 2.33, low loss, isotropic, conformable, V-0, thermal stable, military electronics

Rogers DiClad 527 DK2.40-2.60 Df0.0017 (0.020-0.060") PTFE/Woven Fiberglass Laminate

Rogers DiClad 527 is a woven fiberglass/PTFE laminate offering a mid-range dielectric constant (Dk 2.40–2.60) with low loss (Df 0.0017), designed for applications requiring excellent dimensional stability and uniform electrical properties, such as filters, couplers, and low-noise amplifiers.

Tags: DiClad 527, Rogers, woven PTFE, Dk 2.40-2.60, low loss, high stability, V-0, low CTE, RF filters, couplers.

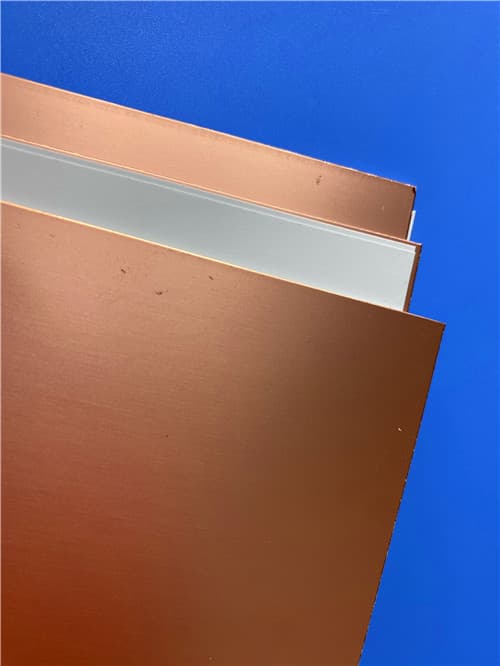

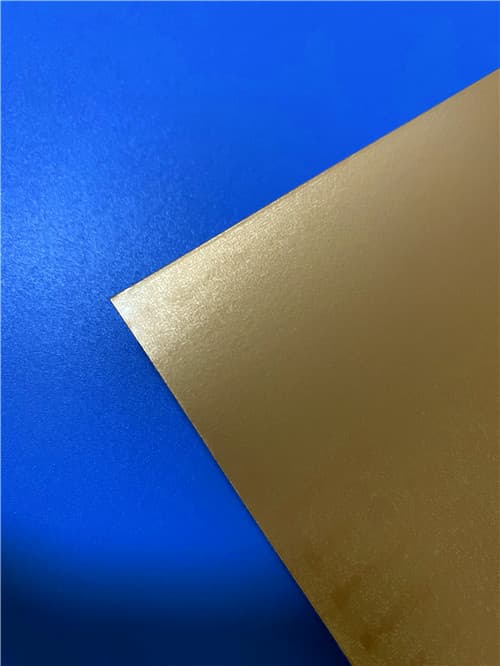

Taconic TLX-0 DK 2.45 Df 0.0009/0.0012 (0.127–6.35mm) Fiberglass Reinforced PTFE Laminate

TLX-0 is a low-DK, ultra-low loss PTFE fiberglass laminate designed for high-frequency and high-reliability RF/microwave applications, especially suited for aerospace and severe-environment use.

Tags: TLX-0, RF Microwave Substrate, PTFE Fiberglass Laminate, Low DK (2.45), Ultra-Low Loss, Low Outgassing, Space-Grade, High Reliability, Dimensional Stability, UL94 V-0

Taconic TLX-6 DK 2.65 Df0.0016/0.0022 (0.089-6.35mm) Copper Clad Laminate

TLX-6 is a high-DK, low-loss PTFE fiberglass laminate designed for reliable RF/microwave applications in aerospace, defense, and telecommunications systems.

Tags: TLX-6, PTFE Microwave Laminate, Fiberglass Reinforced, High Dielectric Constant, Low Loss, High Frequency PCB, Dimensional Stability, UL94 V-0, Aerospace Grade, RF Microwave Applications

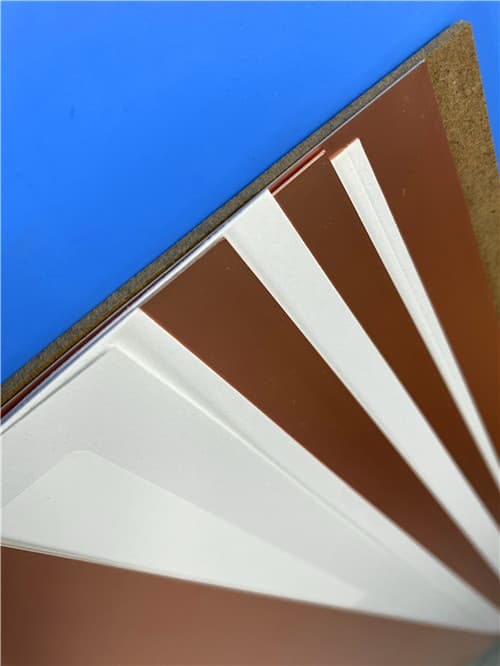

Wangling F4BM245 DK2.45 Df0.0012 (0.1-12.0mm) Copper Clad Laminate

F4BM245 is a PTFE fiberglass reinforced copper clad laminate with ED copper foil, featuring a stable dielectric constant of 2.45 and low loss characteristics, designed for general RF and microwave applications without PIM requirements.

Tags: F4BM245, PTFE Fiberglass Laminate, Low Loss, DK 2.45, ED Copper Foil, RF Microwave PCB, Dimensional Stability, UL94 V-0, High Frequency

Wangling F4BM245 DK2.45 Df0.0012 (0.1-12.0mm) Copper Clad Laminate

F4BM245 is a PTFE fiberglass reinforced copper clad laminate with ED copper foil, featuring a stable dielectric constant of 2.45 and low loss characteristics, designed for general RF and microwave applications without PIM requirements.

Tags: F4BM245, PTFE Fiberglass Laminate, Low Loss, DK 2.45, ED Copper Foil, RF Microwave PCB, Dimensional Stability, UL94 V-0, High Frequency

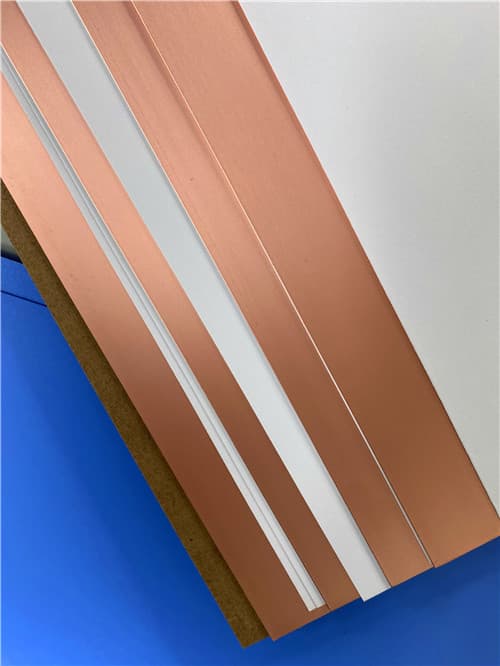

Wangling F4BME245 DK2.45 Df0.0012 (0.1-12.0mm) RTF Copper Clad Laminate

Wangling F4BME245 is a low-PIM PTFE/glass fabric laminate (Dk=2.45, Df=0.0012) featuring reverse-treated RTF copper foil, engineered for high-frequency RF and antenna PCB applications requiring excellent signal integrity, precise circuit control, and PIM ≤ -159 dBc.

Tags:F4BME245, PTFE PCB, low PIM, RTF copper, Dk 2.45, low loss, V-0, thermal stable, RF microwave, antenna applications

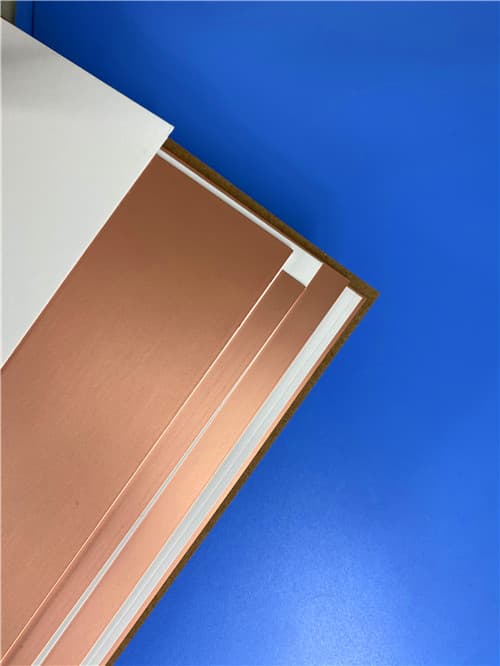

Taconic TLX-9 DK2.50 Df0.0019 (0.13-3.18mm+) PTFE/Woven Glass Laminate

Taconic TLX-9 is a precision PTFE/woven glass laminate (Dk=2.50 ±0.04, Df=0.0019) offering excellent mechanical and thermal properties with virtually no moisture absorption, ideal for radar systems, phased array antennas, and high-frequency RF components.

Tags: TLX-9, Taconic, PTFE woven glass, Dk 2.50, low loss, UL94 V-0, high thermal stability, low moisture, RF microwave, antenna PCB

Rogers AD250C DK2.50 Df0.0013 (0.020-0.060") Antenna Grade Laminate

Rogers AD250C is a glass-reinforced PTFE laminate (Dk=2.50, Df=0.0013) engineered for high-performance wireless antennas, offering controlled dielectric constant, excellent PIM performance, and very low moisture absorption for reliable RF applications.

Tags:AD250C, Rogers, antenna PCB, low PIM, Dk 2.50, low loss, PTFE woven glass, V-0, high peel strength, RF components

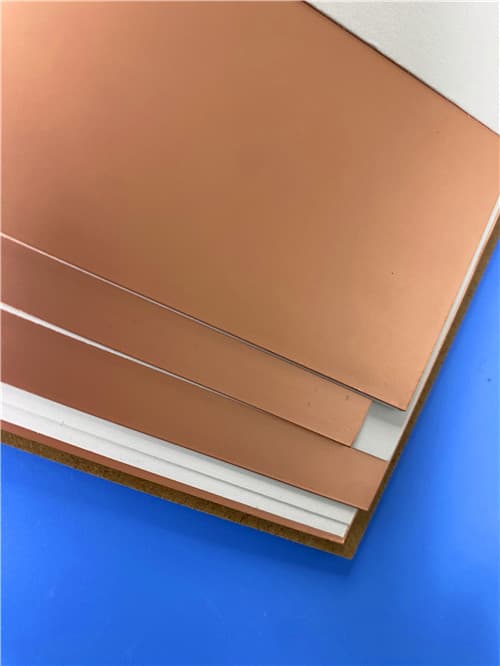

Wangling F4BTMS255 DK2.55 Df0.0012 (0.127-6.35mm+) Ceramic-Filled PTFE Laminate

Wangling F4BTMS255 is an aerospace-grade, ceramic-filled PTFE laminate reinforced with ultra-thin fiberglass (Dk=2.55, Df=0.0012 @10GHz), offering exceptional frequency and thermal stability, ultra-low loss, and near-elimination of glass weave effects for high-reliability microwave and phased array applications.

Tags:F4BTMS255, Wangling, ceramic-filled PTFE, ultra-low loss, Dk 2.55, space-grade, high reliability, low CTE, V-0, high thermal conductivity, aerospace PCB

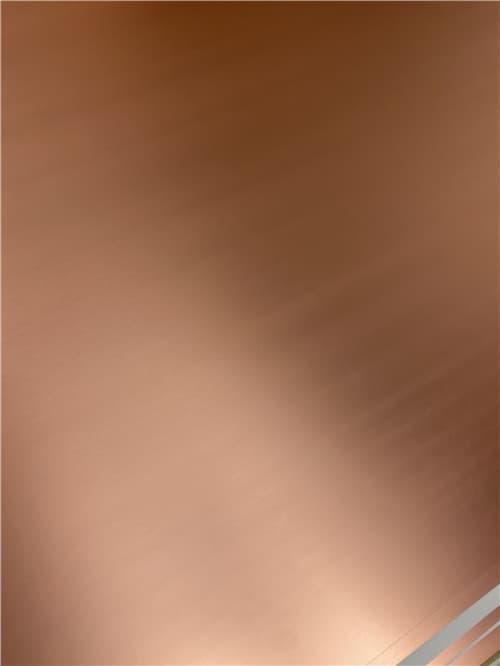

AGC TLX-8 DK2.55 Df0.0018 (0.064-6.35mm) PTFE/Woven Fiberglass Laminate

AGC TLX-8 is a high-volume, fiberglass-reinforced PTFE microwave substrate (Dk=2.55±0.04, Df=0.0018) offering excellent mechanical and thermal properties, low PIM (<-160 dBc), and long space heritage for reliable RF and microwave applications in severe environments.

Tags: TLX-8, AGC, PTFE woven glass, Dk 2.55, low loss, low PIM, UL94 V-0, space-grade, high reliability, RF microwave

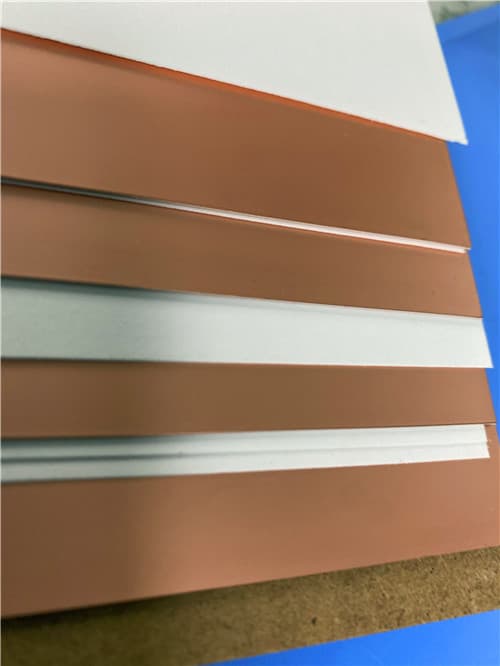

Rogers AD255C DK2.55 Df0.0013 (0.020-0.125") Antenna Grade Laminate

Rogers AD255C is a glass-reinforced PTFE laminate (Dk=2.55, Df=0.0013) engineered for high-performance wireless antenna applications, featuring controlled dielectric constant, excellent PIM performance (<-159 dBc), very low moisture absorption (0.03%), and high copper peel strength.

Tags:AD255C, Rogers, antenna PCB, low PIM, Dk 2.55, low loss, PTFE woven glass, V-0, high reliability, RF components

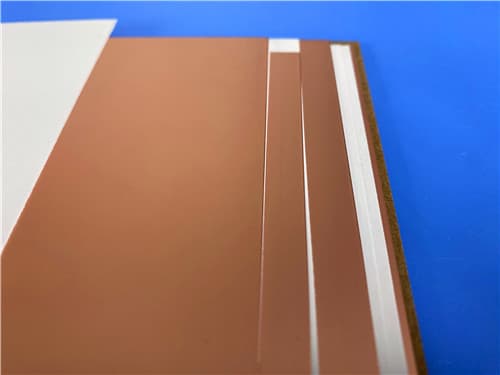

Wangling F4BM255 DK2.55 Df0.0013 (0.1-12.0mm) ED Copper Clad Laminate

Wangling F4BM255 is a PTFE/glass fabric laminate (Dk=2.55±0.05, Df=0.0013 @10GHz) featuring standard ED copper foil, offering low loss, excellent dimensional stability, wide operating temperature (-55°C to +260°C), and cost-effective performance for RF and microwave PCB applications without PIM requirements.

Tags:F4BM255, Wangling, PTFE woven glass, Dk 2.55, low loss, ED copper, V-0, thermal stable, cost-effective, RF microwave
