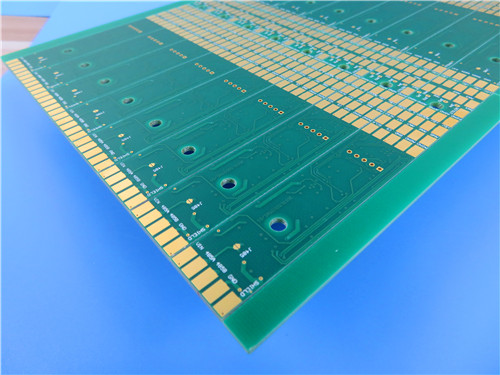

An In-Depth Look at IT-180A 4-Layer PCBs with Superior Thermal Properties
(Custom PCBs are tailored products; the images and specifications provided are for reference only.)
Introduction of IT-180A
IT-180ATC is a high Tg (175°C by DSC) multifunctional filled epoxy known for its excellent thermal reliability and CAF resistance. It is suitable for various applications and can withstand lead-free assembly processes at temperatures up to 260°C.
Typical Properties
Glass Transition Temperature (Tg): 175°C by DSC
Lead-Free Process Compatibility: Yes
Coefficient of Thermal Expansion: X-Axis 11-13 ppm/°C, Y-Axis 13-15 ppm/°C
Time to Delaminate (Copper removed): T260 of 60 minutes, T288 of 20 minutes
Dielectric Constant (DK): 4.4 at 1 GHz, 4.5 at 1 MHz
Loss Tangent (Df): 0.014 at 1 MHz, 0.015 at 1 GHz
CAF Resistance: Excellent
Through-Hole Reliability: Good
Moisture Resistance: 0.1%
Flammability Rating: UL94-V0 for laminate and laminated prepreg
Basic PCB Specifications
| Specification | Details | |
|---|---|---|
| Base Material | FR-4 (IT-180) | |
| Layer Count | 4 layers<\/td> | |
| Board Dimensions<\/td> | 130mm x 175mm (6 PCS), ± 0.15mm<\/td> | |
| Minimum Trace/Space<\/td> | 4/6 mils<\/td> | |
| Minimum Hole Size<\/td> | 0.2mm<\/td> | |
| Blind Vias<\/td> | L1-L2<\/td> | |
| Finished Board Thickness<\/td> | 1.6mm<\/td> | |
| Finished Copper Weight<\/td> | 1oz (1.4 mils) outer layers<\/td> | |
| Via Plating Thickness<\/td> | 20 µm<\/td> | |
| Surface Finish<\/td> | Immersion Gold<\/td> | |
| Top Silkscreen<\/td> | White<\/td> | |
| Bottom Silkscreen<\/td> | White<\/td> | |
| Top Solder Mask<\/td> | Green<\/td> | |
| Bottom Solder Mask<\/td> | Green<\/td> | |
| Electrical Testing<\/td> | 100% electrical test prior to shipment<\/td> | |
| Countersink Holes<\/td> | On the top side<\/td> |
PCB Stack-Up (4-Layer Rigid PCB)
| Layer | Material | Thickness |
|---|---|---|
| Copper Layer 1 | Copper | 0.035 mm |
| Prepreg | 7628H X 1 | 0.21 mm |
| Copper Layer 2 | Copper | 0.035 mm |
| IT-180ATC Core | Core | 1.03 mm (40.5 mil) |
| Copper Layer 3 | Copper | 0.035 mm |
| Prepreg | 7628H X 1 | 0.21 mm |
| Copper Layer 4 | Copper | 0.035 mm |
PCB Statistics
Components: 59
Total Pads: 137
Through Hole Pads: 86
Top SMT Pads: 51
Bottom SMT Pads: 12
Vias: 73
Nets: 4
Artwork and Standards Information
Type of Artwork Supplied: Gerber RS-274-X
Accepted Standard: IPC-Class-2
Availability: Worldwide
Typical Applications
Automotive engine room ECU
Backplanes
Data storage
Server and networking equipment
Telecommunications
