Rogers 3006 High Frequency PCB RO3006 RF PCB 10mil, 25mil, and 50mil Thick Coating Options (Immersion Gold, Tin, Silver, and HASL)

(PCBs are custom-made products; the images and specifications provided are for reference only.)


Introduction

Welcome, everyone!


Today, we will discuss the RO3006 high-frequency PCBs.


RO3006 high-frequency circuit laminates are ceramic-filled PTFE composites designed for commercial microwave and RF applications. A key feature of these materials is their exceptional electrical performance, along with stable and consistent mechanical properties. This reliability allows designers to create multi-layer boards without issues related to warpage or reliability.


RO3006 high-frequency PCBs are available in double-sided, multi-layer, and hybrid constructions. They can feature finished copper weights ranging from 0.5oz to 2oz, thicknesses from 0.3mm to 1.3mm, and a maximum size of 400mm by 500mm. Surface finishes include bare copper, hot air leveling, and immersion gold.


Features and Applications

Key Features:


1.Outstanding Mechanical Properties: Reliable for stripline and multi-layer board constructions, even under varying temperatures.
2.Uniform Mechanical Properties: Ideal for use in epoxy glass multi-layer board hybrid designs.
3.Low In-Plane Expansion Coefficient: Matches that of copper, enhancing the reliability of surface-mounted assemblies. This characteristic is particularly beneficial for applications sensitive to temperature fluctuations, ensuring excellent dimensional stability.

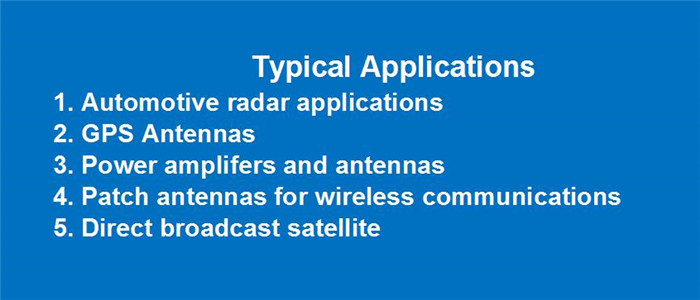

Applications



PCB Specifications

Click to expand/collapse the table

Specification

Details

PCB Material:

Ceramic-filled PTFE composite

Designation:

RO3006

Dielectric Constant:

6.15 ±0.3 (process), 6.5 (design)

Layer Count:

2 Layer, Multilayer, Hybrid PCB

Copper Weight:

0.5oz (17 µm), 1oz (35 µm), 2oz (70 µm)

PCB Thickness:

10mil (0.254mm), 25mil (0.635mm), 50mil (1.27mm)

PCB Size:

≤400mm x 500mm

Solder Mask:

Green, Black, Blue, Yellow, Red, etc.

Surface Finish:

Bare copper, HASL, ENIG, OSP, etc.


The standard color for the RO3006 PCB is white.


The manufacturing process for RO3006 high-frequency PCBs closely resembles that of standard PTFE PCBs, making it suitable for high-volume production, thus providing a competitive market advantage.


If you have any questions, please feel free to contact us.
