Rogers AD250C RF and Microwave PCB - 60mil (1.524mm) Substrate with Immersion Gold
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
General Description
The Rogers AD250C RF and Microwave PCB is a double-layer high-frequency circuit board designed for demanding antenna and RF applications. Built on Rogers AD250C substrates with a dielectric constant of 2.50 ± 0.04 and a low dissipation factor of 0.0013, this PCB offers exceptional performance for high-frequency systems. The board is 60mil (1.524mm) thick with 1oz copper on both sides, featuring immersion gold on the pads for excellent solderability. Designed with a size of 90mm x 90mm, it is manufactured in compliance with IPC Class II standards and undergoes 100% electrical testing before shipment. Each order includes 25 boards vacuum-packed for secure delivery.

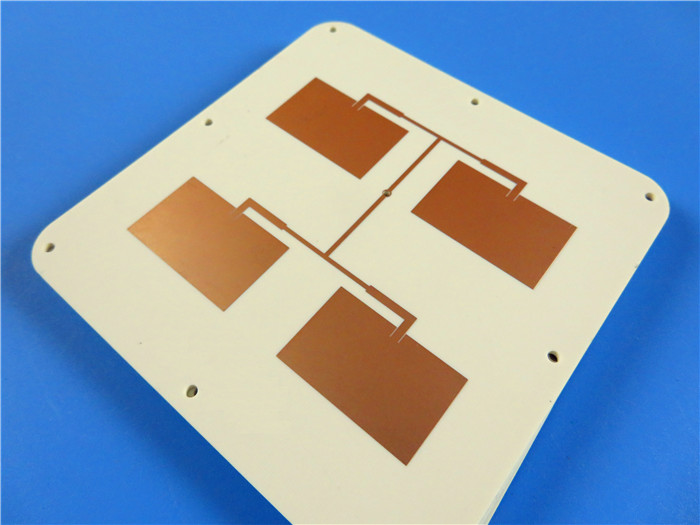

.jpg)
PCB Specifications
| PCB SIZE | 90mm x 90mm=1 piece |
| BOARD TYPE | High Frequency PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | N/A |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate top layer |
| AD250C 1.524mm | |
| copper ------- 35um(1 oz)+plate bot layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 80 mil |
| Minimum / Maximum Holes: | 1.0 mm / 2.8 mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 9 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | AD250C 1.524mm |
| Final foil external: | 2.0 oz |
| Final foil internal: | 2.0 oz |
| Final height of PCB: | 1.6 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold, 73.6% |
| Solder Mask Apply To: | Both sides |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 1.0mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Features & Benefits
1.Very Low Loss: PTFE and ceramic-filled composite with a loss tangent of 0.0014 at 10 GHz.
2.Controlled Dielectric Constant (Dk): 2.50 ± 0.04 for consistent signal integrity.
3.Low Profile Copper: Reduces conductive losses and improves antenna efficiency.
4.Low PIM Performance: Ideal for antenna applications, ensuring minimal signal distortion.
5.High Production Capacity: 16,000㎡ workshop with a monthly output of 30,000㎡ and 8,000 types of PCBs.
6.Certified Manufacturing: ISO9001, ISO14001, IATF16949, ISO13485, and UL certified.
7.High On-Time Delivery Rate: Over 98% on-time delivery.
8.Prototype to Volume Production: Capable of handling both prototype and large-scale production.
Typical Applications
1.Cellular Infrastructure Base Station Antennas
2.Automotive Telematics Antenna Systems
3.Commercial Satellite Radio Antennas
