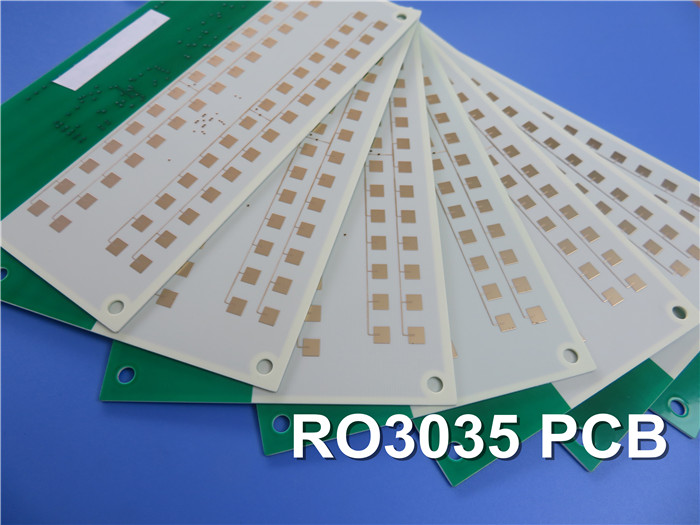

Rogers RO3035 RF Printed Circuit Board 2-Layer Rogers 3035 60mil 1.524mm Microwave PCB with Immersion Gold

(Note: Printed Circuit Boards (PCBs) are custom-made products. Images and specifications provided are for reference only.)


Overview of Rogers RO3035 High Frequency Circuit Materials

The Rogers RO3035 high frequency circuit materials consist of ceramic-filled PTFE composites, specifically designed for commercial microwave and RF applications. These materials provide exceptional electrical and mechanical stability at competitive prices, ensuring consistent mechanical properties. This reliability enables designers to create multi-layer board configurations without facing warpage or reliability issues.


The RO3035 materials feature a coefficient of thermal expansion (CTE) of 17 ppm/℃ in both the X and Y axes, closely matching the expansion coefficient of copper. This compatibility results in excellent dimensional stability, with typical etch shrinkage after processing being less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, ensuring superior reliability for plated through-holes, even in harsh environments.


Typical Applications

  1. 1.Automotive radar systems
  2. 2.Cellular telecommunications networks
  3. 3.Datalink over cable systems
  4. 4.Direct broadcast satellite technology
  5. 5.Global Positioning System (GPS) antennas
  6. 6.Patch antennas for wireless communication
  7. 7.Power amplifiers and antennas
  8. 8.Power backplanes
  9. 9.Remote meter reading devices


PCB Specifications

Click to expand/collapse the table

Rogers RO3035 60mil 1.524mm High Frequency PCB DK3.5 RF PCB for Remote Meter Readers

PCB SIZE

100 x 100mm=6PCS

BOARD TYPE

Double sided PCB

Number of Layers

2 layers

Surface Mount Components

YES

Through Hole Components

YES

LAYER STACKUP

copper ------- 18um(0.5 oz)+plate TOP layer

RO3035 1.524mm

copper ------- 18um(0.5 oz) + plate  BOT Layer

TECHNOLOGY



Minimum Trace and Space:

14 mil / 14 mil

Minimum / Maximum Holes:

0.4 mm / 4.0 mm

Number of Different Holes:

1

Number of Drill Holes:

1

Number of Milled Slots:

0

Number of Internal Cutouts:

0

Impedance Control:

no

Number of Gold finger:

0

BOARD MATERIAL



Glass Epoxy:

RO3035 1.524mm

Final foil external:

1 oz

Final foil internal:

N/A

Final height of PCB:

1.6 mm ±0.16mm

PLATING AND COATING



Surface Finish

Immersion Gold

Solder Mask Apply To:

N/A

Solder Mask Color:

N/A

Solder Mask Type:

N/A

CONTOUR/CUTTING

Routing

MARKING



Side of Component Legend

N/A

Colour of Component Legend

N/A

Manufacturer Name or Logo:

N/A

VIA

Plated through hole(PTH), minimum size 0.4mm.

FLAMIBILITY RATING

UL 94-V0 Approval MIN.

DIMENSION TOLERANCE



Outline dimension:

0.0059"

Board plating:

0.0029"

Drill tolerance:

0.002"

TEST

100% Electrical Test prior shipment

TYPE OF ARTWORK TO BE SUPPLIED

email file, Gerber RS-274-X, PCBDOC etc

SERVICE AREA

Worldwide, Globally.



Data Sheet for Rogers 3035 (RO3035)

Click to expand/collapse the table

RO3035 Typical Value

Property

RO3035

Direction

Units

Condition

Test Method

Electrical Properties











Dielectric Constant,εProcess

3.50±0.05

Z



10 GHz/23℃

IPC-TM-650 2.5.5.5 Clamped Stripline

Dielectric Constant,εDesign

3.6

Z



8GHz to 40 GHz

Differential Phase Length Method

Dissipation Factor,tanδ

0.0015

Z



10 GHz/23℃

IPC-TM-650 2.5.5.5

Thermal Coefficient of ε

-45

Z

ppm/℃

10 GHz -50℃to 150℃

IPC-TM-650 2.5.5.5

Volume Resistivity

107



MΩ.cm

COND A

IPC 2.5.17.1

Surface Resistivity

107



MΩ

COND A

IPC 2.5.17.1

Thermal Properties











Td

500



℃ TGA



ASTM D 3850

Coefficient of Thermal Expansion
(-55 to 288℃)

17
17
24

X
Y
Z

ppm/℃

23℃/50% RH

IPC-TM-650 2.4.4.1

Thermal Conductivity

0.5



W/M/K

50℃

ASTM D 5470

Mechanical Properties











Copper Peel Stength

10.2



Ib/in.

1oz,EDC After Solder Float

IPC-TM 2.4.8

Young's Modulus

1025
1006



MPa

23℃

ASTM D 638

Dimensional Stability (MD, CMD)

-0.11          0.11



mm/m

Condition A

IPC TM-650 2.2.4

Physical Properties











Flammability

V-0







UL 94

Moisture Absorption

0.04



%

D48/50

IPC-TM-650 2.6.2.1

Density

2.1



gm/cm3

23℃

ASTM D 792

Lead-free Process Compatible

Yes
