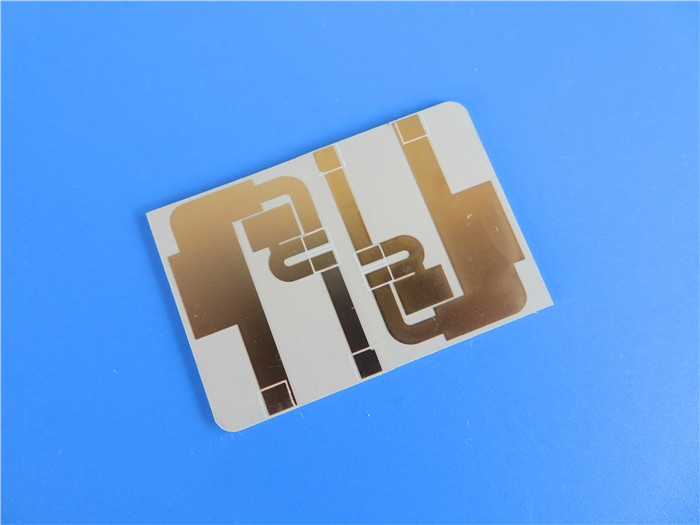

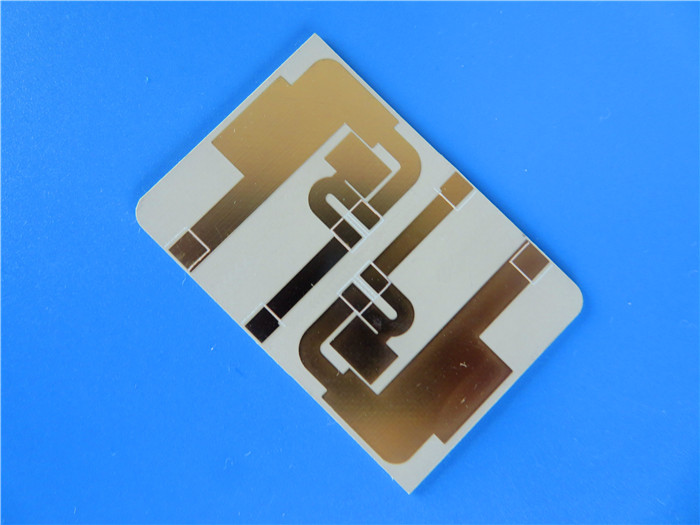

Taconic CER-10 RF Printed Circuit Board 2-Layer CER-10 62mil 1.58mm PCB with Immersion Gold

(Printed Circuit Boards are custom-made products; the images and specifications shown are for reference only.)

CER-10 is a high-performance organic-ceramic DK-10 laminate from the Taconic ORCER family. This laminate features a woven glass reinforcement, offering exceptional interlaminar bond strength and excellent solder resistance. Its proprietary formulation results in low moisture absorption and consistent electrical properties.

Benefits of CER-10:

Exceptional interlaminar bond strength
Low moisture absorption
Enhanced dimensional stability
Minimal Z-axis expansion
Stable dielectric constant over frequency
Increased flexural strength
Circuit board miniaturization

Applications:

Power amplifiers
Filters and couplers
Passive components

The woven glass reinforcement of CER-10 ensures excellent dimensional stability, enhancing its flexural strength. This DK-10 laminate exhibits low Z-axis expansion (CTE 46 ppm/°C), providing reliable plated-through-hole performance in extreme thermal environments.

CER-10 laminates are rated V-0 for flammability and are tested in accordance with IPC-TM 650 standards. Each shipment includes a certificate of conformance with lot-specific data.

Our PCB Capability: CER-10

PCB Capability (CER-10)
PCB Material:	Organic-ceramic Laminate based on Woven Glass Reinforcement.
Designation:	CER-10
Dielectric constant:	10
Layer count:	Double Layer, Multilayer, Hybrid PCB
Copper weight:	0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness:	25mil (0.635mm), 30mil(0.762mm), 47mil(1.194mm),             50mil (1.27mm)
PCB size:	≤400mm X 500mm
Solder mask:	Green, Black, Blue, Yellow, Red etc.
Surface finish:	Bare copper, HASL, ENIG,Immersion Silver, Immersion Tin and OSP etc..

Typical Values for CER-10
