Taconic TLY-5Z High Frequency PCB - 50mil (1.27mm) 2-Layer Printed Circuit Board with Immersion Gold for Low-Weight Antennas
(Printed Circuit Boards are custom-made products; the images and parameters shown are for reference only.)
General Description

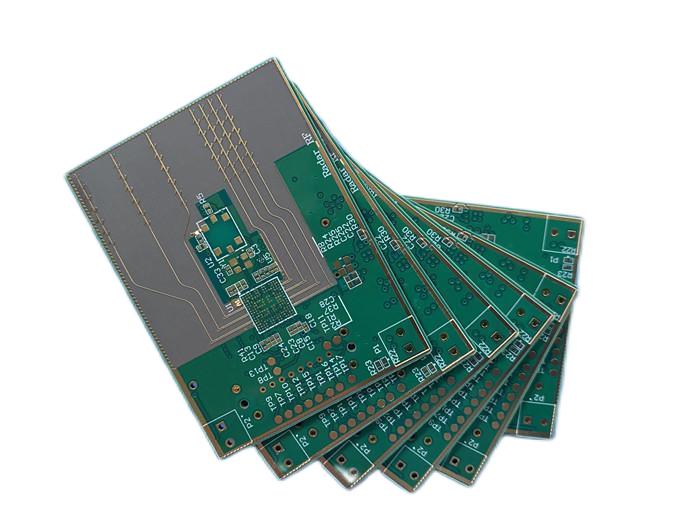

The Taconic TLY-5Z High Frequency PCB is a double-layer circuit board designed for low-weight antenna applications. Built on Taconic TLY-5Z substrate with a 50mil (1.27mm) thickness, it starts with 0.5oz copper and is finished with 1oz copper. The board features a green solder mask on both sides and immersion gold plating on the pads. Manufactured in compliance with IPC Class 2 standards, all boards undergo 100% electrical testing (via flying probe or test fixture) before shipment to ensure quality and reliability.
.jpg)
PCB Specifications
| PCB SIZE | 72 x 55mm=1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
| TLY-5Z 0.762mm | |
| copper ------- 17um(0.5 oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil / 4 mil |
| Minimum / Maximum Holes: | 0.3 mm / 3.0 mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 97 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | TLY-5Z 0.762mm |
| Final foil external: | 1.0 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.8 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold, 31.8% |
| Solder Mask Apply To: | Top side and bottom side |
| Solder Mask Color: | Green |
| Solder Mask Type: | LPI |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | Component side |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.3mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Our Advantages
1.Comprehensive PCB Capabilities: Supporting research, development, sales, and marketing.
2.Certified Manufacturing: PCB products and processes are certified by authorized organizations.
3.Large Production Facility: 16,000㎡ workshop with a monthly output capacity of 30,000㎡.
4.High Production Volume: Capable of producing 8,000 types of PCBs per month.
5.Quick Turnaround: Fast CADCAM checking and free PCB quotations.
6.Flexible Ordering: No minimum order quantity (MOQ); single-piece orders are accepted.
7.Experienced Team: Over 19 years of expertise in high-frequency PCB manufacturing.
8.Prototype to Volume Production: Capable of handling both prototype and large-scale production.
9. Reliability: On-time delivery rate >98%, customer complaint rate <1%.
10.Quality Standards: IPC Class 2 and IPC Class 3 compliant.
.jpg)
Our PCB Capabilities (2022)
| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Material | RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD450, AD600, AD1000, TC350; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc. |
| Maximum Size | Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t＜0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--350µm (1oz-10oz) |
| Inner Copper Thickness | 17µm--350µm (0.5oz - 10oz) |
| Drill Hole(Mechanical) | 0.0079" - 0.25" (0.2mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc. |
Appendix: Typical Values of TLY-5Z
| TLY-5Z Typical Values | |||||
| Property | Test Method | Unit | Value | Unit | Value |
| Dk @ 1.9 GHz | IPC-650 2.5.5.5.1 Mod. | 2.20+/- 0.04 | 2.20+/- 0.04 | ||
| Df @ 1.9 GHz | IPC-650 2.5.5.5.1 Mod. | 0.001 | 0.001 | ||
| Df @ 10 GHz | IPC-650 2.5.5.5.1 Mod. | 0.0015 | 0.0015 | ||
| Tc(D)K (-55 ~150°C) | IPC-650 2.5.5.6 Mod. | ppm/°C | -72 | ppm/°C | -72 |
| Dielectric Breakdown Voltage | IPC-650 2.5.6 | kV | 45 | kV | 45 |
| Dielectric Strength | IPC-650 2.5.6.2 | V/mil | 770 | V/mm | 30,315 |
| Moisture Absorption | IPC-650 2.6.2.1 | % | 0.03 | % | 0.03 |
| Peel Strength (1 oz. copper) | IPC-650 2.4.8 | lbs./inch | 7 | N/mm | 1.3 |
| Volume Resistivity | IPC-650 2.5.17.1 | Mohms/cm | 10^9 | Mohms/cm | 10^9 |
| Surface Resistivity | IPC-650 2.5.17.1 | Mohms | 10^8 | Mohms | 10^8 |
| Tensile Strength (MD) | IPC-650 2.4.18.3 | psi | 9137 | N/mm2 | 63 |
| Tensile Strength (CD) | IPC-650 2.4.18.3 | psi | 9572 | N/mm2 | 66 |
| Tensile Modulus (MD) | IPC-650 2.4.18.3 | psi | 182,748 | N/mm2 | 1260 |
| Tensile Modulus (CD) | IPC-650 2.4.18.3 | psi | 165,344 | N/mm2 | 1140 |
| Elongation (MD) | IPC-650 2.4.18.3 | % | 6 | % | 6 |
| Elongation (CD) | IPC-650 2.4.18.3 | % | 6.9 | % | 6.9 |
| Flex Strength (MD) | ASTM D790 | psi | 10,300 | N/mm2 | 71 |
| Flex Strength (CD) | ASTM D790 | psi | 11,600 | N/mm2 | 80 |
| Flex Modulus (MD) | ASTM D790 | psi | 377,100 | N/mm2 | 2600 |
| Flex Modulus (CD) | ASTM D790 | psi | 432,213 | N/mm2 | 2980 |
| Dimensional Stability (MD) | IPC-650 2.4.39 (Bake) | % (10 mil) | -0.05 | % (30 mil) | -0.05 |
| Dimensional Stability (CD) | IPC-650 2.4.39 (Bake) | % (10 mil) | -0.17 | % (30 mil) | -0.11 |
| Dimensional Stability (MD) | IPC-650 2.4.39 (Stress) | % (10 mil) | -0.07 | % (30 mil) | -0.07 |
| Dimensional Stability (CD) | IPC-650 2.4.39 (Stress) | % (10 mil) | -0.22 | % (30 mil) | -0.14 |
| Density (Specific Gravity) | IPC-650 2.3.5 | g/cm3 | 1.92 | g/cm3 | 1.92 |
| Specific Heat | IPC-650 2.4.50 | J/g°C | 0.95 | J/g°C | 0.95 |
| Thermal Conductivity | IPC-650 2.4.50 | W/M*K | 0.2 | W/M*K | 0.2 |
| CTE (x-y) (50 - 150°C) | IPC-650 2.4.41 | ppm/ºC | 30-40 | ppm/ºC | 30-40 |
| CTE (z) (50 - 150°C) | IPC-650 2.4.41 | ppm/ºC | 130 | ppm/ºC | 130 |
| Hardness | ASTM D2240 (Durometer) | - | 68 | - | 68 |
| UL-94 Flammability Rating | UL-94 | V-0 | V-0 | ||
