TLY-3 Electronics PCB Material for High-Frequency PCB Board Design
Brief Introduction

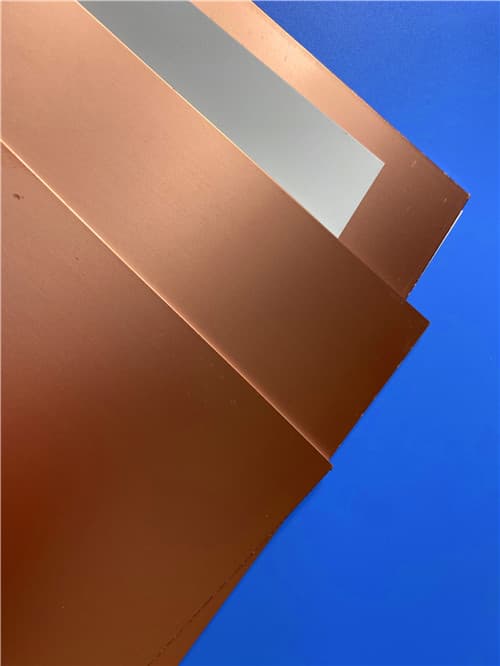

TLY-3 laminates are manufactured with very lightweight woven fiberglass and are much more dimensionally stable than chopped fiber reinforced PTFE composites. The woven matrix in the TLY-3 material yields a more mechanically stable laminate that is suitable for high volume manufacturing. The low dissipation factor enables successful deployment for automotive radar applications designed at 77 GHz as well as other antennas in millimeter wave frequencies. Comparative OEM testing at 77 GHz has shown equivalent insertion losses/dielectric properties compared to chopped fiber reinforced competitors, with the primary benefit being much higher manufacturing yields. TLY-3FF is a highly flexible variant designed for applications requiring installation with a bend radius, offering flexibility comparable to chopped fiber reinforced PTFE laminates but with a lower loss tangent, along with the dimensional stability typical of standard fiberglass reinforced laminates.
Technical Features & Benefits
Dimensionally Stable
Lowest Df
High Peel Strength
Low Moisture Absorption
Uniform, Consistent Dk
Laser Ablatable
.jpg)
Typical Properties:RT/duroid 5870
| Properties | Conditions | Typical Value | Unit | Test Method |
|---|---|---|---|---|
| Dielectric Constant | @ 10 GHz | 2.33 ± 0.02 | IPC-650 2.5.5.5 | |
| Dissipation Factor | @ 10 GHz | 0.0012 | IPC-650 2.5.5.5 | |
| Volume Resistivity | 1010 | Mohms/cm | IPC-650 2.5.17.1 (after elevated temp.) | |
| 1010 | Mohms/cm | IPC-650 2.5.17.1 (after humidity) | ||
| Surface Resistivity | 108 | Mohms | IPC-650 2.5.17.1 (after elevated temp.) | |
| 108 | Mohms | IPC-650 2.5.17.1 (after humidity) | ||
| Thermal Conductivity | 0.22 | W/M*K | ASTM F 433 | |
| CTE (25-260°C) | X | 26 | ppm/°C | ASTM D 3386 (TMA) |
| Y | 15 | ppm/°C | ||
| Z | 217 | ppm/°C | ||
| Peel Strength | 1/2 oz. ED copper | 1.96 (11) | N/mm (Ibs/in) | IPC-650 2.4.8 |
| 1 oz. CL1 copper | 2.86 (16) | N/mm (Ibs/in) | IPC-650 2.4.8 | |
| 1 oz. C1 copper | 3.04 (17) | N/mm (Ibs/in) | IPC-650 2.4.8 | |
| 2.32 (13) | N/mm (Ibs/in) | IPC-650 2.4.8 (at elevated temp.) | ||
| Flexural Strength | MD | 96.91 (14,057) | N/mm2 (psi) | IPC-650 2.4.4 |
| CD | 89.32 (12,955) | N/mm2 (psi) | IPC-650 2.4.4 | |
| Young's Modulus | MD | 9.65 X 103 (1.4 X 106) | N/mm2 (psi) | ASTM D 3039 / IPC-650 2.4.19 |
| Poisson's Ratio | MD | 0.21 | ASTM D 3039 / IPC-650 2.4.19 | |
| Density | Specific Gravity | 2.19 | g/cm3 | ASTM D 792 |
| Dimensional Stability | MD, 10 mil | -0.038 | mm/M (mils/in) | IPC-650 2.4.39 (avg. after bake & thermal stress) |
| CD, 10 mil | -0.038 | mm/M (mils/in) | IPC-650 2.4.39 | |
| Moisture Absorption | 0.02 | % | IPC-650 2.6.2.1 | |
| NASA Outgassing | TML | 0.01 | % | |
| CVCM | 0.01 | % | ||
| WVR | 0.01 | % | ||
| UL-94 Flammability Rating | V-0 | UL-94 |
Application Areas
Automotive Radar
Satellite/Cellular Communications
Power Amplifiers
LNBs, LNAs, LNCs
Aerospace
Avalable Configurations
Typical Thicknesses:
0.0035 inch / 0.09 mm
0.0050 inch / 0.13 mm
0.0075 inch / 0.19 mm
0.0100 inch / 0.25 mm
0.0200 inch / 0.51 mm
0.0300 inch / 0.76 mm
0.0600 inch / 1.52 mm
Available Sheet Sizes:
12 x 18 inch / 305 x 457 mm
16 x 18 inch / 406 x 457 mm
18 x 24 inch / 457 x 610 mm
16 x 36 inch / 406 x 914 mm
24 x 36 inch / 610 x 914 mm
18 x 48 inch / 457 x 1220 mm
All test data provided are typical values and not intended to be specification values. For review of critical specification tolerances, please contact a company representative directly.
TLY-3 can be manufactured in increments of 0.005" (0.125mm).
Standard panel size is 18" x 24" (457 mm x 610 mm).
Please contact AGC for availability of additional thicknesses, other sizes & any other type of cladding.
