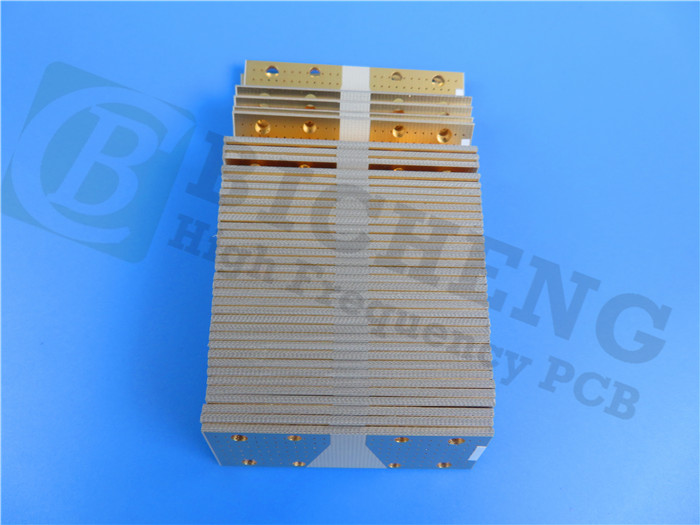

Rogers HF PCB Built on RT/Duroid 6002 120mil 3.048mm DK2.94 with Immersion Gold for Power Backplanes

(Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.)


Key Features:

Low Thermal Coefficient of Dielectric Constant: This characteristic remains stable from -55℃ to +150℃, providing essential electrical stability for designers of filters, oscillators, and delay lines in today's demanding applications.
Enhanced Reliability: The low Z-axis coefficient of thermal expansion (CTE) ensures the reliability of plated through holes. RT/Duroid 6002 has successfully undergone temperature cycling from -55℃ to 125℃ for over 5000 cycles without any via failures.
Dimensional Stability: Achieving an excellent dimensional stability of 0.2 to 0.5 mils/inch is possible by aligning the X and Y coefficients of expansion with copper, often eliminating the need for double etching to maintain tight positional tolerances.
Reduced Stress on Solder Joints: The low tensile modulus (X, Y) minimizes stress on solder joints, allowing the laminate's expansion to be constrained by a small amount of low CTE metal (6 ppm/℃), which further enhances surface mount reliability.


Applications

The unique properties of RT/Duroid 6002 make it particularly suitable for various applications, including:

1.Airborne radar systems
2.Beam forming networks
3.Commercial airline collision avoidance systems
4.Global positioning system antennas
5.Ground base systems
6.High-reliability complex multi-layer circuits
7.Phased array antennas
8.Power backplanes



Typical Applications:

The unique properties of RT/Duroid 6002 make it particularly suitable for various applications, including:

1.Airborne Radar Systems
2.Beam Forming Networks
3.Commercial Airline Collision Avoidance Systems
4.Global Positioning System (GPS) Antennas
5.Ground-Based Systems
6.High-Reliability Complex Multi-Layer Circuits
7.Phased Array Antennas
8.Power Backplanes


PCB Specifications

Click to expand/collapse the table

Rogers RT/Duroid 6002 120mil 3.048mm High Frequency PCB for Power Backplanes

PCB SIZE

95 x 79 mm=1PCS

BOARD TYPE

Double sided PCB

Number of Layers

2 layers

Surface Mount Components

YES

Through Hole Components

NO

LAYER STACKUP

copper ------- 18um(0.5 oz)+plate TOP layer

RT/duroid 6002 3.048mm

copper ------- 18um(0.5 oz)+plate BOT layer

TECHNOLOGY



Minimum Trace and Space:

6 mil / 7 mil

Minimum / Maximum Holes:

0.4 mm / 5.6 mm

Number of Different Holes:

3

Number of Drill Holes:

325

Number of Milled Slots:

0

Number of Internal Cutouts:

1

Impedance Control:

no

Number of Gold finger:

0

BOARD MATERIAL



Glass Epoxy:

RT/duroid 6002 3.048mm

Final foil external:

1 oz

Final foil internal:

1 oz

Final height of PCB:

3.1 mm ±0.3

PLATING AND COATING



Surface Finish

Immersion gold (37.1% ) 0.05µm over 3µm nickel

Solder Mask Apply To:

TOP and Bottom, 12micron Minimum

Solder Mask Color:

Green, PSR-2000GT600D, Taiyo Supplied.

Solder Mask Type:

LPSM

CONTOUR/CUTTING

Routing

MARKING



Side of Component Legend

TOP and Bottom.

Colour of Component Legend

White, IJR-4000 MW300, Taiyo brand

Manufacturer Name or Logo:

Marked on the board in a conductor and leged FREE AREA

VIA

Plated through hole(PTH), minimum size 0.3mm.

FLAMIBILITY RATING

UL 94-V0 Approval MIN.

DIMENSION TOLERANCE



Outline dimension:

0.0059"

Board plating:

0.0029"

Drill tolerance:

0.002"

TEST

100% Electrical Test prior shipment

TYPE OF ARTWORK TO BE SUPPLIED

email file, Gerber RS-274-X, PCBDOC etc

SERVICE AREA

Worldwide, Globally.



Data Sheet of Rogers 6002 (RT/Duroid 6002)

Click to expand/collapse the table

RT/duroid 6002 Typical Value

Property

RT/duroid 6002

Direction

Units

Condition

Test Method

Dielectric Constant,εProcess

2.94±0.04

Z



10 GHz/23℃

IPC-TM-650 2.5.5.5

Dielectric Constant,εDesign

2.94





8GHz to 40 GHz

Differential Phase Length Method

Dissipation Factor,tanδ

0.0012

Z



10 GHz/23℃

IPC-TM-650 2.5.5.5

Thermal Coefficient of ε

+12

Z

ppm/℃

10 GHz 0℃-100℃

IPC-TM-650 2.5.5.5

Volume Resistivity

106

Z

Mohm.cm

A

ASTM D 257

Surface Resistivity

107

Z

Mohm

A

ASTM D 257

Tensile Modulus

828(120)

X,Y

MPa(kpsi)

23℃

ASTM D 638

Ultimate Stress

6.9(1.0)

X,Y

MPa(kpsi)

Ultimate Strain

7.3

X,Y

%

Compressive Modulus

2482(360)

Z

MPa(kpsi)



ASTM D 638

Moisture Absorption

0.02



%

D48/50

IPC-TM-650 2.6.2.1
ASTM D 570

Thermal Conductivity

0.6



W/m/k

80℃

ASTM C518

Coefficient of Thermal Expansion
(-55 to 288℃)

16
16
24

X
Y
Z

ppm/℃

23℃/50% RH

IPC-TM-650 2.4.41

Td

500



℃ TGA



ASTM D 3850

Density

2.1



gm/cm3



ASTM D 792

Specific Heat

0.93(0.22)



j/g/k
(BTU/ib/OF)



Calculated

Copper Peel

8.9(1.6)



Ibs/in.(N/mm)



IPC-TM-650 2.4.8

Flammability

V-0







UL 94

Lead-free Process Compatible

Yes
