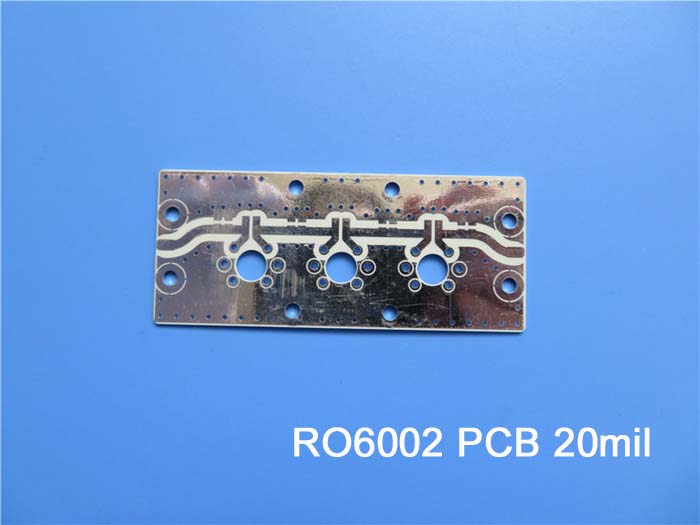

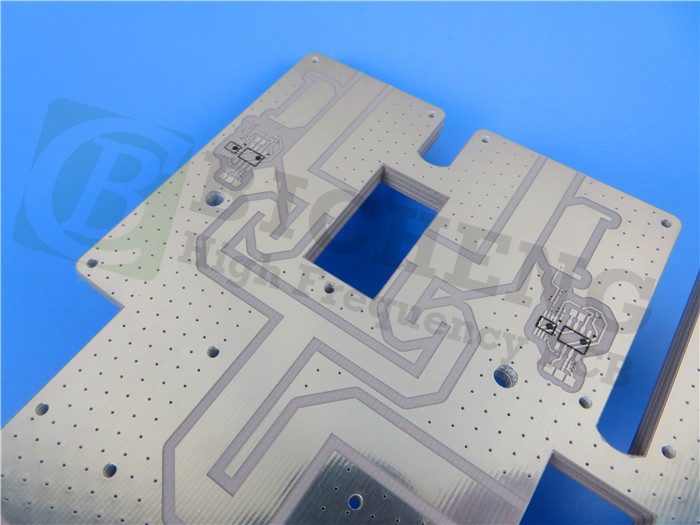

Rogers PCB Built on RT/duroid 6002 20mil (0.508mm) DK2.94 with HASL Lead Free for Ground-Based and Airborne Radar Systems

Note: Printed Circuit Boards (PCBs) are custom-made products. The images and specifications provided are for reference only.


Introduction to Rogers RT/duroid 6002

Rogers RT/duroid 6002 is a microwave material known for its low loss and low dielectric constant. This laminate provides exceptional electrical and mechanical properties essential for designing intricate microwave structures that are both mechanically robust and electrically stable.


Key Features:


*Thermal Coefficient of Dielectric Constant: The thermal coefficient of dielectric constant is remarkably low, ranging from -55℃ to +150℃. This characteristic is crucial for designers of filters, oscillators, and delay lines, ensuring the electrical stability required in today’s demanding applications.
*Low Z-Axis Coefficient of Thermal Expansion (CTE): A low CTE guarantees outstanding reliability of plated through holes. RT/duroid 6002 materials have successfully undergone over 5000 temperature cycles (-55℃ to 125℃) without experiencing a single via failure.
*Dimensional Stability: Excellent dimensional stability (0.2 to 0.5 mils/inch) is achieved by aligning the X and Y coefficients of expansion with copper. This alignment often eliminates the need for double etching, thereby achieving tight positional tolerances.
*Reduced Stress on Solder Joints: The low tensile modulus in both X and Y directions significantly minimizes the stress on solder joints. It allows the laminate's expansion to be constrained by a minimal amount of low CTE metal (6 ppm/℃), enhancing surface mount reliability.


Ideal Applications:

RT/duroid 6002 material is particularly suited for a variety of applications, including:

1.Airborne radar systems
2.Beam forming networks
3.Commercial airline collision avoidance systems
4.Global positioning system antennas
5.Ground-based systems
6.High-reliability complex multi-layer circuits
7.Phased array antennas
8.Power backplanes



PCB Specifications:

Click to expand/collapse the table

Rogers RT/duroid 6002 20mil 0.508mm High Frequency PCB for Ground Based and Airborne Radar Systems

PCB SIZE

79 x 21 mm=1PCS

BOARD TYPE

Double sided PCB

Number of Layers

2 layers

Surface Mount Components

YES

Through Hole Components

NO

LAYER STACKUP

copper ------- 18um(0.5 oz)+plate TOP layer

RT/duroid 6002 0.508mm

copper ------- 18um(0.5 oz)+plate BOT layer

TECHNOLOGY



Minimum Trace and Space:

10 mil / 10 mil

Minimum / Maximum Holes:

0.4 mm / 2.2mm

Number of Different Holes:

1

Number of Drill Holes:

1

Number of Milled Slots:

0

Number of Internal Cutouts:

0

Impedance Control:

no

Number of Gold finger:

0

BOARD MATERIAL



Glass Epoxy:

RT/duroid 6002 0.508mm

Final foil external:

1 oz

Final foil internal:

1 oz

Final height of PCB:

0.6 mm ±0.06

PLATING AND COATING



Surface Finish

HASL Lead free

Solder Mask Apply To:

NO

Solder Mask Color:

NO

Solder Mask Type:

NO

CONTOUR/CUTTING

Routing

MARKING



Side of Component Legend

N/A

Colour of Component Legend

N/A

Manufacturer Name or Logo:

N/A

VIA

Plated through hole(PTH), minimum size 0.4mm.

FLAMIBILITY RATING

UL 94-V0 Approval MIN.

DIMENSION TOLERANCE



Outline dimension:

0.0059"

Board plating:

0.0029"

Drill tolerance:

0.002"

TEST

100% Electrical Test prior shipment

TYPE OF ARTWORK TO BE SUPPLIED

email file, Gerber RS-274-X, PCBDOC etc

SERVICE AREA

Worldwide, Globally.



Data Sheet of Rogers 6002 (RT/duroid 6002)

Click to expand/collapse the table

RT/duroid 6002 Typical Value

Property

RT/duroid 6002

Direction

Units

Condition

Test Method

Dielectric Constant,εProcess

2.94±0.04

Z



10 GHz/23℃

IPC-TM-650 2.5.5.5

Dielectric Constant,εDesign

2.94





8GHz to 40 GHz

Differential Phase Length Method

Dissipation Factor,tanδ

0.0012

Z



10 GHz/23℃

IPC-TM-650 2.5.5.5

Thermal Coefficient of ε

+12

Z

ppm/℃

10 GHz 0℃-100℃

IPC-TM-650 2.5.5.5

Volume Resistivity

106

Z

Mohm.cm

A

ASTM D 257

Surface Resistivity

107

Z

Mohm

A

ASTM D 257

Tensile Modulus

828(120)

X,Y

MPa(kpsi)

23℃

ASTM D 638

Ultimate Stress

6.9(1.0)

X,Y

MPa(kpsi)

Ultimate Strain

7.3

X,Y

%

Compressive Modulus

2482(360)

Z

MPa(kpsi)



ASTM D 638

Moisture Absorption

0.02



%

D48/50

IPC-TM-650 2.6.2.1
ASTM D 570

Thermal Conductivity

0.6



W/m/k

80℃

ASTM C518

Coefficient of Thermal Expansion
(-55 to 288℃)

16
16
24

X
Y
Z

ppm/℃

23℃/50% RH

IPC-TM-650 2.4.41

Td

500



℃ TGA



ASTM D 3850

Density

2.1



gm/cm3



ASTM D 792

Specific Heat

0.93(0.22)



j/g/k
(BTU/ib/OF)



Calculated

Copper Peel

8.9(1.6)



Ibs/in.(N/mm)



IPC-TM-650 2.4.8

Flammability

V-0







UL 94

Lead-free Process Compatible

Yes
