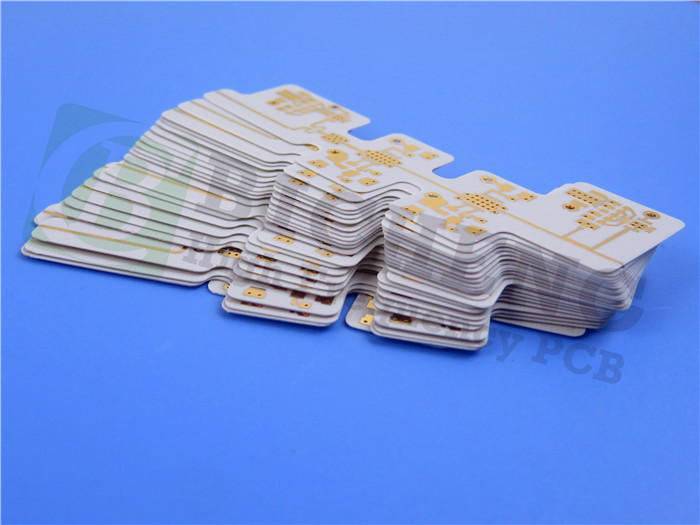

Rogers RO4830 High-Frequency PCB: Low Profile Copper for Thermoset Circuit Boards
(Note: Printed Circuit Boards are custom-made products. Images and parameters are for reference only.)
Introduction
The Rogers RO4830 high-frequency laminates represent a thermoset material that provides a reliable and economical alternative to conventional PTFE-based laminates. These laminates are particularly optimized for millimeter wave applications where cost efficiency is crucial, such as automotive radar sensors operating in the 76-81 GHz range. RO4830 can be manufactured using standard FR-4 processes and is designed to serve as the cap layer in multi-layer FR-4 board designs commonly used in automotive radar sensor PCBs.
In comparison to PTFE-woven glass laminates, RO4830 exhibits a slightly higher dielectric constant of 3.2 at 77 GHz. The use of low-profile reverse-treated copper foil cladding enhances the insertion loss performance, achieving an impressive 2.2 dB per inch at 77 GHz. The laminates feature a flat woven e-glass and a filler with smaller, more uniform particle sizes, which contribute to excellent laser drilling capabilities. Additionally, RO4830 laminates incorporate an advanced anti-oxidant package that provides exceptional resistance to oxidation, outperforming other hydrocarbon-based laminate materials. They also hold a UL 94 V-0 flame retardant rating and are compatible with lead-free solder processes.
Key Features
1.Dielectric Constant: 3.24
2.Excellent Insertion Loss: 2.2 dB/in at 77 GHz
3.UL 94 V-0 Flame Retardant Rating
4.Optimized Filler, Resin, and Glass Composite System
5.Reverse Treated Smooth Low Profile Copper Foil
.jpg)
Benefits
1.Remarkable Resistance to Oxidation
2.Consistent Within-Sheet Dielectric Constant: Ensuring reliable laser drilling performance
3.Cost-Effective: Lower overall costs compared to PTFE laminate options, reducing PCB manufacturing expenses
4.Ideal for Automotive Radar Sensor Applications
Our PCB Capability (RO4830)
| PCB Capability (RO4830) | |
| PCB Material: | Hydrocarbon/ Ceramic/ Spread Woven Glass |
| Designation: | RO4830 |
| Dielectric constant: | 3.24 |
| Dissipation factor | 0.0033-0.0032 |
| Layer count: | Single Sided, Double Sided, Multi-layer PCB, Hybrid PCB |
| Copper weight: | 1oz (35µm), 2oz (70µm) |
| Dielectric thickness | 5mil (0.127mm), 9.4mil (0.239mm) |
| PCB size: | ≤400mm X 500mm |
| Solder mask: | Green, Black, Blue, Yellow, Red etc. |
| Surface finish: | Immersion gold, HASL, Immersion silver, Immersion tin, ENEPIG, OSP, Bare copper, Pure gold etc.. |
Typical Applications
76-81 GHz Automotive Radar Sensors
RO4830 Data Sheet
| Property | Typical Values [1] RO4830(TM) |
Units | Condition | Test Method | ||
| Dielectric Thickness | ||||||
| 0.005” | 0.0095” | |||||
| Dielectric Constant, εr Design | 3.24 | 3.24 | - | 77 GHz | microstrip differential phase length | |
| Transmission Line Loss | 2.2 | 1.8 | dB/in | 77 GHz | microstrip differential phase length | |
| Dissipation Factor, tan δ | 0.0033 | 0.0032 | - | 10 GHz | split-post dielctric resonator | |
| Thermal Coefficient of εr (z direction) | -30 | -30 | ppm/°C | -50°C to 150°C | IPC-TM-650 2.5.5.5 | |
| Dielectric Strength | 78.7 | 59.1 | kV/mm | 48 hrs @ 50°C | IPC-TM-650, 2.5.6.2 | |
| 2000 | 1500 | V/mil | ||||
| Water Absorption | 0.15 | 0.13 | % | D-48/50 | ASTM D570 | |
| Peel Strength after Thermal Stress | 0.67 | 0.67 | N/mm | 18 micron reverse treated EDfoil |
IPC-TM-650 2.4.8 | |
| 3.8 | 3.8 | lbs/in | ||||
| Flammability Rating | V-0 | V-0 | - | C-48/23/50 | UL94 | |
| Dimensional Stability |
MD | -1.8 (-1.8) |
-1.5 (-1.5) | mm/m (mils/in) | 4 hrs @ 105°C | IPC-TM-650 2.4.39A |
| CMD | -1.8 (-1.8) |
-1.6 (-1.6) | ||||
| Decomposition Temperature | 408 | 412 | °C | - | ASTM D3850 | |
| Time to Delamination (T288) | >30 | >30 | minutes | with Cu | IPC-TM-650, 2.4.24.1 | |
| Lead-Free Process Capable | YES | YES | - | - | - | |
| Thermal Conductivity (calculated) | 0.45 | 0.47 | W/mK | 50°C | Through-plane calculation with series mixing rule |
|
| CTE | x,y | 23 | 21 | ppm/°C | 0 to 150°C | IPC-TM-650 2.4.41 |
| z | 110 | 83 | ||||
