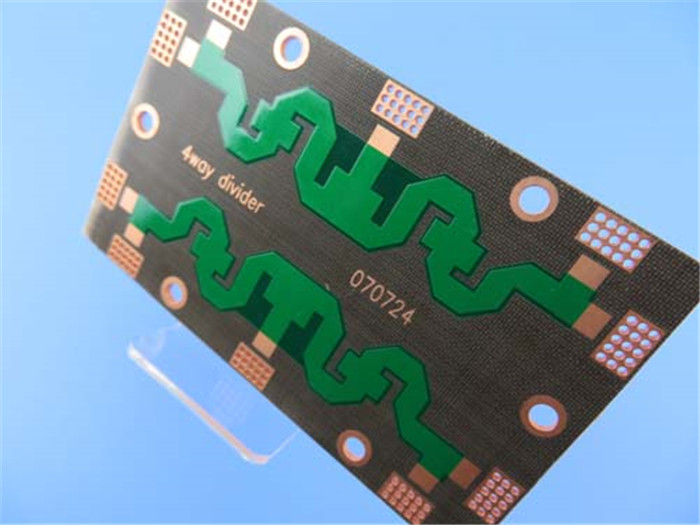

F4BME265 High Frequency PCB DK2.65 PTFE Double-Sided with OSP and Green Mask
(Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.)
Brief Introduction
The PCB we are discussing today measures 89mm x 61mm and contains a single piece per panel. This is a double-sided PCB, featuring two conductive layers for circuitry. It does not include any surface mount components; instead, it is equipped with through-hole components. The layer stack comprises copper layers with a finished thickness of 35µm (equivalent to 1oz). Sandwiched in between is F4BME265 material, which has a thickness of 1.5mm, followed by another copper layer of the same 35µm (1oz) thickness on the opposite side after plating.
PCB Specifications
| F4BME265 High Frequency PCB DK2.65 PTFE Double Sided With OSP and Green Mask | |
|---|---|
| PCB SIZE | 89 x 61mm = 1PCS |
| BOARD TYPE | Microwave PCB |
| Number of Layers | Double sided PCB |
| Surface Mount Components | NO |
| Through Hole Components | YES |
| LAYER STACKUP | copper - 18um(0.5oz)+PLATE |
| F4BME265 1.524mm | |
| copper - 18um(0.5oz)+PLATE | |
| Minimum Trace and Space: | 6mil/9mil |
| Minimum / Maximum Holes: | 0.9/2.3mm |
| Number of Drill Holes: | 156 |
| Surface Finish | OSP, Thickness >0.2µm |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Final height of PCB: | 1.6 mm ±0.16 |
| TEST | 100% Electrical Test prior shipment |
| SERVICE AREA | Worldwide, Globally |
.jpg)
F4BME High Frequency Laminates
F4BME series laminates are produced through a precise formulation and strict pressing of fiberglass cloth, polytetrafluoroethylene resin, and polytetrafluoroethylene film. Compared to F4B, these laminates demonstrate enhanced electrical performance, characterized by a broader range of dielectric constants, reduced dielectric loss, improved insulation resistance, and increased stability.
Product Features
Customizable DK: Options range from DK2.17 to 3.0.
Low Loss: Designed for efficient performance
Excellent PIM Index: F4BME with RTF copper foil achieves outstanding performance metrics.
Diverse Sizes & Cost Efficiency
Irradiation Resistance & Low Emissions
Commercial Viability: Suitable for mass production
Typical Applications
Microwave, RF, radar technologies
Phase shifters and passive components
Power dividers, couplers, and combiners
Feed networks and phased array antennas
Satellite communications and base station antennas
