Hybrid 10-Layer PCB RO4350B 6.6mil + FR-4 with Red Solder Mask and Immersion Gold
(Printed circuit boards are custom-made products; the images and parameters shown are for reference only.)
Introduction
Hello Everyone,
Good day!
Today, we're discussing a type of 10-layer hybrid PCB constructed from RO4350B and FR-4, specifically designed for high-gain applications.
The design of this board is straightforward, featuring only through holes that connect each layer. The finished height is 1.7 mm, with pads and holes plated in immersion gold. The surface is coated with a red solder mask. This PCB is fabricated according to IPC 6012 Class 2 standards using the provided Gerber data. Each shipment contains 20 boards.
Applications
This hybrid PCB is suitable for various applications, including:
Preamplifiers
WiFi amplifiers
Relay stations
RF transceivers
Our Advantage
1.Focus on Core Competencies: We enable you to concentrate on research and development, sales, and marketing.
2.Production Capability: Our facility spans 30,000 square meters, ensuring efficient manufacturing.
3.Comprehensive PCB Solutions: We meet your needs from prototype development to mass production.
4.Timely Deliveries: Our commitment to quick and on-time delivery enhances your project timelines.
5.Certified Quality: Our factory is certified to IATF 16949 (2016), ISO 14001 (2015), ISO 9001 (2015), and UL standards.
Thank you for reading! We welcome your inquiries regarding RF PCBs.
Parameter and Data Sheet
| PCB SIZE | 210 x 85mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 10 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |

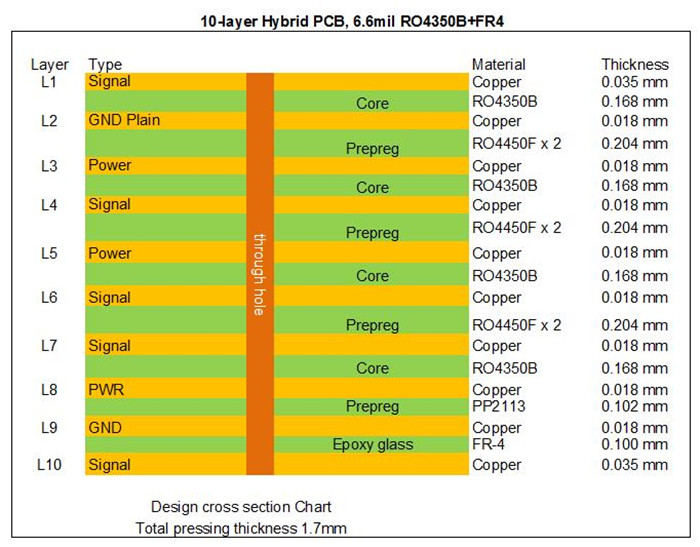

| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4350B core 0.168mm | |
| copper ------- 18um(0.5oz) MidLayer 1 | |
| RO4450F Prepreg (2x0.1) 0.2mm | |
| copper ------- 18um(0.5oz) MidLayer 2 | |
| RO4350B core 0.168mm | |
| copper ------- 18um(0.5oz) MidLayer 3 | |
| RO4450F Prepreg (2x0.1) 0.2mm | |
| copper ------- 18um(0.5oz) MidLayer 4 | |
| RO4350B core 0.168mm | |
| copper ------- 18um(0.5oz) MidLayer 5 | |
| RO4450F Prepreg (2x0.1) 0.2mm | |
| copper ------- 18um(0.5oz) MidLayer 6 | |
| RO4350B core 0.168mm | |
| copper ------- 18um(0.5oz) MidLayer 7 | |
| FR-4 pregpreg 0.1mm | |
| copper ------- 18um(1oz) MidLayer 8 | |
| FR-4 core 0.1mm | |
| copper ------- 35um(1oz)+plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.9mil/5.9mil |
| Minimum / Maximum Holes: | 0.3mm/3.8mm |
| Number of Different Holes: | 16 |
| Number of Drill Holes: | 11385 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B, RO4450B mixed with FR-4 TG>135 |
| Final foil external: | 1.5oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.7mm ±0.17 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (17.7%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum. |
| Solder Mask Color: | Red |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
