Hybrid High Frequency PCB 6-Layer Mixed PCB on 20mil RO4350B and FR-4 with Blind Via

(Printed circuit boards are custom-made products; the images and parameters shown are for reference only)

Introduction

Hello Everyone,
Good day!

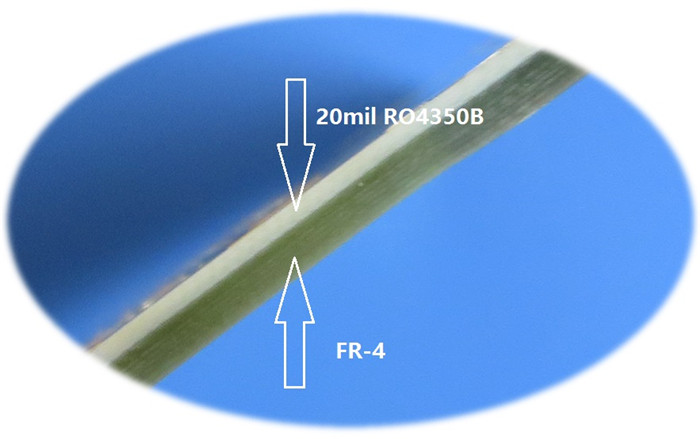

Today, we will discuss a 6-layer hybrid PCB constructed with 20mil RO4350B and FR-4. This article will introduce two specific boards.

Board Overview

First Board: Satellite Receiver Application

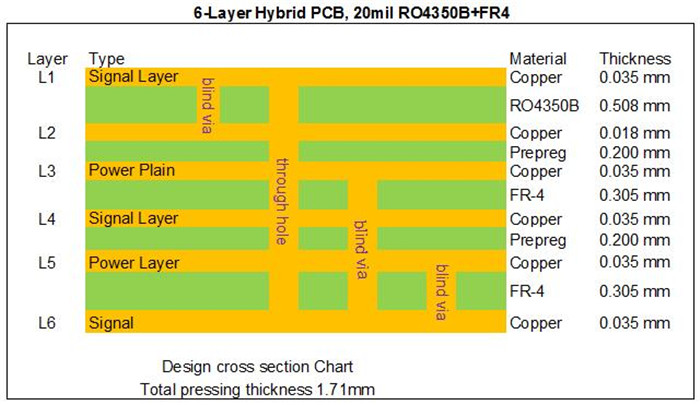

The first board is designed for a satellite receiver. It features one RO4350B core on the top layer. The stack-up is somewhat complex due to the inclusion of three types of blind vias. This board has a thickness of 1.71 mm, with white silkscreen over a green solder mask on both sides. Immersion gold is applied to the pads and tracks. Each board is supplied as a single unit and is fabricated according to IPC 6012 Class 2 standards using provided Gerber data. A total of 25 boards are packed for shipment.

Second Board: Signal Booster Application

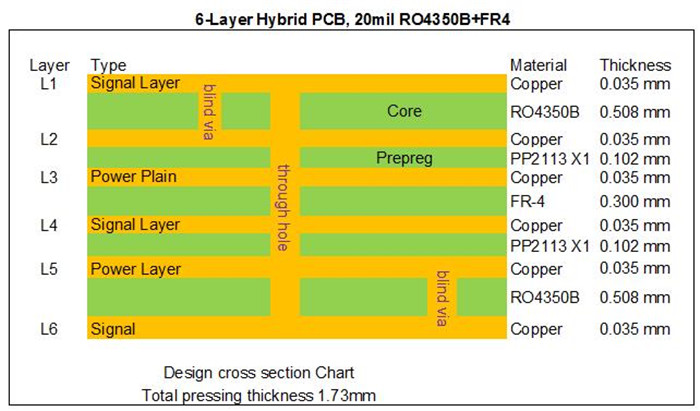

The second board is utilized in a signal booster and incorporates two cores of 20mil RO4350B on the top and bottom sides. The stack-up is displayed below.

Specifications:

Specification	Details
Base Material	RO4350B 20mil + FR4
Layer Count	6 layers - Blind Via
Types	L1-L2, L5-L6
Format	100mm x 120mm (1 type = 1 piece)
Surface Finish	Immersion gold
Copper Weight	Outer layer 35 μm Inner layer 35 μm
Solder Mask / Legend	Green / White
Final PCB Height	1.8 mm
Standard	IPC 6012 Class 2
Packing	20 panels per shipment
Lead Time	20 working days
Shelf Life	6 months

Advantages of RO4350B Hybrid PCBs:

1.Stable Dielectric Constant: RO4350B provides a stable dielectric constant across a wide frequency range.
2.Enhanced Signal Integrity: Improved performance compared to all-FR4 stack-ups.
3.Cost Efficiency: Reduced costs over stack-ups using all low-loss materials.
4.High Production Capacity: Capable of producing 8,000 types of PCBs monthly.
5.Certified Manufacturing: Our facility is ISO9001, ISO14001, IATF16949, and UL certified.
6.Flexible Orders: No minimum order quantity (MOQ), with low costs for prototypes and small production runs.

Applications

The applications for RO4350B hybrid PCBs are diverse, including: Low Noise Amplifiers (LNA), Radar Data Acquisition Converters, Spread Spectrum Devices, 4G Antennas, Transmitters, RF Switches, Splitter Modules.

Thank you for reading. Feel free to contact us for your RF PCB inquiries.
