Hybrid PCB on Rogers RO4350B and High Tg FR-4 4-Layer Mixed PCB on 4mil RO4350B and 0.3mm FR-4

(PCBs are custom-made products; the images and parameters shown are for reference only)

Introduction

Hello Everyone,
Today, we will discuss a type of 4-layer high-frequency PCB constructed from 4mil RO4350B and high Tg FR-4 materials.

This PCB is designed as a 4-layer structure, making it relatively simple and cost-effective, which is beneficial for entering new markets.

Let's Explore the Build-Up

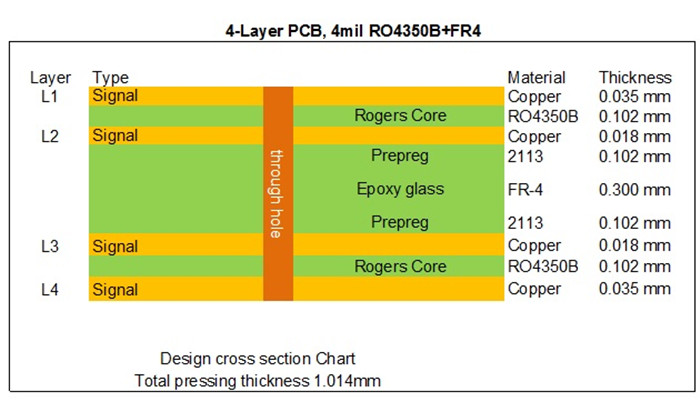

The first and second layers, as well as the third and fourth layers, consist of 4mil (0.102mm) RO4350B cores. This fixed thickness is crucial for maintaining the electrical length of the RF lines on the circuit board. The dielectric material in the middle is FR-4 epoxy glass, which bonds the cores on both the top and bottom sides. The inner layer copper weight is 0.5 ounces, while the outer layer is 1 ounce.

Detailed Specifications

Base Material	RO4350B 0.102mm + Tg 170°C FR-4 0.30mm
Layer Count	4 layers
Panel Size	55mm x 132mm = 1 type = 1 piece
Surface Finish	Immersion gold
Copper Weight	Outer layer 35 μm / Inner layer 18 μm
Solder Mask / Legend	Green / White
Final PCB Height	1.0 mm
Special Technology	Via in pad (hole filled) under BGA
Standard	IPC 6012 Class 2
Packing	25 panels are packed for shipment
Lead Time	12 working days
Shelf Life	6 months

Applications

The applications for RO4350B hybrid PCBs are diverse, including:

Preamplifiers, Radar sensors, Digital transmitters, Splitter modules, GPS antennas, Communication relays, Analog transmitters, 4G antennas, RF transmitters, Wi-Fi amplifiers, RFID systems, Attenuators

Advantages of RO4350B Hybrid PCBs

1) Stable Dielectric Constant: RO4350B maintains a consistent dielectric constant across a broad frequency range, making it ideal for broadband applications.
2) Improved Signal Integrity: Enhances performance compared to all-FR4 stack-ups.
3) Cost Efficiency: Reduces costs compared to stack-ups made entirely of low-loss materials.
4) Minimized Signal Loss: Effective at high frequencies.
5) Robust Capabilities: We meet your PCB requirements from prototypes to mass production, backed by certifications including IATF 16949 (2016), ISO 14001 (2015), ISO 9001 (2015), and UL certification for quality assurance.

Thank you for reading! Feel free to contact us for any inquiries regarding RF PCBs.
