Hybrid PCB Built on 8mil (0.203mm) RO4003C and 0.2mm FR-4 Multilayer High Frequency PCB Combining RO4003C and FR-4

(PCBs are custom-made products, the picture and parameters shown are just for reference)

Introduction

Hello Everyone,
Warm greetings!

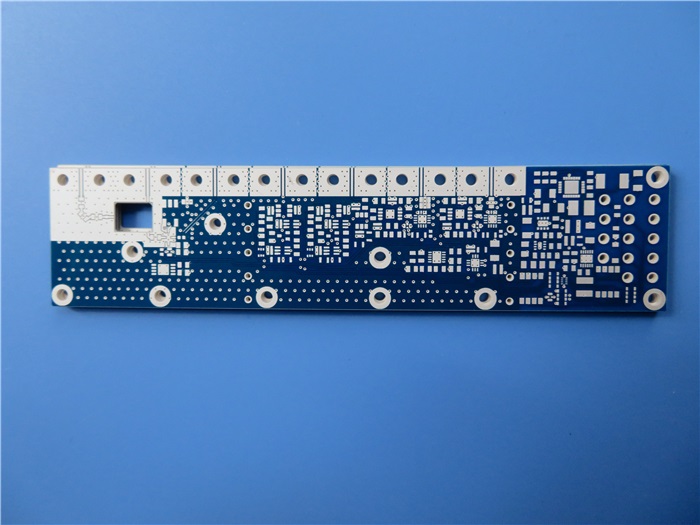

Today, we will discuss a 4-layer hybrid PCB that combines 8mil (0.203mm) RO4003C and FR-4, designed specifically for attenuator applications. This PCB has a thickness of 1.1 mm and features a blue solder mask with immersion silver plating on the pads, along with 1oz copper on each layer. Overall, it represents a straightforward multilayer PCB with a hybrid structure. These boards are manufactured according to IPC 6012 Class 2 standards using the provided Gerber data. Each board undergoes 100% electrical testing prior to delivery, with 25 boards packed for shipment.

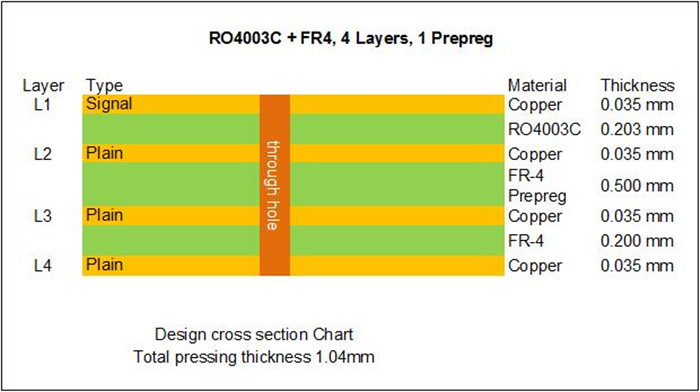

Let's look the stack-up:

The stack-up consists of layers from 1 to 2 made of the fixed thickness RO4003C core (8mil), which is crucial for maintaining the electrical length of RF lines on the circuit board. The remaining layers utilize FR-4 materials, and all boards feature through holes.

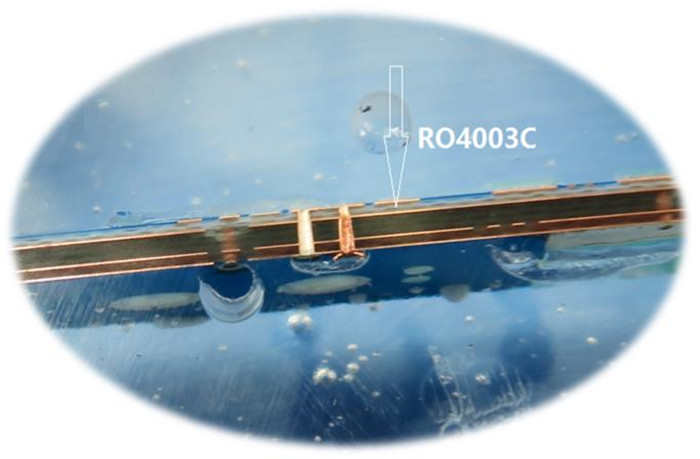

Below is a micro-section drawing:

Features and Benefits

1.Stable Dielectric Constant: RO4003C provides a consistent dielectric constant across a wide frequency range, making it an ideal substrate for broadband applications.
2.Improved Signal Integrity: This hybrid stack-up enhances signal integrity compared to traditional all-FR-4 constructions.
3.Certifications: Our manufacturing processes are ISO9001, ISO14001, IATF16949, ISO13485, and UL certified.
4.Comprehensive Testing: We conduct thermal stress, reliability, insulation resistance, ionic contamination, and AOI tests to ensure quality.
5.No Minimum Order Quantity (MOQ): We accommodate both small and large orders without minimum requirements.
6.Extensive Experience: With over 19 years in high-frequency PCB manufacturing, we bring expertise to your projects.
7.Production Capabilities: Our workshop spans 16,000㎡, with a monthly output capability of 30,000㎡ and the ability to produce 8,000 different PCB types monthly.
8.Support for R&D: Our robust PCB capabilities enhance your research and development, sales, and marketing efforts.

Applications

RF Transceiver, Power Divider, LNB Attenuator, Directional Coupler, Photocoupler

Parameter and Data Sheet
